RIEGLER Needle valve, Brass, with fine control, G 1/2 IT, DN 4
Type number: 210.82
EAN: 4047322034333
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Needle valve, brass, with fine adjustment, operating temperature -30 °C to 110 °C, G 1/2 IG, DN 4, SW 27, PN max. 40 bar
| Sealing material | NBR |
| Max. operating pressure | 40 bar |
| Material | Brass |
| Handwheel | Plastic |
| Spindle | with fine adjustment |
| Operating temperature min. | -30 °C |
| Operating temperature max. | 110 °C |
| Thread | G 1/2 IG |
| DN | 4 |
| SW | 27 mm |

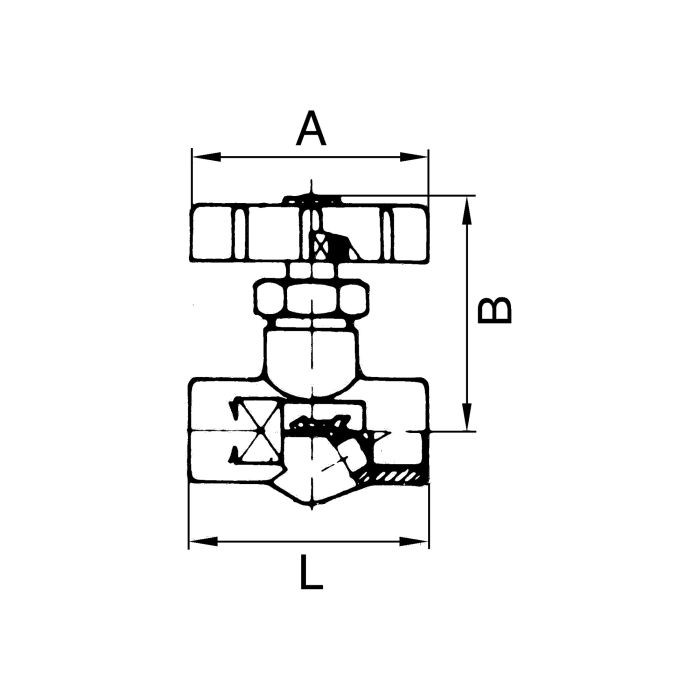

| A | 48 mm |
| B | 56 mm |
| L | 64 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
