RIEGLER Bushing - blocking valve, Brass, G 3/4, DN 20
Type number: 250.52
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Socket shut-off valve made of brass, for industrial systems, max. 10 bar - Type 250.52
The RIEGLER socket shut-off valve, brass, G 3/4, DN 20 regulates or shuts off the flow of media in industrial pipelines. The housing is made of brass with NBR seals. Designed for a maximum operating pressure of 10 bar. The operating temperature is between -10 °C and 80 °C. Connection thread G 3/4 - suitable for common industrial standards. Reliable media control.
Field of application
Typical areas of application: Compressed air, gases and liquids.
| Housing | Brass |
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Area of application | non-aggressive liquids and vapors up to 90 °C |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 80 °C |
| Upper part | Brass |
| Thread | G 3/4 |
| DN | 20 |
| A | 55.5 mm |
| B | 78 mm |
| L | 54.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103793] RIEGLER Bushing - blocking valve, Brass, G 1 1/2, DN 40](/web/image/product.template/171754/image_128/%5B103793%5D%20RIEGLER%20Bushing%20-%20blocking%20valve%2C%20Brass%2C%20G%201%201-2%2C%20DN%2040?unique=929d8e7)
|
Type number: 250.55 |
69.02 € | |
![[103792] RIEGLER Bushing - blocking valve, Brass, G 1 1/4, DN 32](/web/image/product.template/171753/image_128/%5B103792%5D%20RIEGLER%20Bushing%20-%20blocking%20valve%2C%20Brass%2C%20G%201%201-4%2C%20DN%2032?unique=0e1588b)
|
Type number: 250.54 |
50.94 € | |

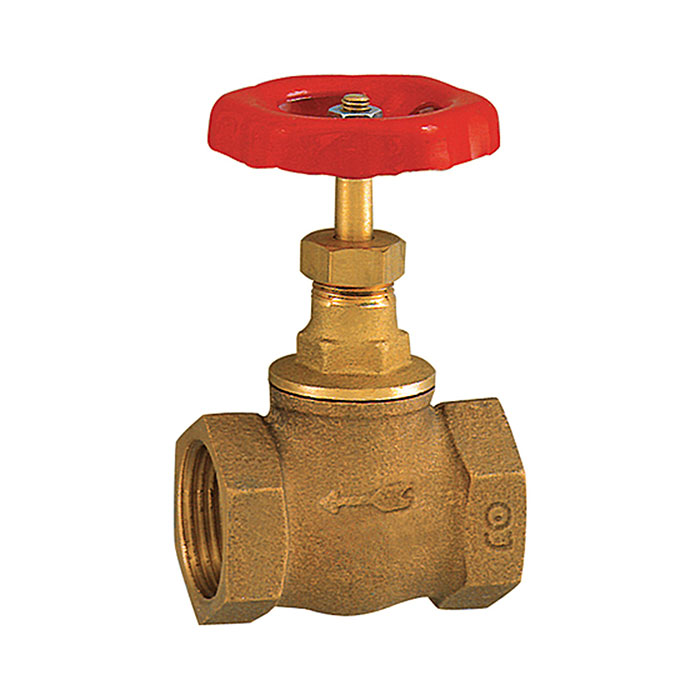

![[103789] RIEGLER Bushing - blocking valve, Brass, G 1/2, DN 15](/web/image/product.template/171750/image_128/%5B103789%5D%20RIEGLER%20Bushing%20-%20blocking%20valve%2C%20Brass%2C%20G%201-2%2C%20DN%2015?unique=8da5ee5)
|
