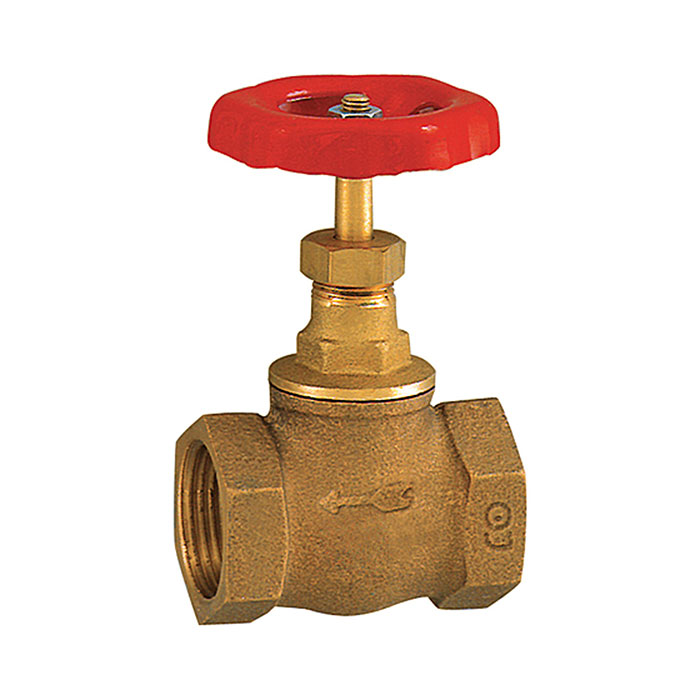

RIEGLER Bushing - blocking valve, Brass, G 1, DN 25
Type number: 250.53
EAN: 4047322063159
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Socket shut-off valve, brass, max. medium temperature 90 °C, G 1, DN 25, PN max. 10 bar
| Housing | Brass |
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Area of application | non-aggressive liquids and vapors up to 90 °C |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 80 °C |
| Upper part | Brass |
| Thread | G 1 |
| DN | 25 |
| A | 55.5 mm |
| B | 82 mm |
| L | 61 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
