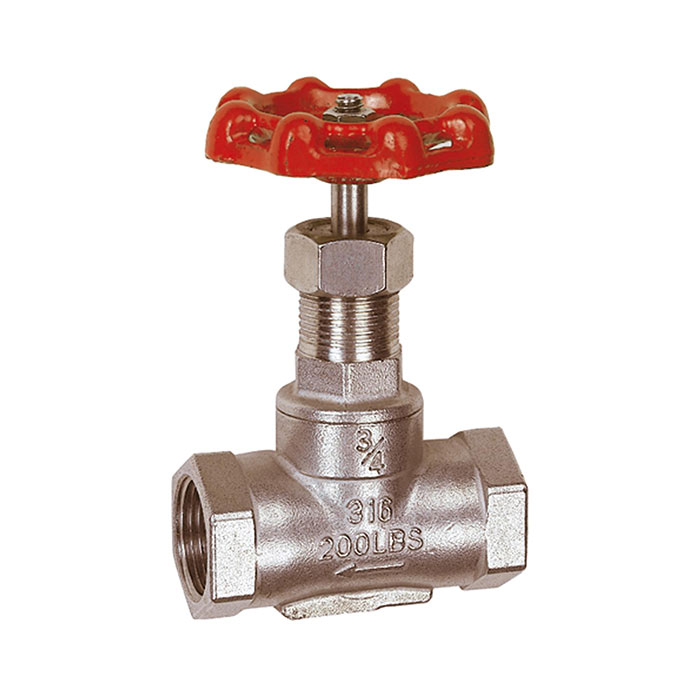

RIEGLER Bushing - blocking valve, Stainless steel 1.4401/1.4408, G 1/2
Type number: 250.51 ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Socket shut-off valve made of stainless steel 1.4401 / 1.4408, for industrial systems, max. 14 bar - Type 250.51 ES
The RIEGLER sleeve shut-off valve, stainless steel 1.4401/1.4408, G 1/2, DN 15 regulates or shuts off the flow of media in industrial pipelines. The housing is made of stainless steel 1.4401 / 1.4408 with PTFE seals. Designed for a maximum operating pressure of 14 bar. The operating temperature is between -10 °C and 180 °C. G 1/2 connection thread - suitable for common industry standards. Reliable media control.
Field of application
Typical areas of application: Compressed air, gases and liquids.
| Housing | Stainless steel 1.4401 / 1.4408 |
| Sealing material | PTFE |
| Max. operating pressure | 14 bar |
| Medium temperature max. | 160 °C |
| Ambient temperature max. | 160 °C |
| Interior parts | Stainless steel 1.4401 / 1.4408 |
| Handwheel | Aluminum |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 180 °C |
| Thread | G 1/2 |
| DN | 15 |
| A | 70 mm |
| L | 52 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| B min. | 89 mm |
| B max. | 99 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103798] RIEGLER Bushing - blocking valve, Stainless steel 1.4401/1.4408, G 1](/web/image/product.template/171759/image_128/%5B103798%5D%20RIEGLER%20Bushing%20-%20blocking%20valve%2C%20Stainless%20steel%201.4401-1.4408%2C%20G%201?unique=7d26d74)
|
Type number: 250.53 ES |
88.93 € | |
![[103800] RIEGLER Bushing - blocking valve, Stainless steel 1.4401/1.4408, G 1 1/2](/web/image/product.template/171761/image_128/%5B103800%5D%20RIEGLER%20Bushing%20-%20blocking%20valve%2C%20Stainless%20steel%201.4401-1.4408%2C%20G%201%201-2?unique=33f251a)
|
Type number: 250.55 ES |
180.04 € | |
![[103799] RIEGLER Bushing - blocking valve, Stainless steel 1.4401/1.4408, G 1 1/4](/web/image/product.template/171760/image_128/%5B103799%5D%20RIEGLER%20Bushing%20-%20blocking%20valve%2C%20Stainless%20steel%201.4401-1.4408%2C%20G%201%201-4?unique=2b0d6f3)
|
Type number: 250.54 ES |
122.62 € | |
![[103801] RIEGLER Bushing - blocking valve, Stainless steel 1.4401/1.4408, G 2](/web/image/product.template/171762/image_128/%5B103801%5D%20RIEGLER%20Bushing%20-%20blocking%20valve%2C%20Stainless%20steel%201.4401-1.4408%2C%20G%202?unique=08bd543)
|
Type number: 250.56 ES |
231.80 € | |
![[103797] RIEGLER Bushing - blocking valve, Stainless steel 1.4401/1.4408, G 3/4](/web/image/product.template/171758/image_128/%5B103797%5D%20RIEGLER%20Bushing%20-%20blocking%20valve%2C%20Stainless%20steel%201.4401-1.4408%2C%20G%203-4?unique=016c628)
|
Type number: 250.52 ES |
73.46 € | |
![[103795] RIEGLER Bushing - blocking valve, Stainless steel 1.4401/1.4408, G 3/8](/web/image/product.template/171756/image_128/%5B103795%5D%20RIEGLER%20Bushing%20-%20blocking%20valve%2C%20Stainless%20steel%201.4401-1.4408%2C%20G%203-8?unique=e8ba63a)
|
Type number: 250.50 ES |
55.89 € | |
