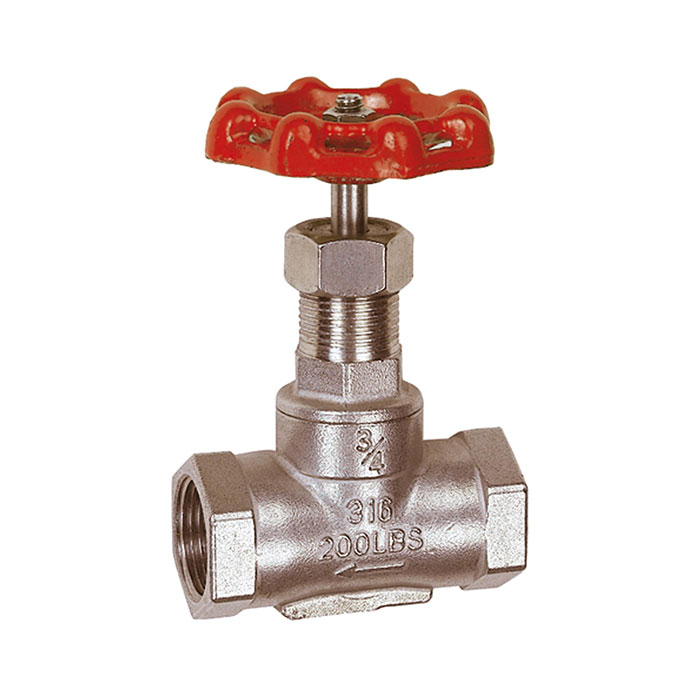

RIEGLER Bushing - blocking valve, Stainless steel 1.4401/1.4408, G 1 1/4
Type number: 250.54 ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Socket shut-off valve, stainless steel 1.4401/1.4408, max. medium temperature 120 °C, G 1 1/4, DN 32, PN max. 14 bar
| Housing | Stainless steel 1.4401 / 1.4408 |
| Sealing material | PTFE |
| Max. operating pressure | 14 bar |
| Medium temperature max. | 160 °C |
| Ambient temperature max. | 160 °C |
| Interior parts | Stainless steel 1.4401 / 1.4408 |
| Handwheel | Aluminum |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 180 °C |
| Thread | G 1 1/4 |
| DN | 32 |
| A | 90 mm |
| L | 86 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| B min. | 130 mm |
| B max. | 150 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103798] RIEGLER Bushing - blocking valve, Stainless steel 1.4401/1.4408, G 1](/web/image/product.template/171759/image_128/%5B103798%5D%20RIEGLER%20Bushing%20-%20blocking%20valve%2C%20Stainless%20steel%201.4401-1.4408%2C%20G%201?unique=1d80c6d)
|
Type number: 250.53 ES |
88.93 € | |
![[103800] RIEGLER Bushing - blocking valve, Stainless steel 1.4401/1.4408, G 1 1/2](/web/image/product.template/171761/image_128/%5B103800%5D%20RIEGLER%20Bushing%20-%20blocking%20valve%2C%20Stainless%20steel%201.4401-1.4408%2C%20G%201%201-2?unique=99f3823)
|
Type number: 250.55 ES |
180.04 € | |
![[103796] RIEGLER Bushing - blocking valve, Stainless steel 1.4401/1.4408, G 1/2](/web/image/product.template/171757/image_128/%5B103796%5D%20RIEGLER%20Bushing%20-%20blocking%20valve%2C%20Stainless%20steel%201.4401-1.4408%2C%20G%201-2?unique=e9ebd4f)
|
Type number: 250.51 ES |
61.02 € | |
![[103801] RIEGLER Bushing - blocking valve, Stainless steel 1.4401/1.4408, G 2](/web/image/product.template/171762/image_128/%5B103801%5D%20RIEGLER%20Bushing%20-%20blocking%20valve%2C%20Stainless%20steel%201.4401-1.4408%2C%20G%202?unique=e5e99b4)
|
Type number: 250.56 ES |
231.80 € | |
![[103797] RIEGLER Bushing - blocking valve, Stainless steel 1.4401/1.4408, G 3/4](/web/image/product.template/171758/image_128/%5B103797%5D%20RIEGLER%20Bushing%20-%20blocking%20valve%2C%20Stainless%20steel%201.4401-1.4408%2C%20G%203-4?unique=9028987)
|
Type number: 250.52 ES |
73.46 € | |
![[103795] RIEGLER Bushing - blocking valve, Stainless steel 1.4401/1.4408, G 3/8](/web/image/product.template/171756/image_128/%5B103795%5D%20RIEGLER%20Bushing%20-%20blocking%20valve%2C%20Stainless%20steel%201.4401-1.4408%2C%20G%203-8?unique=2f3c829)
|
Type number: 250.50 ES |
55.89 € | |
