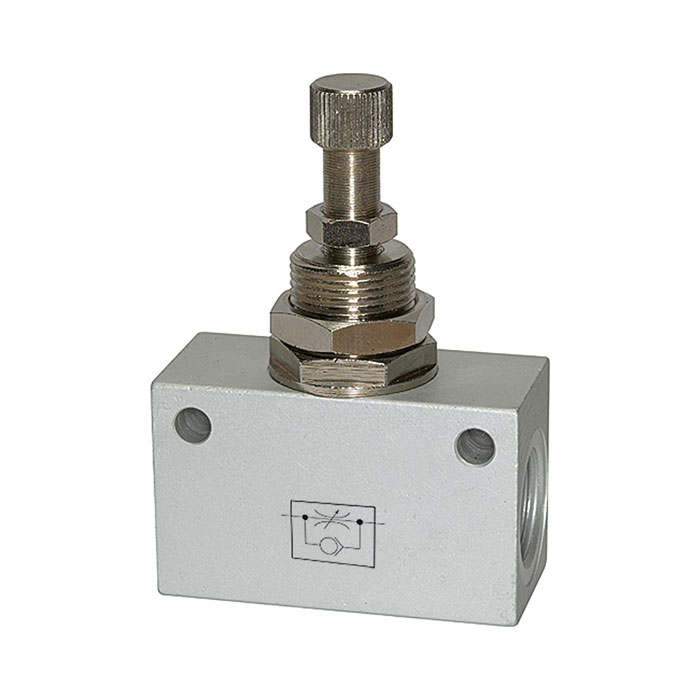

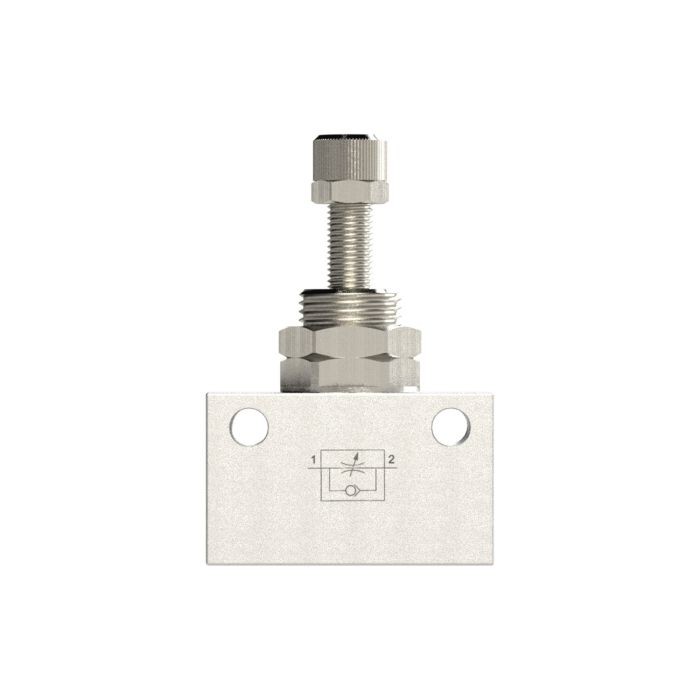

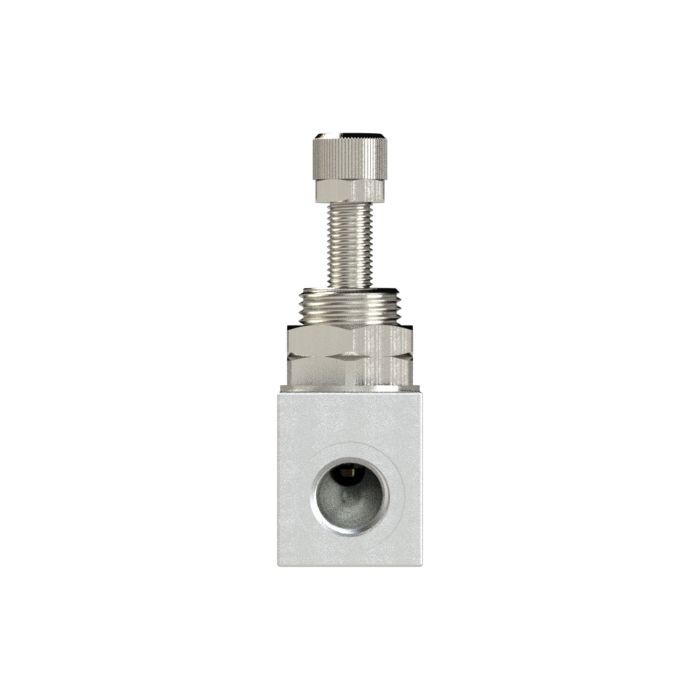

RIEGLER Throttle check valve, in block shape, Anodised aluminium, M5
Type number: 225.32
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
103802EAN :
4047322040587Category :
Unidirectional Flow Control ValvesWeight :
0.02 kgRIEGLER Throttle check valve made of anodized aluminium, for pneumatic control, max. 10 bar - Type 225.32
The RIEGLER throttle check valve, in block form, anodized aluminium, M5 regulates the speed of pneumatic actuators or blocks backflow. The housing is made of anodized aluminium with NBR seals. Designed for a maximum operating pressure of 10 bar. The operating temperature is between -10 °C and 70 °C. M5 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Housing | Anodized aluminum |
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Interior parts | Brass |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 70 °C |
| Thread | M5 |
| Control panel thread | M9x0.75 |

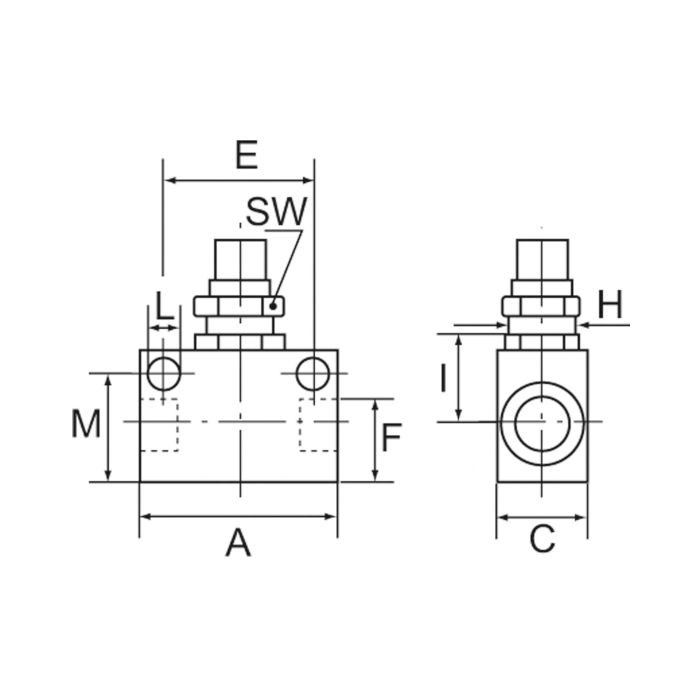

| SW | 11 mm |
| A | 25 mm |
| C | 12 mm |
| L | 3.2 mm |
| E | 18 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| I | 10 mm |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Exception | 6b, 6c |
| REACH Info | contains SVHC substance |
| M | 12.2 mm |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N, AL2011 |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103806] RIEGLER Throttle check valve, in block shape, Anodised aluminium, G 1/2](/web/image/product.template/171767/image_128/%5B103806%5D%20RIEGLER%20Throttle%20check%20valve%2C%20in%20block%20shape%2C%20Anodised%20aluminium%2C%20G%201-2?unique=277d679)
|
Type number: 225.36 |
24.64 € | |
![[103804] RIEGLER Throttle check valve, in block shape, Anodised aluminium, G 1/4](/web/image/product.template/171765/image_128/%5B103804%5D%20RIEGLER%20Throttle%20check%20valve%2C%20in%20block%20shape%2C%20Anodised%20aluminium%2C%20G%201-4?unique=9a27eba)
|
Type number: 225.34 |
12.80 € | |

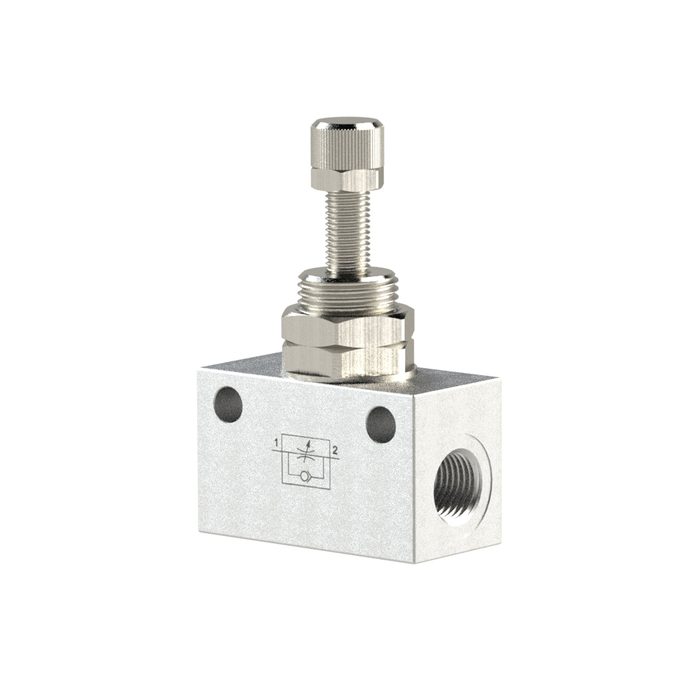

![[103803] RIEGLER Throttle check valve, in block shape, Anodised aluminium, G 1/8](/web/image/product.template/171764/image_128/%5B103803%5D%20RIEGLER%20Throttle%20check%20valve%2C%20in%20block%20shape%2C%20Anodised%20aluminium%2C%20G%201-8?unique=377aacb)
|
