RIEGLER Throttle check valve, in block shape, Stainless steel, G 1/8

Price:

95.40 €

English (US)
  2. Shop
  3. Unidirectional Flow Control Valves
  4. RIEGLER Throttle check valve, in block shape, Stainless steel, G 1/8
RIEGLER Throttle check valve,Supply air throttle,Thread.conn.G1/4i.,G1/4
RIEGLER Throttle check valve,Supply air throttle,Thread.conn.G1/4i.,G1/4
13.36 € 13.36 €
RIEGLER Throttle check valve, Supply air throttle (V) G 1/8 i., G 1/8
RIEGLER Throttle check valve, Supply air throttle (V) G 1/8 i., G 1/8
9.79 € 9.79 €

RIEGLER Throttle check valve, in block shape, Stainless steel, G 1/8

https://www.filcom-technik.de/web/image/product.template/171768/image_1920?unique=76c3ba0

Type number: ES 225.33

95.40 € 95.4 EUR 95.40 € VAT Included

111.36 € VAT Included


Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

103807

EAN :

4047322269735

Category :

Unidirectional Flow Control Valves

Weight :

0.07 kg

RIEGLER Throttle check valve made of stainless steel 1.4404, for pneumatic control, max. 10 bar - Type ES 225.33

The RIEGLER throttle check valve, in block form, stainless steel 1.4404, G 1/8 regulates the speed of pneumatic actuators or blocks backflow. The housing is made of stainless steel 1.4404 with FPM seals. Designed for a maximum operating pressure of 10 bar. The operating temperature is between 0 °C and 150 °C. G 1/8 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.

Field of application

Typical areas of application: Speed control of pneumatic cylinders.

Housing Stainless steel 1.4404
Sealing material FPM
Max. operating pressure 10 bar
Interior parts Stainless steel 1.4404
Operating temperature min. 0 °C
Operating temperature max. 150 °C
Thread G 1/8
SW 14 mm
A 34 mm
C 15 mm
L 4.5 mm
E 24 mm
REACH SVHC1 Substance Name no
CAS No. SVHC 1 none CAS No.
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive no entry
Share of SVHC substance in % for RoHS 0
Exception no exception
REACH Info no SVHC substance contained
M 20 mm
Share of SVHC SCIP no SVHC substance
Proportion of SVHC substance in SCIP no SVHC substance contained
Material identification none
Class name STAINLESS STEEL

Variants / Alternatives

Product Price

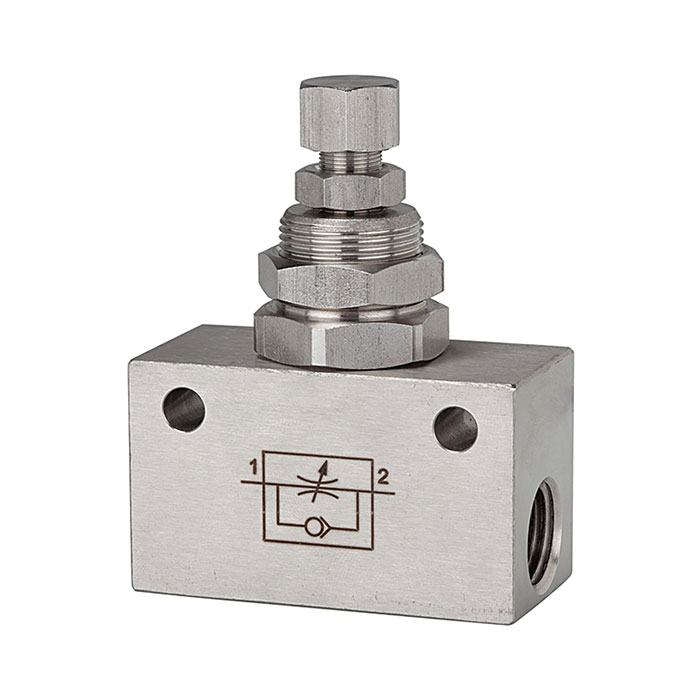

[103808] RIEGLER Throttle check valve, in block shape, Stainless steel, G 1/4

Type number: ES 225.34

 105.96 €
​
