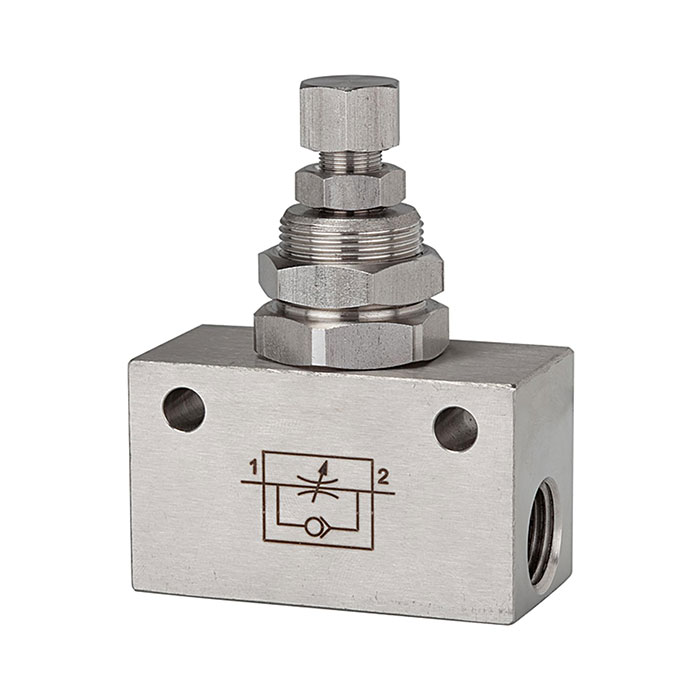

RIEGLER Throttle check valve, in block shape, Stainless steel, G 1/4

https://www.filcom-technik.de/web/image/product.template/171769/image_1920?unique=53c0e7f

Type number: ES 225.34

105.96 € 105.96000000000001 EUR 105.96 € VAT Included

123.67 € VAT Included


Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

103808

EAN :

4047322269742

Category :

Unidirectional Flow Control Valves

Weight :

0.28 kg

RIEGLER Throttle check valve made of stainless steel 1.4404, for pneumatic control, max. 10 bar - Type ES 225.34

The RIEGLER throttle check valve, in block form, stainless steel 1.4404, G 1/4 regulates the speed of pneumatic actuators or blocks backflow. The housing is made of stainless steel 1.4404 with FPM seals. Designed for a maximum operating pressure of 10 bar. The operating temperature is between 0 °C and 150 °C. G 1/4 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.

Field of application

Typical areas of application: Speed control of pneumatic cylinders.

Housing Stainless steel 1.4404
Sealing material FPM
Max. operating pressure 10 bar
Interior parts Stainless steel 1.4404
Operating temperature min. 0 °C
Operating temperature max. 150 °C
Thread G 1/4
SW 22 mm
A 50 mm
C 25 mm
L 5.5 mm
E 35 mm
REACH SVHC1 Substance Name no
CAS No. SVHC 1 none CAS No.
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive no entry
Share of SVHC substance in % for RoHS 0
Exception no exception
REACH Info no SVHC substance contained
M 30 mm
Share of SVHC SCIP no SVHC substance
Proportion of SVHC substance in SCIP no SVHC substance contained
Material identification none
Class name STAINLESS STEEL

Variants / Alternatives

Product Price
[103807] RIEGLER Throttle check valve, in block shape, Stainless steel, G 1/8

Type number: ES 225.33

 95.40 €
​
