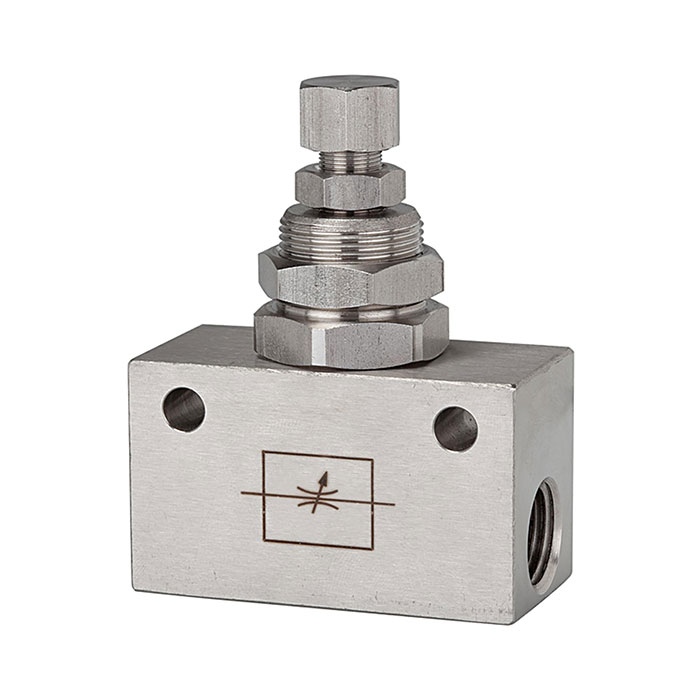

RIEGLER Throttle valve, in block shape, Stainless steel 1.4404, G 1/8
Type number: ES 225.53
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
103813EAN :
4047322269759Category :
Bidirectional Flow Control ValvesWeight :
0.07 kgRIEGLER Throttle valve made of stainless steel 1.4404, for pneumatic control, max. 10 bar - Type ES 225.53
The RIEGLER throttle valve, block shape, stainless steel 1.4404, G 1/8, PN max. 10 bar regulates the speed of pneumatic actuators or blocks backflow. The housing is made of stainless steel 1.4404 with FPM seals. Designed for a maximum operating pressure of 10 bar. The operating temperature is between 0 °C and 150 °C. G 1/8 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Housing | Stainless steel 1.4404 |
| Sealing material | FPM |
| Max. operating pressure | 10 bar |
| Interior parts | Stainless steel 1.4404 |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 150 °C |
| Thread | G 1/8 |

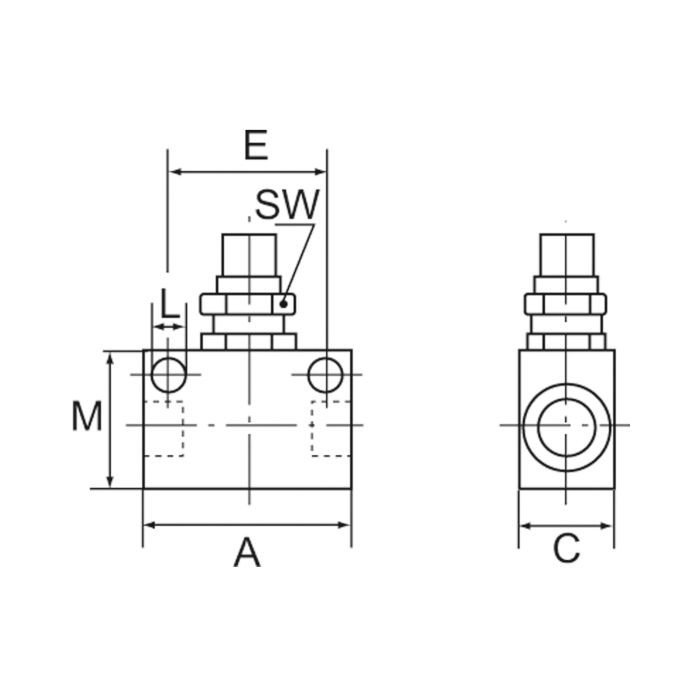

| SW | 14 mm |
| A | 34 mm |
| C | 15 mm |
| L | 4.5 mm |
| E | 24 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| M | 20 mm |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
