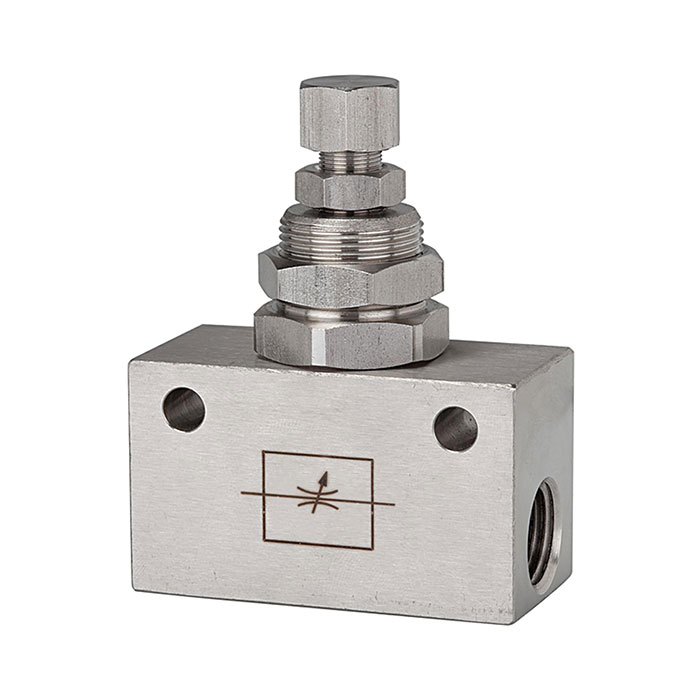

RIEGLER Throttle valve, in block shape, Stainless steel 1.4404, G 1/4
Type number: ES 225.54
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
103814EAN :
4047322269766Category :
Bidirectional Flow Control ValvesWeight :
0.29 kgThrottle valve, in block form, stainless steel 1.4404, operating temperature 0 °C to 150 °C, G 1/4, PN max. 10 bar
| Housing | Stainless steel 1.4404 |
| Sealing material | FPM |
| Max. operating pressure | 10 bar |
| Interior parts | Stainless steel 1.4404 |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 150 °C |
| Thread | G 1/4 |

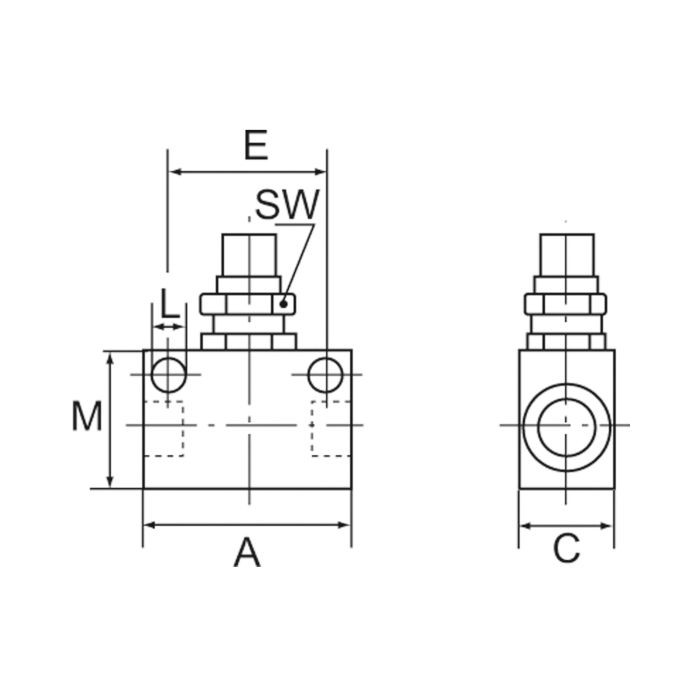

| SW | 22 mm |
| A | 50 mm |
| C | 25 mm |
| L | 5.5 mm |
| E | 35 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| M | 30 mm |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
