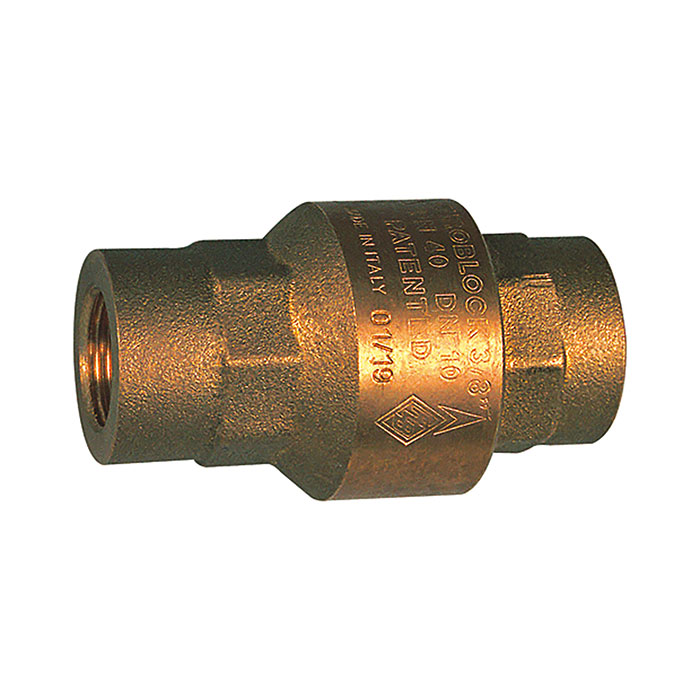

RIEGLER Check valve, Full passage, Brass, Rp 3/8, 20 - 50 mbar
Type number: 227.31
EAN: 4047322046404
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Non-return valve, full bore, brass, operating temp. -10 °C to 100 °C, Rp 3/8, PN max. 40 bar, opening pressure 20 - 50 mbar
| Housing | Brass |
| Sealing material | NBR |
| Max. operating pressure | 40 bar |
| Opening pressure min. | 0.02 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 100 °C |
| Spring | Stainless steel |
| Slider | Polyetherimides (PEI) |
| Thread | Rp 3/8 |
| SW | 20 mm |
| Length | 47 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
