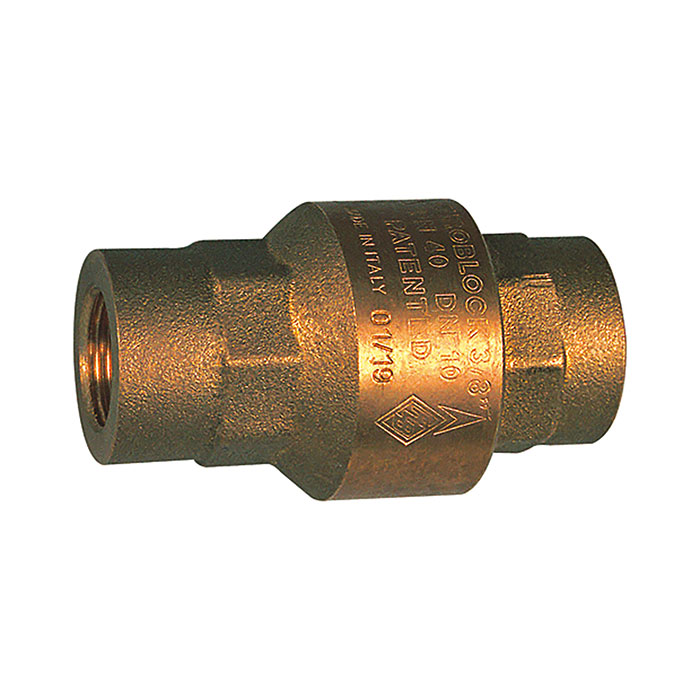

RIEGLER Check valve, Full passage, Brass, Rp 3/4, 20 - 50 mbar
Type number: 227.33
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Brass non-return valve, for industrial systems, max. 40 bar - Type 227.33
The RIEGLER non-return valve, full bore, brass, Rp 3/4, 20 - 50 mbar regulates or blocks the flow of media in industrial pipelines. The housing is made of brass with NBR seals. Designed for a maximum operating pressure of 40 bar. The operating temperature is between -10 °C and 100 °C. Connection thread Rp 3/4 - suitable for common industrial standards. Reliable media control.
Field of application
Typical areas of application: Compressed air, gases and liquids.
| Housing | Brass |
| Sealing material | NBR |
| Max. operating pressure | 40 bar |
| Opening pressure min. | 0.02 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 100 °C |
| Spring | Stainless steel |
| Slider | Polyetherimides (PEI) |
| Thread | Rp 3/4 |
| SW | 31 mm |
| Length | 65 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103873] RIEGLER Check valve, Full passage, Brass, Rp 1 1/2, 20 - 50 mbar](/web/image/product.template/171834/image_128/%5B103873%5D%20RIEGLER%20Check%20valve%2C%20Full%20passage%2C%20Brass%2C%20Rp%201%201-2%2C%2020%20-%2050%20mbar?unique=491482d)
|
Type number: 227.36 |
36.37 € | |
![[103872] RIEGLER Check valve, Full passage, Brass, Rp 1 1/4, 20 - 50 mbar](/web/image/product.template/171833/image_128/%5B103872%5D%20RIEGLER%20Check%20valve%2C%20Full%20passage%2C%20Brass%2C%20Rp%201%201-4%2C%2020%20-%2050%20mbar?unique=a588d4b)
|
Type number: 227.35 |
24.72 € | |

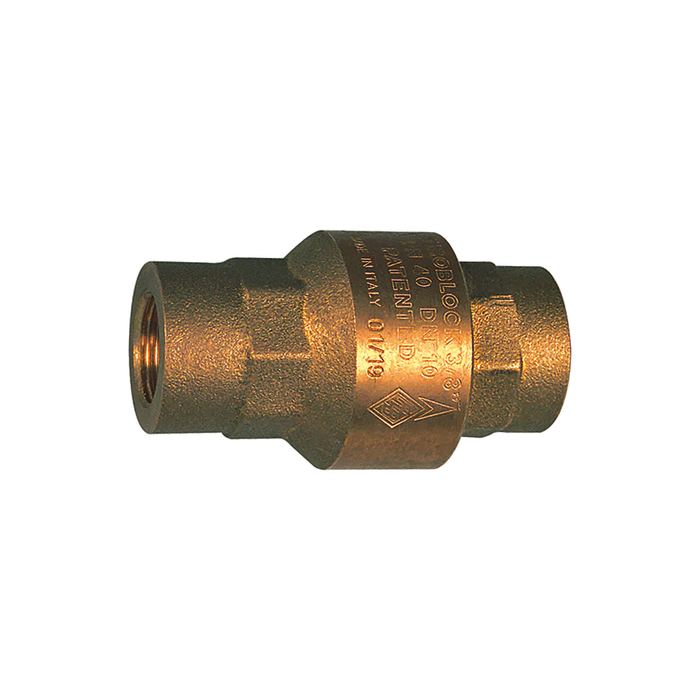

![[103871] RIEGLER Check valve, Full passage, Brass, Rp 1, 20 - 50 mbar](/web/image/product.template/171832/image_128/%5B103871%5D%20RIEGLER%20Check%20valve%2C%20Full%20passage%2C%20Brass%2C%20Rp%201%2C%2020%20-%2050%20mbar?unique=2d52efb)
|
Type number: 227.34 |
15.70 € | |
![[103869] RIEGLER Check valve, Full passage, Brass, Rp 1/2, 20 - 50 mbar](/web/image/product.template/171830/image_128/%5B103869%5D%20RIEGLER%20Check%20valve%2C%20Full%20passage%2C%20Brass%2C%20Rp%201-2%2C%2020%20-%2050%20mbar?unique=09aafd1)
|
Type number: 227.32 |
8.28 € | |
![[103868] RIEGLER Check valve, Full passage, Brass, Rp 3/8, 20 - 50 mbar](/web/image/product.template/171829/image_128/%5B103868%5D%20RIEGLER%20Check%20valve%2C%20Full%20passage%2C%20Brass%2C%20Rp%203-8%2C%2020%20-%2050%20mbar?unique=ec2665d)
|
Type number: 227.31 |
7.37 € | |
