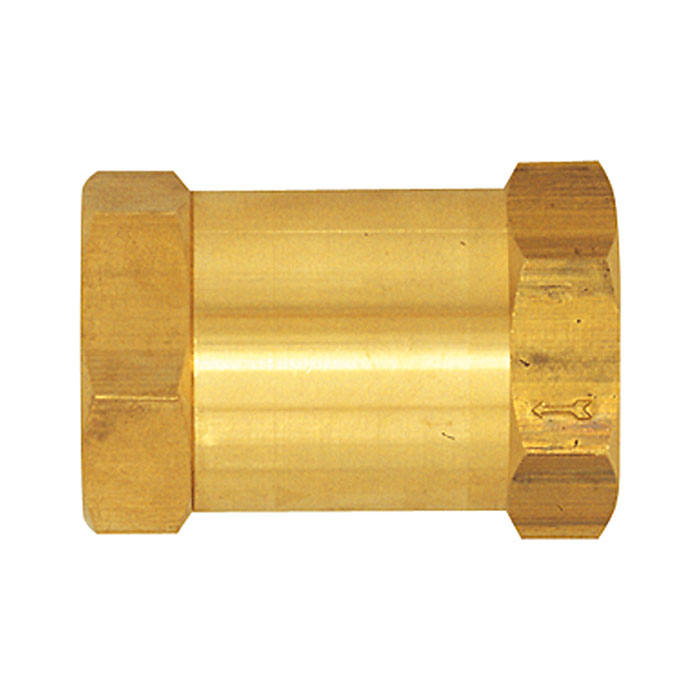

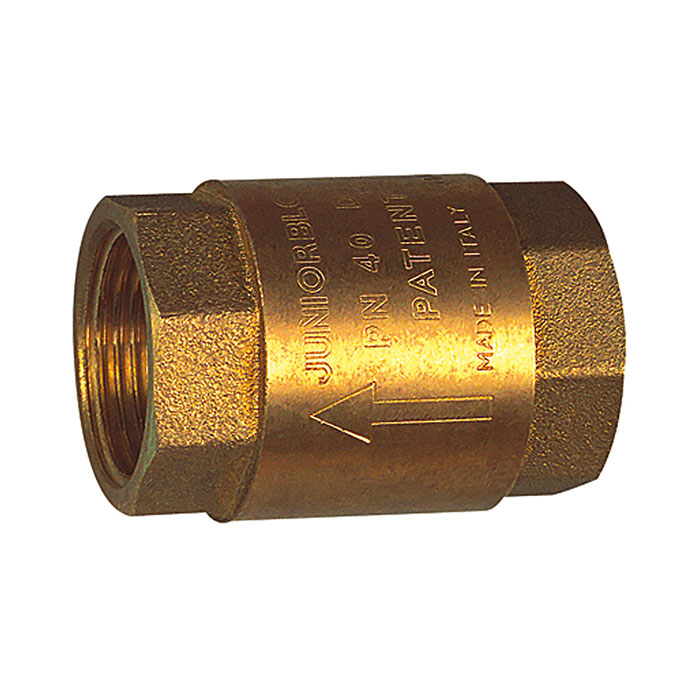

RIEGLER Check valve, reduced passage, G 1/2, 20 mbar
Type number: 227.41
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Brass non-return valve, for industrial systems, max. 40 bar - Type 227.41
The RIEGLER non-return valve, reduced passage, G 1/2, 20 mbar regulates or blocks the flow of media in industrial pipelines. The housing is made of brass with NBR seals. Designed for a maximum operating pressure of 40 bar. The operating temperature is between -10 °C and 100 °C. Connection thread G 1/2 - suitable for common industrial standards. Reliable media control.
Field of application
Typical areas of application: Compressed air, gases and liquids.
| Housing | Brass |
| Sealing material | NBR |
| Max. operating pressure | 40 bar |
| Opening pressure min. | 0.02 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 100 °C |
| Spring | Stainless steel |
| Slider | Polyetherimides (PEI) |
| Thread | G 1/2 |
| SW | 25 mm |
| Length | 44.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103879] RIEGLER Check valve, reduced passage, G 1 1/2, 20 mbar](/web/image/product.template/171840/image_128/%5B103879%5D%20RIEGLER%20Check%20valve%2C%20reduced%20passage%2C%20G%201%201-2%2C%2020%20mbar?unique=367fd6c)
|
Type number: 227.45 |
25.72 € | |
![[103878] RIEGLER Check valve, reduced passage, G 1 1/4, 20 mbar](/web/image/product.template/171839/image_128/%5B103878%5D%20RIEGLER%20Check%20valve%2C%20reduced%20passage%2C%20G%201%201-4%2C%2020%20mbar?unique=ca6e089)
|
Type number: 227.44 |
17.74 € | |
![[103877] RIEGLER Check valve, reduced passage, G 1, 20 mbar](/web/image/product.template/171838/image_128/%5B103877%5D%20RIEGLER%20Check%20valve%2C%20reduced%20passage%2C%20G%201%2C%2020%20mbar?unique=a86d6de)
|
Type number: 227.43 |
12.15 € | |
![[103880] RIEGLER Check valve, reduced passage, G 2, 20 mbar](/web/image/product.template/171841/image_128/%5B103880%5D%20RIEGLER%20Check%20valve%2C%20reduced%20passage%2C%20G%202%2C%2020%20mbar?unique=cd8af9f)
|
Type number: 227.46 |
39.26 € | |

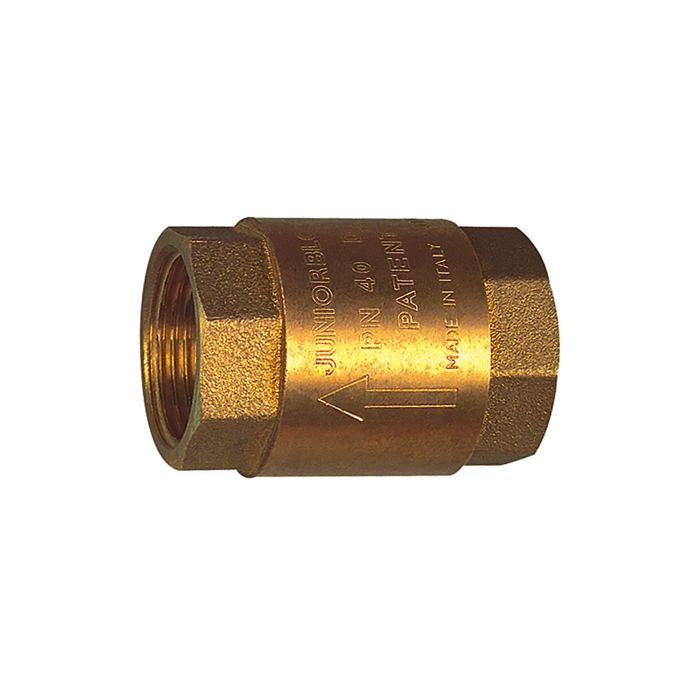

![[103876] RIEGLER Check valve, reduced passage, G 3/4, 20 mbar](/web/image/product.template/171837/image_128/%5B103876%5D%20RIEGLER%20Check%20valve%2C%20reduced%20passage%2C%20G%203-4%2C%2020%20mbar?unique=6b39d79)
|
Type number: 227.42 |
8.48 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

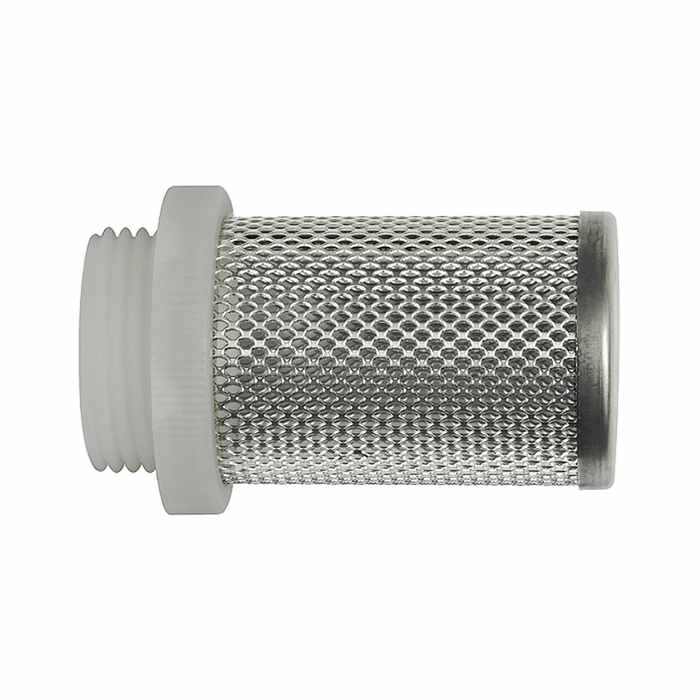

![[134046] RIEGLER Strainer for check valves, G 1/2, Stainless steel 1.4301/Plastic](/web/image/product.template/205322/image_128/%5B134046%5D%20RIEGLER%20Strainer%20for%20check%20valves%2C%20G%201-2%2C%20Stainless%20steel%201.4301-Plastic?unique=34e9b34)
|
