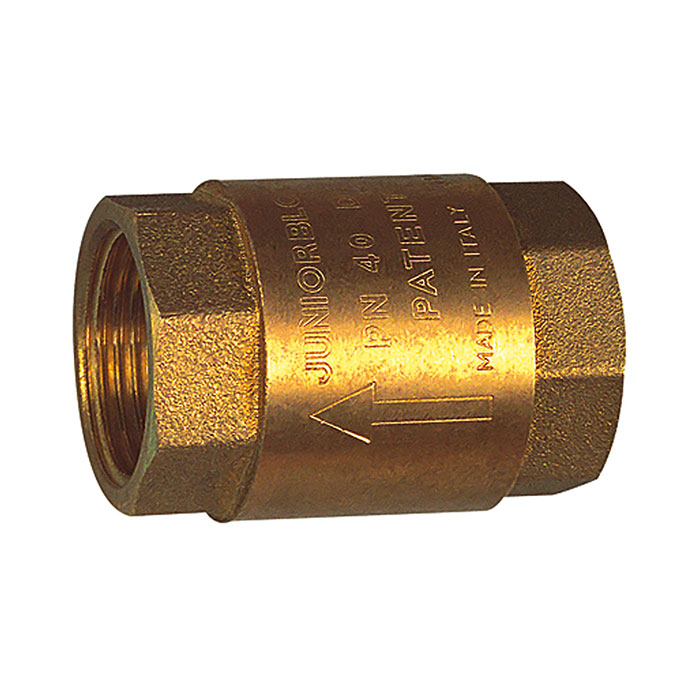

RIEGLER Check valve, reduced passage, G 2, 20 mbar
Type number: 227.46
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Check valve, reduced passage, Operating temperature -10 °C to 100 °C, G 2, PN max. 16 bar, Opening pressure 20 mbar
| Housing | Brass |
| Sealing material | NBR |
| Max. operating pressure | 16 bar |
| Opening pressure min. | 0.02 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 100 °C |
| Spring | Stainless steel |
| Slider | Polyetherimides (PEI) |
| Thread | G 2 |
| SW | 67 mm |
| Length | 78 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103879] RIEGLER Check valve, reduced passage, G 1 1/2, 20 mbar](/web/image/product.template/171840/image_128/%5B103879%5D%20RIEGLER%20Check%20valve%2C%20reduced%20passage%2C%20G%201%201-2%2C%2020%20mbar?unique=e908128)
|
Type number: 227.45 |
25.72 € | |
![[103878] RIEGLER Check valve, reduced passage, G 1 1/4, 20 mbar](/web/image/product.template/171839/image_128/%5B103878%5D%20RIEGLER%20Check%20valve%2C%20reduced%20passage%2C%20G%201%201-4%2C%2020%20mbar?unique=ccd2c1f)
|
Type number: 227.44 |
17.74 € | |
![[103877] RIEGLER Check valve, reduced passage, G 1, 20 mbar](/web/image/product.template/171838/image_128/%5B103877%5D%20RIEGLER%20Check%20valve%2C%20reduced%20passage%2C%20G%201%2C%2020%20mbar?unique=0bc450c)
|
Type number: 227.43 |
12.16 € | |
![[103875] RIEGLER Check valve, reduced passage, G 1/2, 20 mbar](/web/image/product.template/171836/image_128/%5B103875%5D%20RIEGLER%20Check%20valve%2C%20reduced%20passage%2C%20G%201-2%2C%2020%20mbar?unique=95054d9)
|
Type number: 227.41 |
6.69 € | |

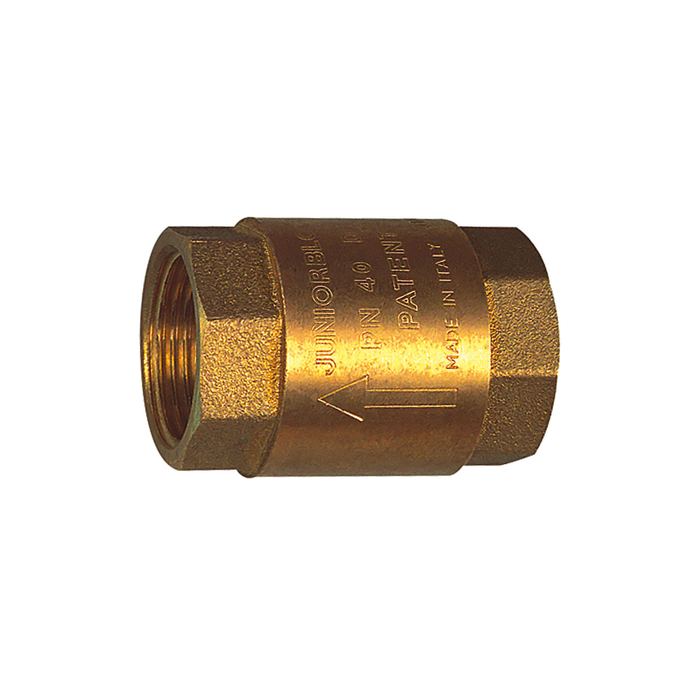

![[103876] RIEGLER Check valve, reduced passage, G 3/4, 20 mbar](/web/image/product.template/171837/image_128/%5B103876%5D%20RIEGLER%20Check%20valve%2C%20reduced%20passage%2C%20G%203-4%2C%2020%20mbar?unique=ad3ff11)
|
Type number: 227.42 |
8.50 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

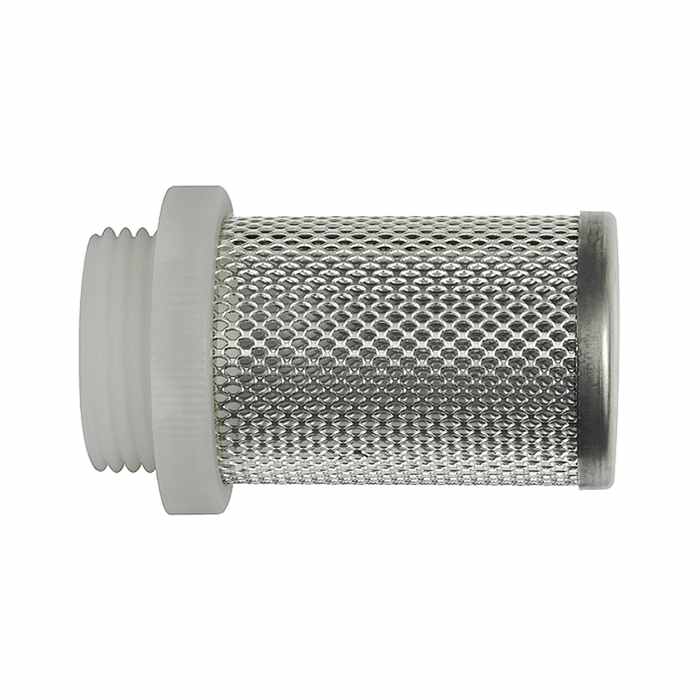

![[134051] RIEGLER Strainer for check valves, G 2, Stainless steel 1.4301/Plastic](/web/image/product.template/205327/image_128/%5B134051%5D%20RIEGLER%20Strainer%20for%20check%20valves%2C%20G%202%2C%20Stainless%20steel%201.4301-Plastic?unique=696be5f)
|
