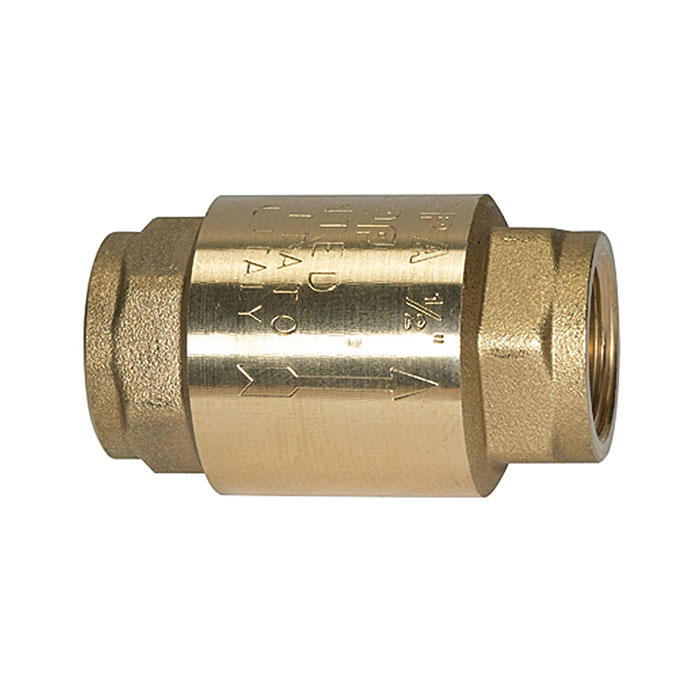

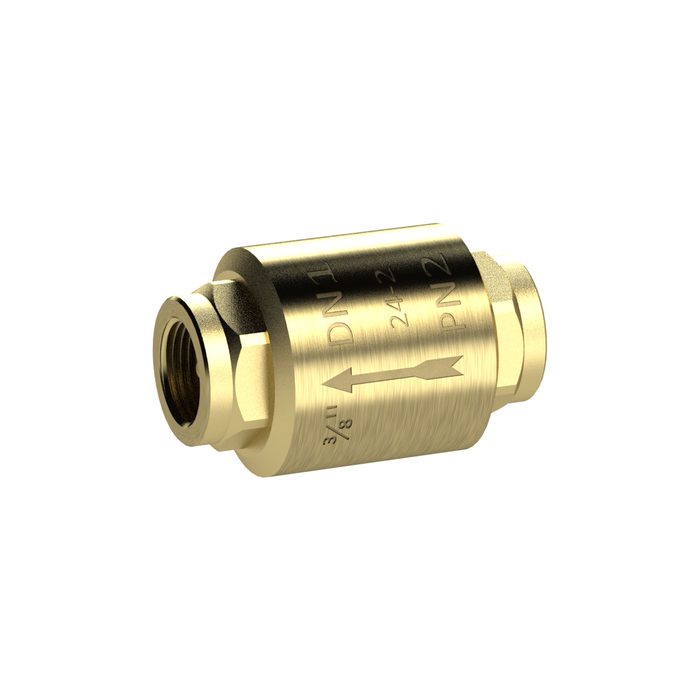

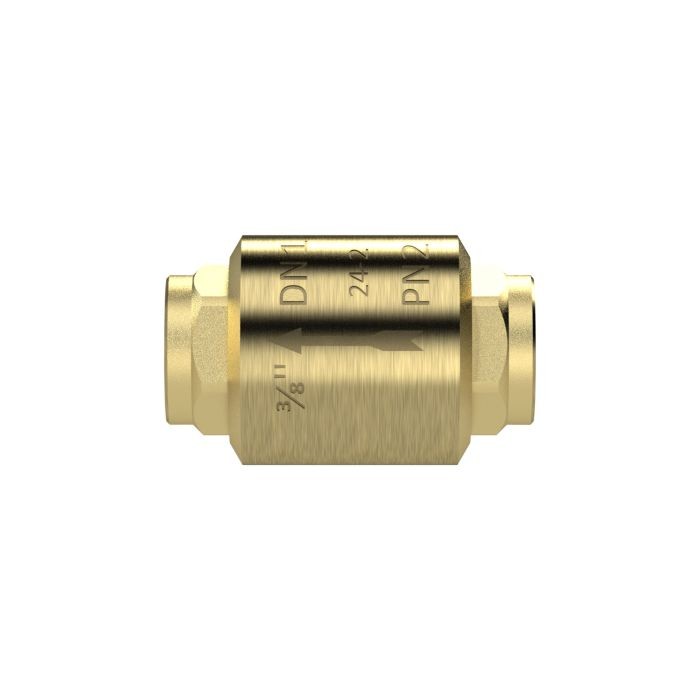

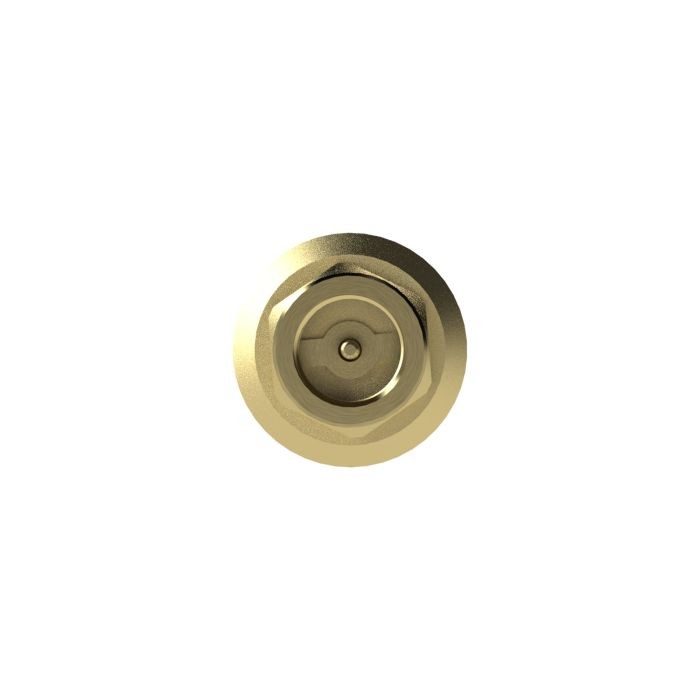

RIEGLER Check valve, Full passage, Brass, G 3/8, 0.01 - 0.03 bar

https://www.filcom-technik.de/web/image/product.template/171842/image_1920?unique=8d090ed

Type number: 9227.31

EAN: 4047322224383

8.57 € 8.57 EUR 8.57 € VAT Included

11.08 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

103881

EAN :

4047322224383

Weight :

0.18 kg

Non-return valve, full bore, brass, operating temp. -20 °C to 100 °C, G 3/8, PN max. 25 bar, opening pressure 0.01 - 0.03 bar

Housing Brass
Sealing material NBR
Max. operating pressure 25 bar
Opening pressure min. 0.01 - 0.03 bar
Valve disc Stainless steel
Operating temperature min. -20 °C
Operating temperature max. 100 °C
Spring Stainless steel
Valve pin Brass
Thread G 3/8
SW 23 mm
Thread standard G-thread according to DIN EN ISO 228-1
Length 55 mm
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification CW614N
Class name EASY
