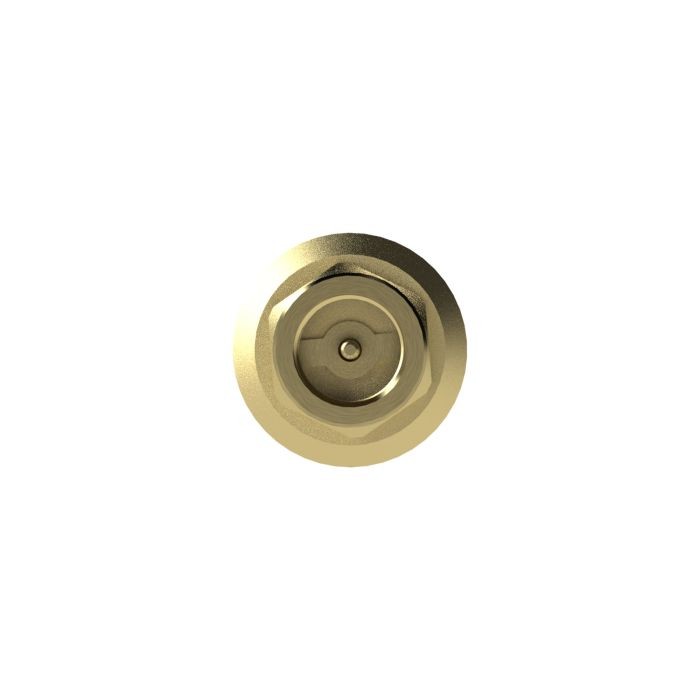

RIEGLER Check valve, Full passage, Brass, G 1 1/4, 0.01 - 0.03 bar
Type number: 9227.35
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Brass non-return valve, for industrial systems, max. 18 bar - Type 9227.35
The RIEGLER non-return valve, full bore, MS, G 1 1/4, 0.01 - 0.03 bar regulates or blocks the flow of media in industrial pipelines. The housing is made of brass with NBR seals. Designed for a maximum operating pressure of 18 bar. The operating temperature is between -20 °C and 100 °C. Connection thread G 1 1/4 (G thread to DIN EN ISO 228-1) - suitable for common industrial standards. Reliable media control.
Field of application
Typical areas of application: Compressed air, gases and liquids.
| Housing | Brass |
| Sealing material | NBR |
| Max. operating pressure | 18 bar |
| Opening pressure min. | 0.01 - 0.03 bar |
| Valve disc | Stainless steel |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 100 °C |
| Spring | Stainless steel |
| Valve pin | Brass |
| Thread | G 1 1/4 |
| SW | 50 mm |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| Length | 83 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103884] RIEGLER Check valve, Full passage, Brass, G 1, 0.01 - 0.03 bar](/web/image/product.template/171845/image_128/%5B103884%5D%20RIEGLER%20Check%20valve%2C%20Full%20passage%2C%20Brass%2C%20G%201%2C%200.01%20-%200.03%20bar?unique=5dbb27f)
|
Type number: 9227.34 |
17.15 € | |
![[103886] RIEGLER Check valve, Full passage, Brass, G 1 1/2, 0.01 - 0.03 bar](/web/image/product.template/171847/image_128/%5B103886%5D%20RIEGLER%20Check%20valve%2C%20Full%20passage%2C%20Brass%2C%20G%201%201-2%2C%200.01%20-%200.03%20bar?unique=ea25d93)
|
Type number: 9227.36 |
37.76 € | |
![[103882] RIEGLER Check valve, Full passage, Brass, G 1/2, 0.01 - 0.03 bar](/web/image/product.template/171843/image_128/%5B103882%5D%20RIEGLER%20Check%20valve%2C%20Full%20passage%2C%20Brass%2C%20G%201-2%2C%200.01%20-%200.03%20bar?unique=bb94353)
|
Type number: 9227.32 |
9.48 € | |
![[103887] RIEGLER Check valve, Full passage, Brass, G 2, 0.01 - 0.03 bar](/web/image/product.template/171848/image_128/%5B103887%5D%20RIEGLER%20Check%20valve%2C%20Full%20passage%2C%20Brass%2C%20G%202%2C%200.01%20-%200.03%20bar?unique=55a9ca7)
|
Type number: 9227.37 |
57.12 € | |
![[134874] RIEGLER Check valve, Full passage, Brass, G 2 1/2, 0.01 - 0.03 bar](/web/image/product.template/205645/image_128/%5B134874%5D%20RIEGLER%20Check%20valve%2C%20Full%20passage%2C%20Brass%2C%20G%202%201-2%2C%200.01%20-%200.03%20bar?unique=e678b3d)
|
Type number: 9227.38 |
130.19 € | |
![[134875] RIEGLER Check valve, Full passage, Brass, G 3, 0.01 - 0.03 bar](/web/image/product.template/205646/image_128/%5B134875%5D%20RIEGLER%20Check%20valve%2C%20Full%20passage%2C%20Brass%2C%20G%203%2C%200.01%20-%200.03%20bar?unique=32fd92c)
|
Type number: 9227.39 |
194.93 € | |

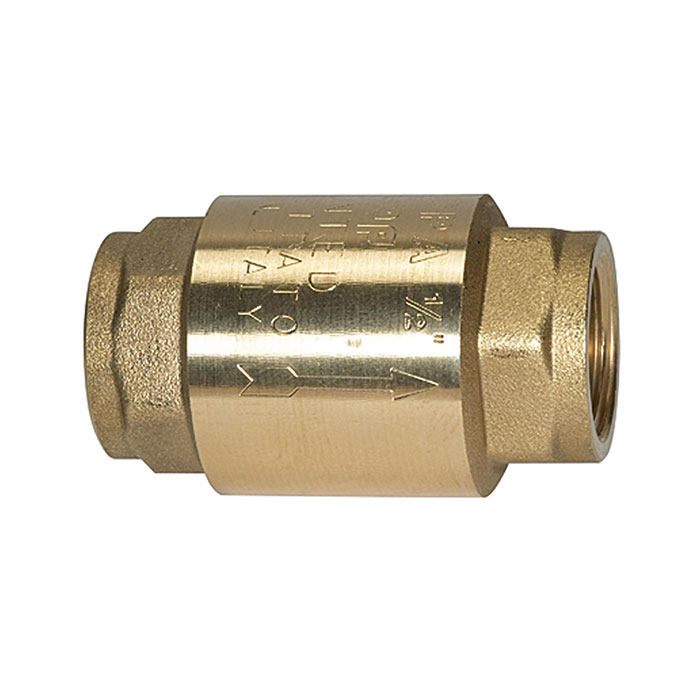

![[103883] RIEGLER Check valve, Full passage, Brass, G 3/4, 0.01 - 0.03 bar](/web/image/product.template/171844/image_128/%5B103883%5D%20RIEGLER%20Check%20valve%2C%20Full%20passage%2C%20Brass%2C%20G%203-4%2C%200.01%20-%200.03%20bar?unique=203e7a1)
|
Type number: 9227.33 |
12.29 € | |
![[103881] RIEGLER Check valve, Full passage, Brass, G 3/8, 0.01 - 0.03 bar](/web/image/product.template/171842/image_128/%5B103881%5D%20RIEGLER%20Check%20valve%2C%20Full%20passage%2C%20Brass%2C%20G%203-8%2C%200.01%20-%200.03%20bar?unique=7798e95)
|
Type number: 9227.31 |
9.48 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

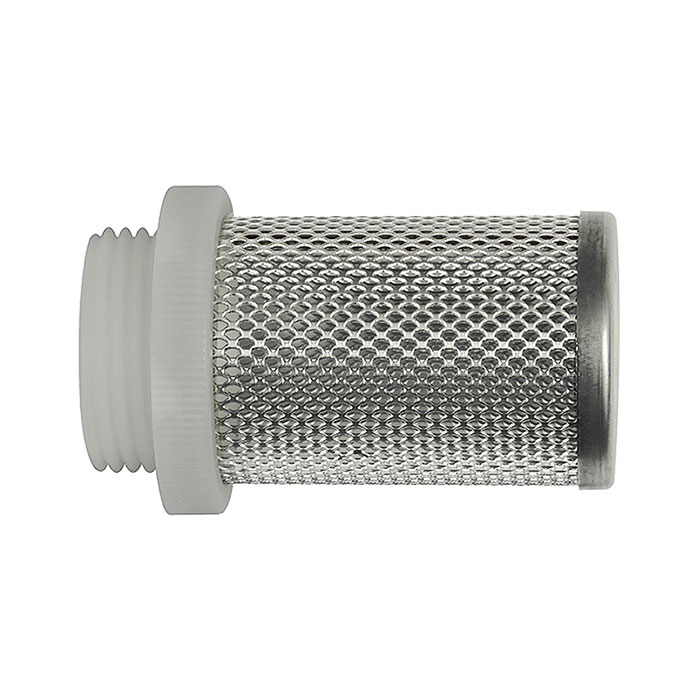

![[134049] RIEGLER Strainer f. check valves, G 1 1/4, Stainless steel 1.4301/Plastic](/web/image/product.template/205325/image_128/%5B134049%5D%20RIEGLER%20Strainer%20f.%20check%20valves%2C%20G%201%201-4%2C%20Stainless%20steel%201.4301-Plastic?unique=1bd45d6)
|
