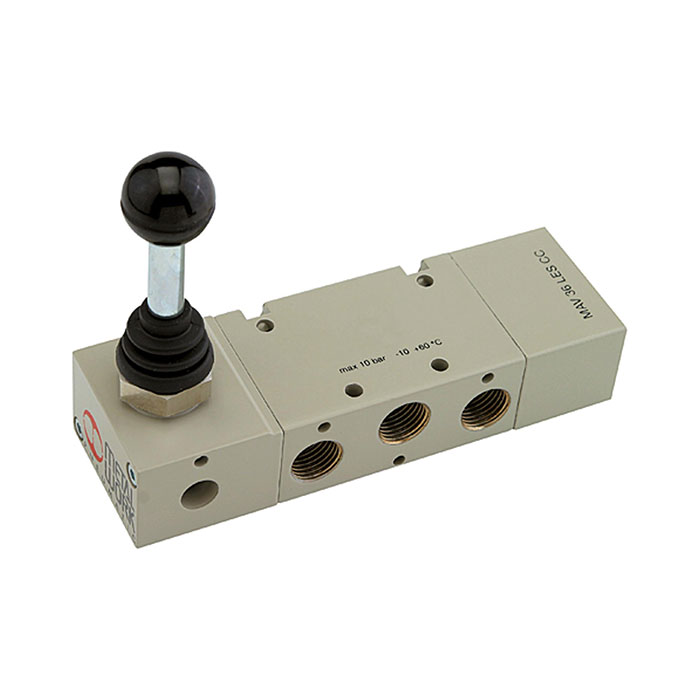

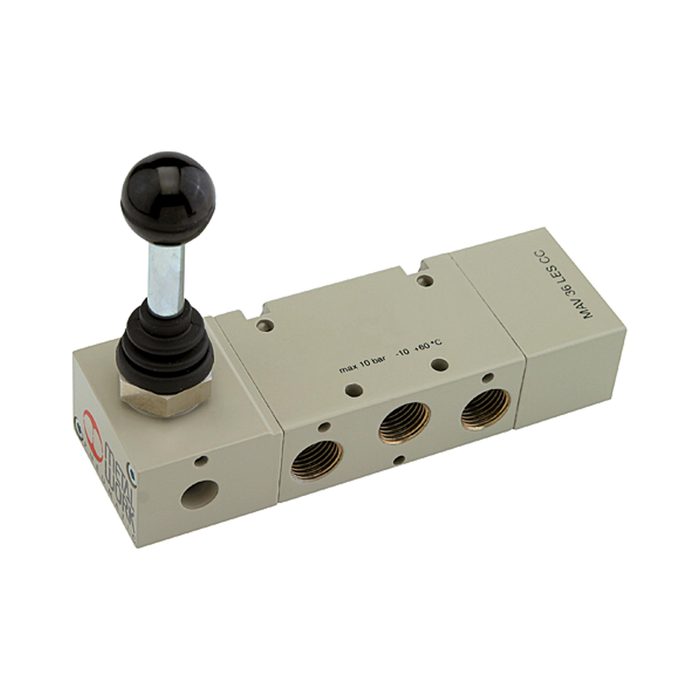

RIEGLER 5/3-way valve, man. 90° lever G1/4 mid-pos. exhaust.spring return
Type number: 514.132
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 5/3-way valve for pneumatic control, G 1/4 - Type 514.132
The RIEGLER 5/3-way valve, manual 90° lever, G 1/4, center release, spring return, controls the direction of the compressed air flow for targeted movement sequences. with NBR seals. The temperature range is between -10 °C and 60 °C. Connection thread G 1/4 - suitable for common industry standards. Suitable for filtered compressed air with or without lubrication. If lubricated, then continuous. The flow rate is 1100 Nl/min. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves Series 70 |
| Spring | Special steel |
| Valve body | Aluminum |
| Operating pressure | Vacuum up to 10 bar |
| Function | 5/3 |
| Actuation | Center vented, spring return |
| Symbol | 15 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 |
| Piston | Nickel-plated aluminum |
| RoHS material information | RoHS compliant |
| Flow rate | 750 Nl/min |
| Flow rate | 1100 Nl/min |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Exception | 6b |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | AA-6026 |
| Flow rate measurement 1 | Flow rate at 6 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Class name | PLUS |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

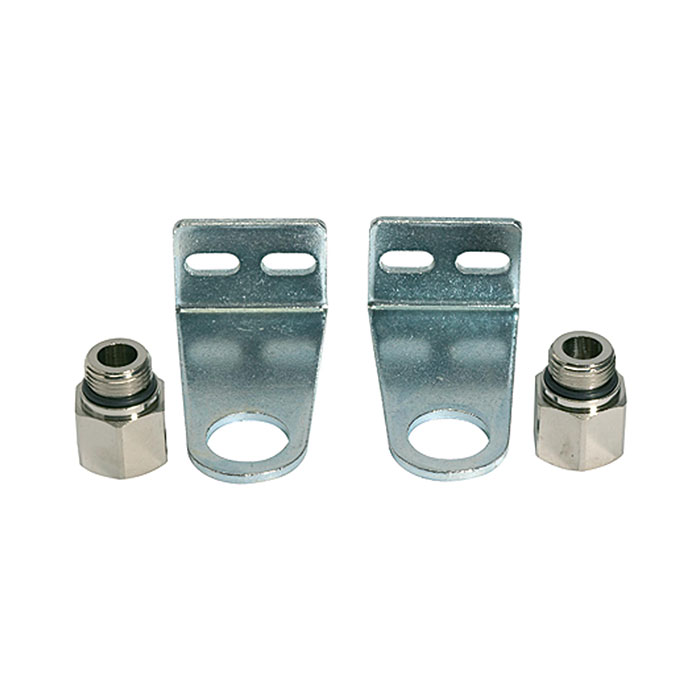

![[106607] RIEGLER Mounting bracket set for way valves, Height 120 mm, G 1/4](/web/image/product.template/175664/image_128/%5B106607%5D%20RIEGLER%20Mounting%20bracket%20set%20for%20way%20valves%2C%20Height%20120%20mm%2C%20G%201-4?unique=98a4476)
|
Type number: 518.120-14 |
17.80 € | |
![[106608] RIEGLER Mounting bracket set for way valves, Height 60 mm, G 1/4](/web/image/product.template/175665/image_128/%5B106608%5D%20RIEGLER%20Mounting%20bracket%20set%20for%20way%20valves%2C%20Height%2060%20mm%2C%20G%201-4?unique=16b9166)
|
Type number: 518.60-14 |
16.31 € | |
![[106609] RIEGLER Mounting bracket set for way valves, Height 30 mm, G 1/4](/web/image/product.template/175666/image_128/%5B106609%5D%20RIEGLER%20Mounting%20bracket%20set%20for%20way%20valves%2C%20Height%2030%20mm%2C%20G%201-4?unique=7c202fa)
|
Type number: 518.30-14 |
16.31 € | |

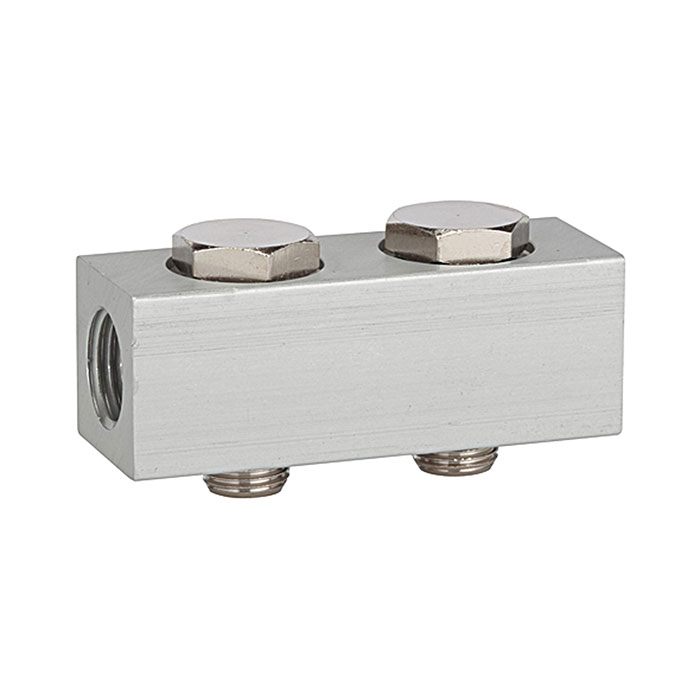

![[106616] RIEGLER Supply strip for the way valves, with 2 valve positions, G 1/4](/web/image/product.template/175673/image_128/%5B106616%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%202%20valve%20positions%2C%20G%201-4?unique=0a31774)
|
Type number: 519.02-14 |
15.79 € | |

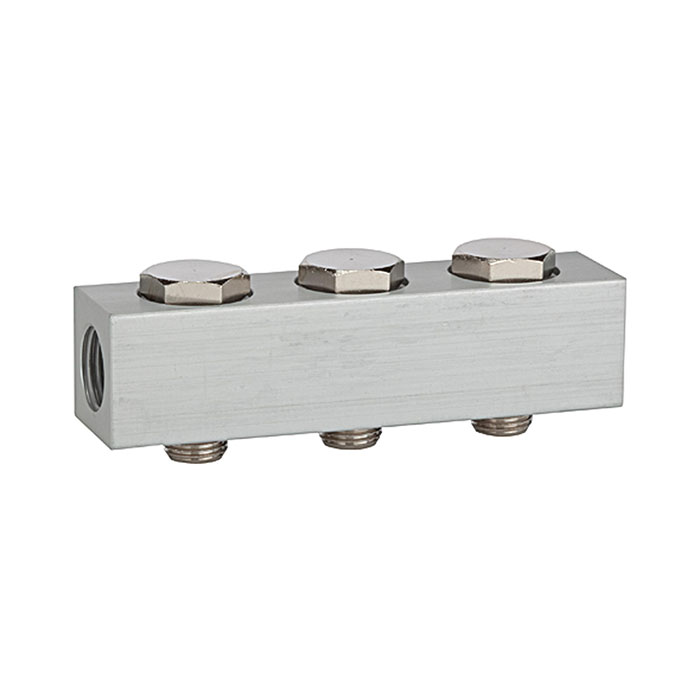

![[106617] RIEGLER Supply strip for the way valves, with 3 valve positions, G 1/4](/web/image/product.template/175674/image_128/%5B106617%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%203%20valve%20positions%2C%20G%201-4?unique=47901c4)
|
Type number: 519.03-14 |
21.34 € | |

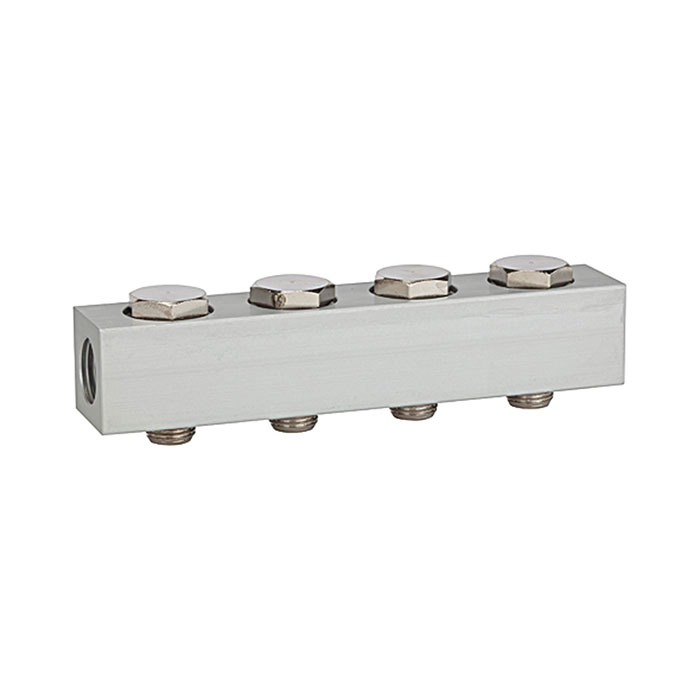

![[106618] RIEGLER Supply strip for the way valves, with 4 valve positions, G 1/4](/web/image/product.template/175675/image_128/%5B106618%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%204%20valve%20positions%2C%20G%201-4?unique=f98c512)
|
Type number: 519.04-14 |
25.61 € | |

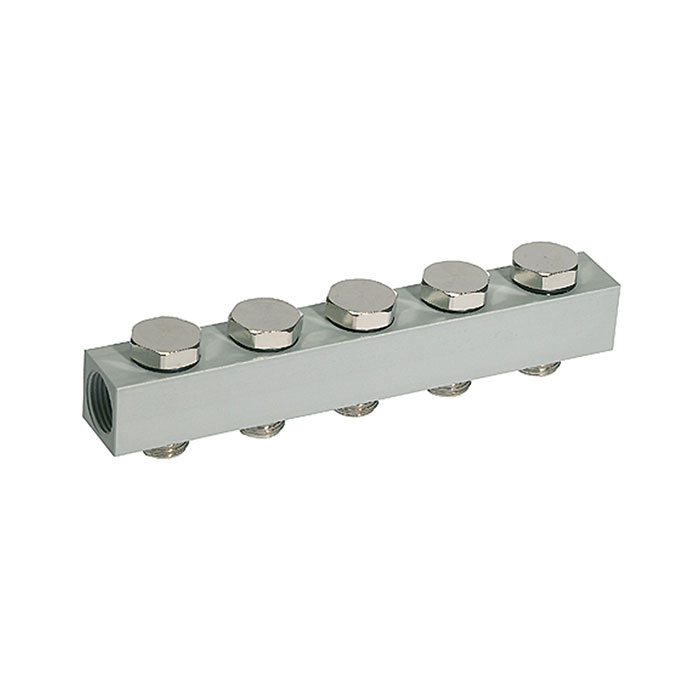

![[106619] RIEGLER Supply strip for the way valves, with 5 valve positions, G 1/4](/web/image/product.template/175676/image_128/%5B106619%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%205%20valve%20positions%2C%20G%201-4?unique=5b1b756)
|
Type number: 519.05-14 |
32.24 € | |

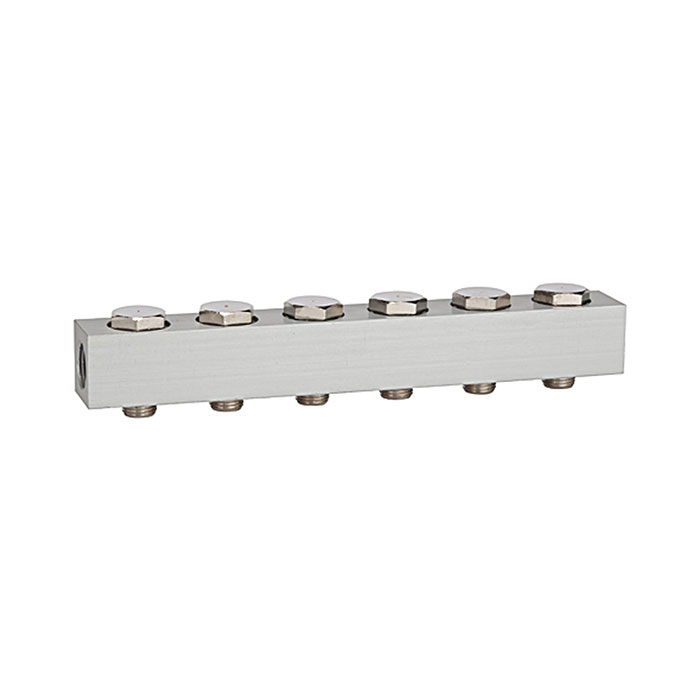

![[106620] RIEGLER Supply strip for the way valves, with 6 valve positions, G 1/4](/web/image/product.template/175677/image_128/%5B106620%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%206%20valve%20positions%2C%20G%201-4?unique=9dcc936)
|
Type number: 519.06-14 |
38.75 € | |

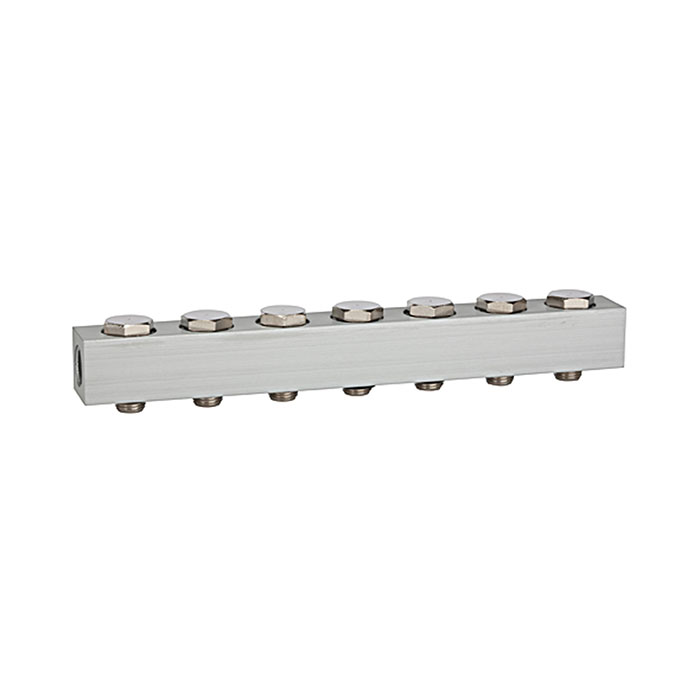

![[106621] RIEGLER Supply strip for the way valves, with 7 valve positions, G 1/4](/web/image/product.template/175678/image_128/%5B106621%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%207%20valve%20positions%2C%20G%201-4?unique=4b5b161)
|
