RIEGLER 5/3-way valve, man.90° lever G1/4 mid-position pressurised,detent
Type number: 514.136
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
5/3-way valve, man. 90° lever, G 1/4, mid-position pressurised, detent, op. pressure vacuum to 10bar, op. temp.-10°C to 60°C
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves Series 70 |
| Spring | Special steel |
| Valve body | Aluminum |
| Operating pressure | Vacuum up to 10 bar |
| Function | 5/3 |
| Actuation | Center ventilated, latching |
| Symbol | 19 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 |
| Piston | Nickel-plated aluminum |
| RoHS material information | RoHS compliant |
| Flow rate | 750 Nl/min |
| Flow rate | 1100 Nl/min |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Exception | 6b |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | AA-6026 |
| Flow rate measurement 1 | Flow rate at 6 bar and ˆ†p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and ˆ†p 1.0 bar |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106463] RIEGLER 3/2-way valve, man. 90° lever bistable, G1/2](/web/image/product.template/175520/image_128/%5B106463%5D%20RIEGLER%203-2-way%20valve%2C%20man.%2090%C2%B0%20lever%20bistable%2C%20G1-2?unique=f875b32)
|
Type number: 514.106 |
163.11 € | |
![[106461] RIEGLER 3/2-way valve, man. 90° lever bistable, G1/4](/web/image/product.template/175518/image_128/%5B106461%5D%20RIEGLER%203-2-way%20valve%2C%20man.%2090%C2%B0%20lever%20bistable%2C%20G1-4?unique=69e2cb2)
|
Type number: 514.104 |
75.67 € | |
![[106459] RIEGLER 3/2-way valve, man. 90° lever bistable, G1/8](/web/image/product.template/175516/image_128/%5B106459%5D%20RIEGLER%203-2-way%20valve%2C%20man.%2090%C2%B0%20lever%20bistable%2C%20G1-8?unique=e05ada7)
|
Type number: 514.102 |
44.78 € | |
![[106462] RIEGLER 3/2-way valve, man. 90° lever monostable, G1/2](/web/image/product.template/175519/image_128/%5B106462%5D%20RIEGLER%203-2-way%20valve%2C%20man.%2090%C2%B0%20lever%20monostable%2C%20G1-2?unique=af0df5a)
|
Type number: 514.105 |
163.11 € | |
![[106460] RIEGLER 3/2-way valve, man. 90° lever monostable, G1/4](/web/image/product.template/175517/image_128/%5B106460%5D%20RIEGLER%203-2-way%20valve%2C%20man.%2090%C2%B0%20lever%20monostable%2C%20G1-4?unique=058fd65)
|
Type number: 514.103 |
75.67 € | |
![[106458] RIEGLER 3/2-way valve, man. 90° lever monostable, G1/8](/web/image/product.template/175515/image_128/%5B106458%5D%20RIEGLER%203-2-way%20valve%2C%20man.%2090%C2%B0%20lever%20monostable%2C%20G1-8?unique=3c82d8d)
|
Type number: 514.101 |
44.78 € | |
![[106469] RIEGLER 5/2-way valve, man. 90° lever bistable, G1/2](/web/image/product.template/175526/image_128/%5B106469%5D%20RIEGLER%205-2-way%20valve%2C%20man.%2090%C2%B0%20lever%20bistable%2C%20G1-2?unique=38aacc6)
|
Type number: 514.116 |
184.22 € | |
![[106467] RIEGLER 5/2-way valve, man. 90° lever bistable, G1/4](/web/image/product.template/175524/image_128/%5B106467%5D%20RIEGLER%205-2-way%20valve%2C%20man.%2090%C2%B0%20lever%20bistable%2C%20G1-4?unique=90d6a12)
|
Type number: 514.114 |
83.38 € | |
![[106465] RIEGLER 5/2-way valve, man. 90° lever bistable, G1/8](/web/image/product.template/175522/image_128/%5B106465%5D%20RIEGLER%205-2-way%20valve%2C%20man.%2090%C2%B0%20lever%20bistable%2C%20G1-8?unique=48ab4d1)
|
Type number: 514.112 |
48.84 € | |
![[106468] RIEGLER 5/2-way valve, man. 90° lever monostable, G1/2](/web/image/product.template/175525/image_128/%5B106468%5D%20RIEGLER%205-2-way%20valve%2C%20man.%2090%C2%B0%20lever%20monostable%2C%20G1-2?unique=0ee17cd)
|
Type number: 514.115 |
184.22 € | |
![[106466] RIEGLER 5/2-way valve, man. 90° lever monostable, G1/4](/web/image/product.template/175523/image_128/%5B106466%5D%20RIEGLER%205-2-way%20valve%2C%20man.%2090%C2%B0%20lever%20monostable%2C%20G1-4?unique=c4a4149)
|
Type number: 514.113 |
83.38 € | |
![[106464] RIEGLER 5/2-way valve, man. 90° lever monostable, G1/8](/web/image/product.template/175521/image_128/%5B106464%5D%20RIEGLER%205-2-way%20valve%2C%20man.%2090%C2%B0%20lever%20monostable%2C%20G1-8?unique=3f20f5f)
|
Type number: 514.111 |
48.84 € | |
![[106482] RIEGLER 5/3-way valve, man. 90° lever G1/2 mid-pos. closed spring return](/web/image/product.template/175539/image_128/%5B106482%5D%20RIEGLER%205-3-way%20valve%2C%20man.%2090%C2%B0%20lever%20G1-2%20mid-pos.%20closed%20spring%20return?unique=5a59d7b)
|
Type number: 514.141 |
199.31 € | |
![[106483] RIEGLER 5/3-way valve, man. 90° lever G1/2 mid-pos. exhaust.spring return](/web/image/product.template/175540/image_128/%5B106483%5D%20RIEGLER%205-3-way%20valve%2C%20man.%2090%C2%B0%20lever%20G1-2%20mid-pos.%20exhaust.spring%20return?unique=82962d9)
|
Type number: 514.142 |
199.31 € | |
![[106485] RIEGLER 5/3-way valve, man. 90° lever G1/2 mid-position closed, detent](/web/image/product.template/175542/image_128/%5B106485%5D%20RIEGLER%205-3-way%20valve%2C%20man.%2090%C2%B0%20lever%20G1-2%20mid-position%20closed%2C%20detent?unique=de4b95d)
|
Type number: 514.144 |
199.31 € | |
![[106486] RIEGLER 5/3-way valve, man. 90° lever G1/2 mid-position exhausted, detent](/web/image/product.template/175543/image_128/%5B106486%5D%20RIEGLER%205-3-way%20valve%2C%20man.%2090%C2%B0%20lever%20G1-2%20mid-position%20exhausted%2C%20detent?unique=d5d2768)
|
Type number: 514.145 |
199.31 € | |
![[106487] RIEGLER 5/3-way valve, man.90° lever G1/2 mid-position pressurised,detent](/web/image/product.template/175544/image_128/%5B106487%5D%20RIEGLER%205-3-way%20valve%2C%20man.90%C2%B0%20lever%20G1-2%20mid-position%20pressurised%2Cdetent?unique=9f2839d)
|
Type number: 514.146 |
199.31 € | |
![[106484] RIEGLER 5/3-way valve, man. 90° lever G1/2 mid-pos. press.spring return](/web/image/product.template/175541/image_128/%5B106484%5D%20RIEGLER%205-3-way%20valve%2C%20man.%2090%C2%B0%20lever%20G1-2%20mid-pos.%20press.spring%20return?unique=9e16711)
|
Type number: 514.143 |
199.31 € | |
![[106476] RIEGLER 5/3-way valve, man. 90° lever G1/4 mid-pos. closed spring return](/web/image/product.template/175533/image_128/%5B106476%5D%20RIEGLER%205-3-way%20valve%2C%20man.%2090%C2%B0%20lever%20G1-4%20mid-pos.%20closed%20spring%20return?unique=0bc39cd)
|
Type number: 514.131 |
86.83 € | |
![[106477] RIEGLER 5/3-way valve, man. 90° lever G1/4 mid-pos. exhaust.spring return](/web/image/product.template/175534/image_128/%5B106477%5D%20RIEGLER%205-3-way%20valve%2C%20man.%2090%C2%B0%20lever%20G1-4%20mid-pos.%20exhaust.spring%20return?unique=760e5e0)
|
Type number: 514.132 |
86.83 € | |
![[106479] RIEGLER 5/3-way valve, man. 90° lever G1/4 mid-position closed, detent](/web/image/product.template/175536/image_128/%5B106479%5D%20RIEGLER%205-3-way%20valve%2C%20man.%2090%C2%B0%20lever%20G1-4%20mid-position%20closed%2C%20detent?unique=c7903c5)
|
Type number: 514.134 |
86.83 € | |
![[106480] RIEGLER 5/3-way valve, man. 90° lever G1/4 mid-position exhausted, detent](/web/image/product.template/175537/image_128/%5B106480%5D%20RIEGLER%205-3-way%20valve%2C%20man.%2090%C2%B0%20lever%20G1-4%20mid-position%20exhausted%2C%20detent?unique=f5f6bf3)
|
Type number: 514.135 |
86.83 € | |

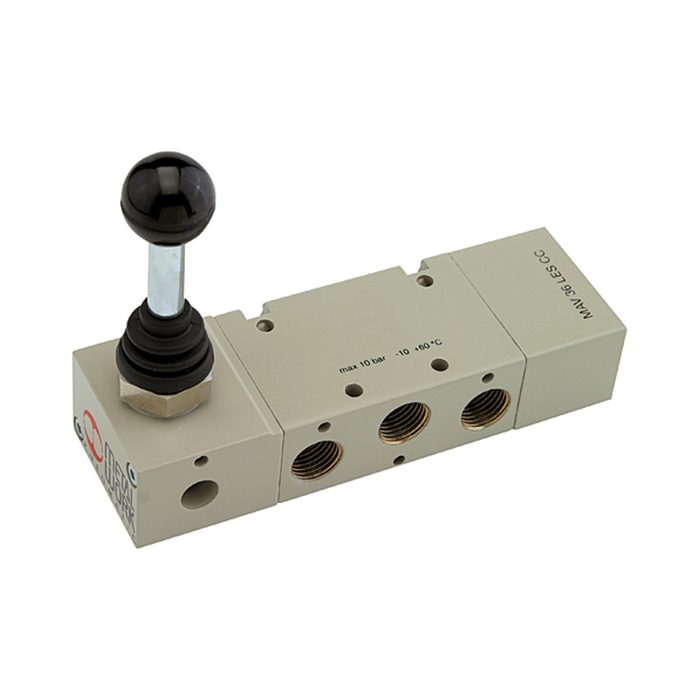

![[106478] RIEGLER 5/3-way valve, man. 90° lever G1/4 mid-pos. press. spring return](/web/image/product.template/175535/image_128/%5B106478%5D%20RIEGLER%205-3-way%20valve%2C%20man.%2090%C2%B0%20lever%20G1-4%20mid-pos.%20press.%20spring%20return?unique=d3a8b86)
|
