RIEGLER 5/2-way valve, electropneum., monostable, G 1/4, DN 7.5, 24 V DC
Type number: 517.202
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106545EAN :
4047322097543Category :
Valves Electropneumatically OperatedWeight :
0.27 kgRIEGLER 5/2-way valve for pneumatic control, max. 10 bar, G 1/4 - Type 517.202
The RIEGLER 5/2-way valve, electropneumatic, monostable, G 1/4, 24 V DC controls the direction of the compressed air flow for targeted movement sequences. with NBR seals. The operating pressure range is 2.5 bar to 10 bar. The permissible medium temperature is between -10 °C and 60 °C. G 1/4 connection thread - suitable for common industry standards. Suitable for filtered compressed air with or without lubrication. If lubricated, then continuous. The flow rate is 1100 Nl/min. Operating voltage 24 V DC. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves Series 70 |
| Operating pressure min. | 2.5 bar |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Manual override | resting |
| DN | 45419 |
| Function | 5/2 |
| Actuation | monostable |
| Symbol | 35 |
| Tension | 24 V DC |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 |
| RoHS material information | RoHS compliant |
| Flow rate | 750 Nl/min |
| Flow rate | 1100 Nl/min |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Exception | 6b |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | AA-6026 |
| Flow rate measurement 1 | Flow rate at 6 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[145883] RIEGLER 5/2-way valve, electropneumatic, monostable, G 1/4, 110 V AC](/web/image/product.template/275807/image_128/%5B145883%5D%20RIEGLER%205-2-way%20valve%2C%20electropneumatic%2C%20monostable%2C%20G%201-4%2C%20110%20V%20AC?unique=e0368c8)
|
Type number: 517.52.14.M.110A |
87.62 € | |

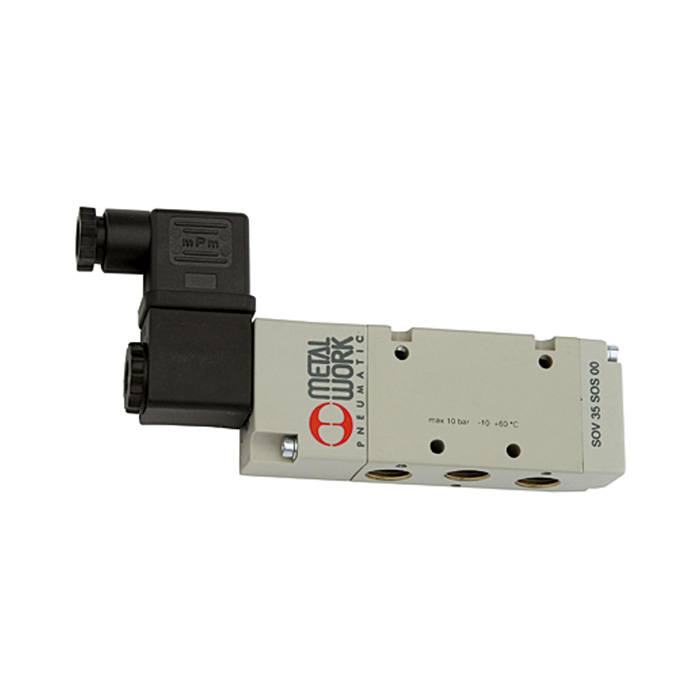

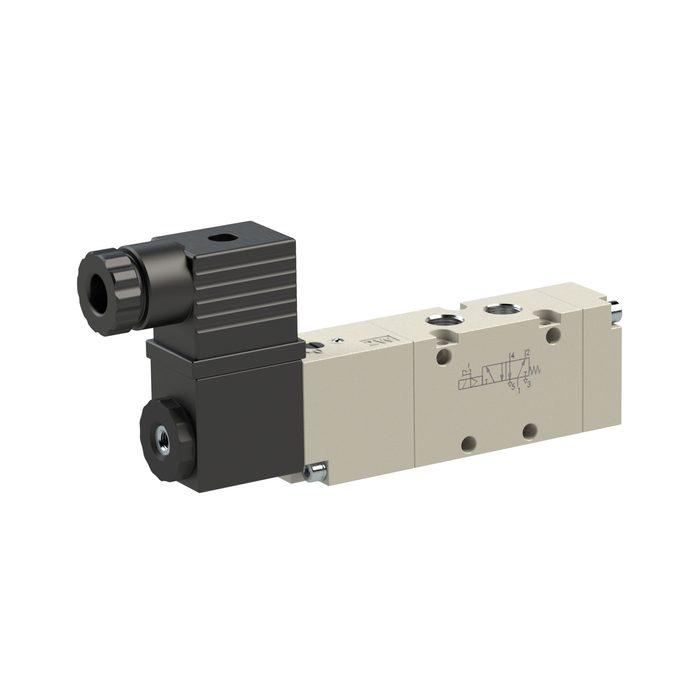

![[145881] RIEGLER 5/2-way valve, electropneumatic, monostable, G 1/4, 12 V DC](/web/image/product.template/275805/image_128/%5B145881%5D%20RIEGLER%205-2-way%20valve%2C%20electropneumatic%2C%20monostable%2C%20G%201-4%2C%2012%20V%20DC?unique=54925fc)
|
Type number: 517.52.14.M.12D |
87.62 € | |
![[145882] RIEGLER 5/2-way valve, electropneumatic, monostable, G 1/4, 24 V AC](/web/image/product.template/275806/image_128/%5B145882%5D%20RIEGLER%205-2-way%20valve%2C%20electropneumatic%2C%20monostable%2C%20G%201-4%2C%2024%20V%20AC?unique=0f8b88f)
|
Type number: 517.52.14.M.24A |
87.62 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[151011] RIEGLER Appliance plug with LED, 110 V, 22 mm, type B](/web/image/product.template/276002/image_128/%5B151011%5D%20RIEGLER%20Appliance%20plug%20with%20LED%2C%20110%20V%2C%2022%20mm%2C%20type%20B?unique=54dbc84)
|
Typennummer: 1920.9PL110 |
6.47 € | |
![[117314] RIEGLER Appliance plug with LED, 230 V, 22 mm, type B](/web/image/product.template/274840/image_128/%5B117314%5D%20RIEGLER%20Appliance%20plug%20with%20LED%2C%20230%20V%2C%2022%20mm%2C%20type%20B?unique=648acc0)
|
Type number: 1920.9PL.17 |
6.47 € | |
![[117313] RIEGLER Device plug, 22 mm, type B](/web/image/product.template/274839/image_128/%5B117313%5D%20RIEGLER%20Device%20plug%2C%2022%20mm%2C%20type%20B?unique=58b78a5)
|
Type number: 1920.9P |
1.48 € | |
![[123182] RIEGLER Device plug, 22 mm, type B, ATEX II 2 GD](/web/image/product.template/281003/image_128/%5B123182%5D%20RIEGLER%20Device%20plug%2C%2022%20mm%2C%20type%20B%2C%20ATEX%20II%202%20GD?unique=fa62d51)
|
Type number: 1920.9PL2GD-EX |
2.38 € | |
![[117316] RIEGLER Device plug with LED, 24 V, 22 mm, type B](/web/image/product.template/274841/image_128/%5B117316%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%2024%20V%2C%2022%20mm%2C%20type%20B?unique=e427774)
|
Type number: 1920.9PL.42 |
6.47 € | |
![[129849] RIEGLER Device plug with LED, varistor 110 V, 22 mm, type B](/web/image/product.template/273069/image_128/%5B129849%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%20varistor%20110%20V%2C%2022%20mm%2C%20type%20B?unique=9b770f6)
|
Type number: 1920.9PLV110 |
6.47 € | |

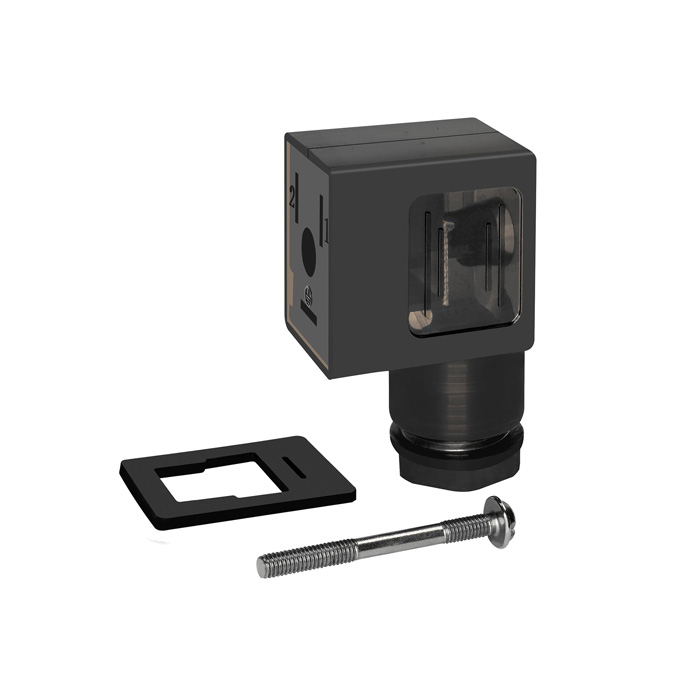

![[117317] RIEGLER Device plug with LED, varistor 230 V, 22 mm, type B](/web/image/product.template/274842/image_128/%5B117317%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%20varistor%20230%20V%2C%2022%20mm%2C%20type%20B?unique=6092b76)
|
Type number: 1920.9PLV17 |
6.47 € | |
![[117318] RIEGLER Device plug with LED, varistor 24 V, 22 mm, type B](/web/image/product.template/274843/image_128/%5B117318%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%20varistor%2024%20V%2C%2022%20mm%2C%20type%20B?unique=734b02e)
|
Type number: 1920.9PLV42 |
6.47 € | |
![[118629] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 110 V AC, 50/60 Hz, 3.5 VA](/web/image/product.template/275045/image_128/%5B118629%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%20110%20V%20AC%2C%2050-60%20Hz%2C%203.5%20VA?unique=2c2eab5)
|
Type number: 400-514-07 |
9.87 € | |
![[118634] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 110 V AC, 50/60 Hz, 5 VA](/web/image/product.template/280914/image_128/%5B118634%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%20110%20V%20AC%2C%2050-60%20Hz%2C%205%20VA?unique=8e4d94a)
|
Type number: 400-517-07 |
9.87 € | |
![[118631] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 12 V DC, 2 W](/web/image/product.template/275047/image_128/%5B118631%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2012%20V%20DC%2C%202%20W?unique=7dafea1)
|
Type number: 400-514-41 |
9.87 € | |
![[118636] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 12 V DC, 5 W](/web/image/product.template/280916/image_128/%5B118636%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2012%20V%20DC%2C%205%20W?unique=2a50399)
|
Type number: 400-517-41 |
9.87 € | |
![[118630] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 230 V AC, 50/60 Hz, 3.5 VA](/web/image/product.template/275046/image_128/%5B118630%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%20230%20V%20AC%2C%2050-60%20Hz%2C%203.5%20VA?unique=71af034)
|
Type number: 400-514-17 |
9.87 € | |
![[118635] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 230 V AC, 50/60 Hz, 5 VA](/web/image/product.template/280915/image_128/%5B118635%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%20230%20V%20AC%2C%2050-60%20Hz%2C%205%20VA?unique=fabd242)
|
Type number: 400-517-17 |
9.87 € | |
![[118628] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 24 V AC, 50/60 Hz, 3.5 VA](/web/image/product.template/275044/image_128/%5B118628%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2024%20V%20AC%2C%2050-60%20Hz%2C%203.5%20VA?unique=3cb8bec)
|
Type number: 400-514-01 |
9.87 € | |
![[118633] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 24 V AC, 50/60 Hz, 5 VA](/web/image/product.template/275049/image_128/%5B118633%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2024%20V%20AC%2C%2050-60%20Hz%2C%205%20VA?unique=976ba33)
|
Type number: 400-517-01 |
9.87 € | |

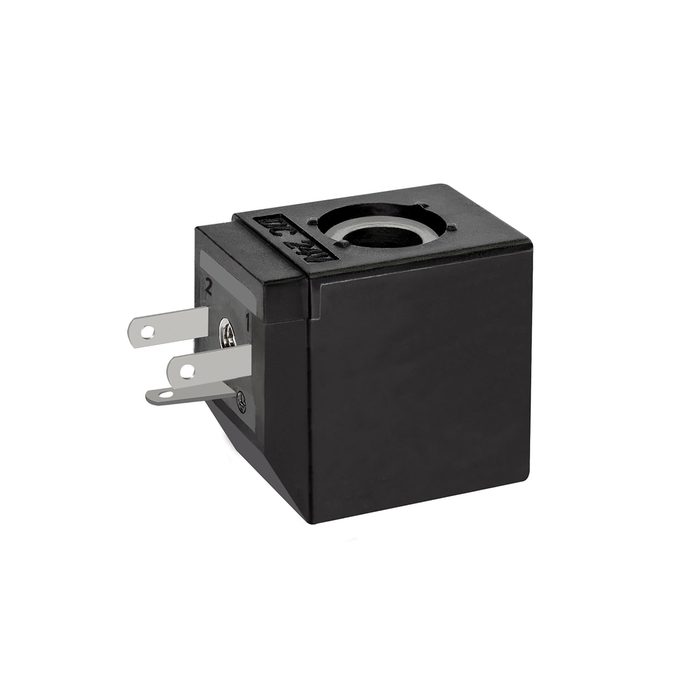

![[118632] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 24 V DC, 2 W](/web/image/product.template/275048/image_128/%5B118632%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2024%20V%20DC%2C%202%20W?unique=9613649)
|
