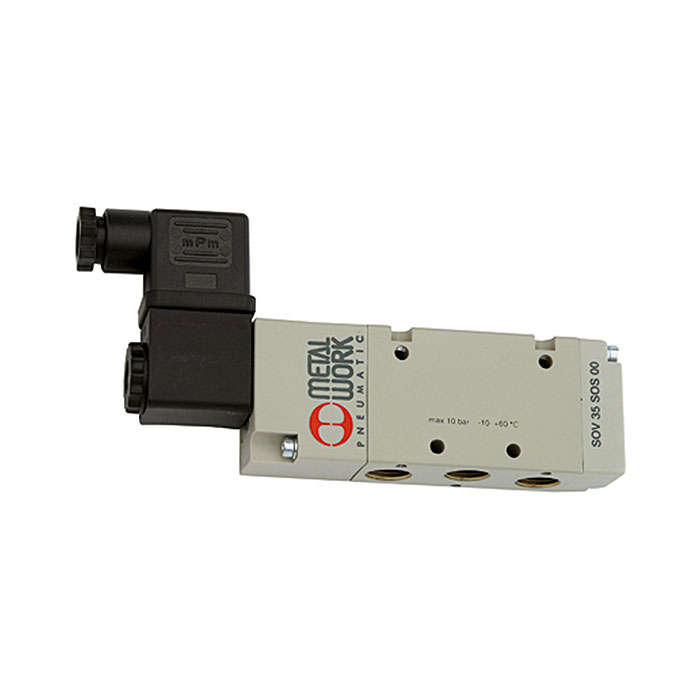

RIEGLER 5/2-way valve, electropneum., monostable, G 1/8, DN 5, 24 V DC
Type number: 517.201
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
106544EAN :
4047322097536Category :
Valves Electropneumatically OperatedWeight :
0.20 kg5/2-way valve, electropneumatic, monostable, G 1/8, DN 5, 24 V DC, operating pressure 2.5-10 bar, aluminum
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves Series 70 |
| Operating pressure min. | 2.5 bar |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Manual override | resting |
| DN | 5 |
| Function | 5/2 |
| Actuation | monostable |
| Symbol | 35 |
| Tension | 24 V DC |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 |
| RoHS material information | RoHS compliant |
| Flow rate | 400 Nl/min |
| Flow rate | 550 Nl/min |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Exception | 6b |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | AA-6026 |
| Flow rate measurement 1 | Flow rate at 6 bar and ˆ†p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and ˆ†p 1.0 bar |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[145711] RIEGLER 5/2-way valve, differential piston, electropneumatic, bistable, G 1/8](/web/image/product.template/279338/image_128/%5B145711%5D%20RIEGLER%205-2-way%20valve%2C%20differential%20piston%2C%20electropneumatic%2C%20bistable%2C%20G%201-8?unique=d67496b)
|
Type number: 7010021300 |
92.21 € | |
![[106564] RIEGLER 5/2-way valve, diff. piston, electropn., bist., G 1/8, 230 V AC](/web/image/product.template/175621/image_128/%5B106564%5D%20RIEGLER%205-2-way%20valve%2C%20diff.%20piston%2C%20electropn.%2C%20bist.%2C%20G%201-8%2C%20230%20V%20AC?unique=e3a87fb)
|
Type number: 517.224 |
104.98 € | |
![[106560] RIEGLER 5/2-way valve, diff. piston, electropn., bist., G 1/8, 24 V DC](/web/image/product.template/175617/image_128/%5B106560%5D%20RIEGLER%205-2-way%20valve%2C%20diff.%20piston%2C%20electropn.%2C%20bist.%2C%20G%201-8%2C%2024%20V%20DC?unique=9378021)
|
Type number: 517.221 |
104.98 € | |
![[145862] RIEGLER 5/2-way valve, diff. piston, electropneumatic, bistable, G 1/8, 110VAC](/web/image/product.template/275786/image_128/%5B145862%5D%20RIEGLER%205-2-way%20valve%2C%20diff.%20piston%2C%20electropneumatic%2C%20bistable%2C%20G%201-8%2C%20110VAC?unique=a45f4fd)
|
Type number: 517.52.18.D.110A |
104.98 € | |
![[145861] RIEGLER 5/2-way valve, diff. piston, electropneumatic, bistable, G 1/8, 24 V AC](/web/image/product.template/275785/image_128/%5B145861%5D%20RIEGLER%205-2-way%20valve%2C%20diff.%20piston%2C%20electropneumatic%2C%20bistable%2C%20G%201-8%2C%2024%20V%20AC?unique=5b53772)
|
Type number: 517.52.18.D.24A |
104.98 € | |
![[145860] RIEGLER 5/2-way valve, diff. spool, electropneumatic, bistable, G 1/8, 12 V DC](/web/image/product.template/275784/image_128/%5B145860%5D%20RIEGLER%205-2-way%20valve%2C%20diff.%20spool%2C%20electropneumatic%2C%20bistable%2C%20G%201-8%2C%2012%20V%20DC?unique=b289ff3)
|
Type number: 517.52.18.D.12D |
104.98 € | |
![[145707] RIEGLER 5/2-way valve, electropneumatic, bistable, G 1/8](/web/image/product.template/279334/image_128/%5B145707%5D%20RIEGLER%205-2-way%20valve%2C%20electropneumatic%2C%20bistable%2C%20G%201-8?unique=3ca14e8)
|
Type number: 7010021200 |
92.00 € | |
![[145859] RIEGLER 5/2-way valve, electropneumatic, bistable, G 1/8, 110 V AC](/web/image/product.template/275783/image_128/%5B145859%5D%20RIEGLER%205-2-way%20valve%2C%20electropneumatic%2C%20bistable%2C%20G%201-8%2C%20110%20V%20AC?unique=79a6b75)
|
Type number: 517.52.18.B.110A |
102.07 € | |
![[145857] RIEGLER 5/2-way valve, electropneumatic, bistable, G 1/8, 12 V DC](/web/image/product.template/275781/image_128/%5B145857%5D%20RIEGLER%205-2-way%20valve%2C%20electropneumatic%2C%20bistable%2C%20G%201-8%2C%2012%20V%20DC?unique=e6e130b)
|
Type number: 517.52.18.B.12D |
102.07 € | |
![[145858] RIEGLER 5/2-way valve, electropneumatic, bistable, G 1/8, 24 V AC](/web/image/product.template/275782/image_128/%5B145858%5D%20RIEGLER%205-2-way%20valve%2C%20electropneumatic%2C%20bistable%2C%20G%201-8%2C%2024%20V%20AC?unique=793114f)
|
Type number: 517.52.18.B.24A |
102.07 € | |
![[147125] RIEGLER 5/2-way valve, electropneumatic, ext. control air, bistable, G 1/8](/web/image/product.template/284067/image_128/%5B147125%5D%20RIEGLER%205-2-way%20valve%2C%20electropneumatic%2C%20ext.%20control%20air%2C%20bistable%2C%20G%201-8?unique=b1219fe)
|
Typennummer: 7010021600 |
96.56 € | |
![[147121] RIEGLER 5/2-way valve, electropneumatic, ext. control air, monostable, G 1/8](/web/image/product.template/284063/image_128/%5B147121%5D%20RIEGLER%205-2-way%20valve%2C%20electropneumatic%2C%20ext.%20control%20air%2C%20monostable%2C%20G%201-8?unique=196149c)
|
Typennummer: 7010021500 |
68.34 € | |
![[145703] RIEGLER 5/2-way valve, electropneumatic, monostable, G 1/8](/web/image/product.template/279330/image_128/%5B145703%5D%20RIEGLER%205-2-way%20valve%2C%20electropneumatic%2C%20monostable%2C%20G%201-8?unique=ec8fadc)
|
Type number: 7010021100 |
64.87 € | |

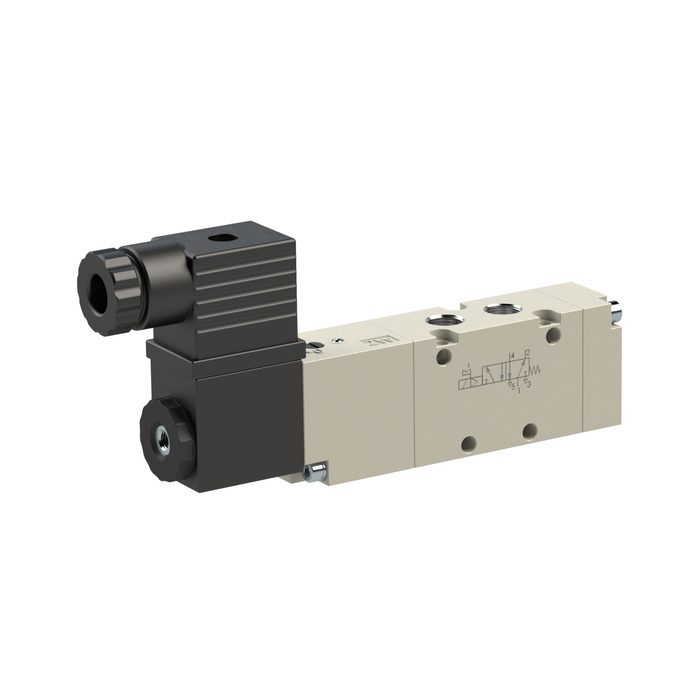

![[145856] RIEGLER 5/2-way valve, electropneumatic, monostable, G 1/8, 110 V AC](/web/image/product.template/275780/image_128/%5B145856%5D%20RIEGLER%205-2-way%20valve%2C%20electropneumatic%2C%20monostable%2C%20G%201-8%2C%20110%20V%20AC?unique=b01dca7)
|
Type number: 517.52.18.M.110A |
77.27 € | |
![[145854] RIEGLER 5/2-way valve, electropneumatic, monostable, G 1/8, 12 V DC](/web/image/product.template/275778/image_128/%5B145854%5D%20RIEGLER%205-2-way%20valve%2C%20electropneumatic%2C%20monostable%2C%20G%201-8%2C%2012%20V%20DC?unique=3cd8121)
|
Type number: 517.52.18.M.12D |
77.27 € | |
![[145855] RIEGLER 5/2-way valve, electropneumatic, monostable, G 1/8, 24 V AC](/web/image/product.template/275779/image_128/%5B145855%5D%20RIEGLER%205-2-way%20valve%2C%20electropneumatic%2C%20monostable%2C%20G%201-8%2C%2024%20V%20AC?unique=c3028a9)
|
Type number: 517.52.18.M.24A |
77.27 € | |
![[106556] RIEGLER 5/2-way valve, electropneum., bistable, G 1/8, DN 5, 230 V AC](/web/image/product.template/175613/image_128/%5B106556%5D%20RIEGLER%205-2-way%20valve%2C%20electropneum.%2C%20bistable%2C%20G%201-8%2C%20DN%205%2C%20230%20V%20AC?unique=830bf01)
|
Type number: 517.214 |
102.07 € | |
![[106552] RIEGLER 5/2-way valve, electropneum., bistable, G 1/8, DN 5, 24 V DC](/web/image/product.template/175609/image_128/%5B106552%5D%20RIEGLER%205-2-way%20valve%2C%20electropneum.%2C%20bistable%2C%20G%201-8%2C%20DN%205%2C%2024%20V%20DC?unique=e7e1e26)
|
Type number: 517.211 |
102.07 € | |
![[106548] RIEGLER 5/2-way valve, electropneum., monostable, G 1/8, 230 V AC](/web/image/product.template/175605/image_128/%5B106548%5D%20RIEGLER%205-2-way%20valve%2C%20electropneum.%2C%20monostable%2C%20G%201-8%2C%20230%20V%20AC?unique=c7cb6cf)
|
Type number: 517.204 |
77.27 € | |
![[147299] RIEGLER 5/2-way valve, elpn., ext. control air, bistable, G 1/8, 110 V AC](/web/image/product.template/284194/image_128/%5B147299%5D%20RIEGLER%205-2-way%20valve%2C%20elpn.%2C%20ext.%20control%20air%2C%20bistable%2C%20G%201-8%2C%20110%20V%20AC?unique=e504cb8)
|
Typennummer: 517.52.18.E.B.110A |
109.38 € | |
![[147291] RIEGLER 5/2-way valve, elpn., ext. control air, bistable, G 1/8, 12 V DC](/web/image/product.template/284186/image_128/%5B147291%5D%20RIEGLER%205-2-way%20valve%2C%20elpn.%2C%20ext.%20control%20air%2C%20bistable%2C%20G%201-8%2C%2012%20V%20DC?unique=19d61ed)
|
Typennummer: 517.52.18.E.B.12D |
109.38 € | |
![[147287] RIEGLER 5/2-way valve, elpn., ext. control air, bistable, G 1/8, 230 V AC](/web/image/product.template/284182/image_128/%5B147287%5D%20RIEGLER%205-2-way%20valve%2C%20elpn.%2C%20ext.%20control%20air%2C%20bistable%2C%20G%201-8%2C%20230%20V%20AC?unique=b8e76bc)
|
Typennummer: 517.52.18.E.B.230A |
109.38 € | |
![[147295] RIEGLER 5/2-way valve, elpn., ext. control air, bistable, G 1/8, 24 V AC](/web/image/product.template/284190/image_128/%5B147295%5D%20RIEGLER%205-2-way%20valve%2C%20elpn.%2C%20ext.%20control%20air%2C%20bistable%2C%20G%201-8%2C%2024%20V%20AC?unique=b58495d)
|
Typennummer: 517.52.18.E.B.24A |
109.38 € | |
![[147283] RIEGLER 5/2-way valve, elpn., ext. control air, bistable, G 1/8, 24 V DC](/web/image/product.template/284178/image_128/%5B147283%5D%20RIEGLER%205-2-way%20valve%2C%20elpn.%2C%20ext.%20control%20air%2C%20bistable%2C%20G%201-8%2C%2024%20V%20DC?unique=cef49d7)
|
Typennummer: 517.52.18.E.B.24D |
109.38 € | |
![[147279] RIEGLER 5/2-way valve, elpn., ext. control, monostable, G 1/8, 110 V AC](/web/image/product.template/284174/image_128/%5B147279%5D%20RIEGLER%205-2-way%20valve%2C%20elpn.%2C%20ext.%20control%2C%20monostable%2C%20G%201-8%2C%20110%20V%20AC?unique=3516079)
|
Typennummer: 517.52.18.E.M.110A |
79.67 € | |
![[147271] RIEGLER 5/2-way valve, elpn., ext. control, monostable, G 1/8, 12 V DC](/web/image/product.template/284166/image_128/%5B147271%5D%20RIEGLER%205-2-way%20valve%2C%20elpn.%2C%20ext.%20control%2C%20monostable%2C%20G%201-8%2C%2012%20V%20DC?unique=42eb40c)
|
Typennummer: 517.52.18.E.M.12D |
79.67 € | |
![[147267] RIEGLER 5/2-way valve, elpn., ext. control, monostable, G 1/8, 230 V AC](/web/image/product.template/284162/image_128/%5B147267%5D%20RIEGLER%205-2-way%20valve%2C%20elpn.%2C%20ext.%20control%2C%20monostable%2C%20G%201-8%2C%20230%20V%20AC?unique=75da973)
|
Typennummer: 517.52.18.E.M.230A |
79.67 € | |
![[147275] RIEGLER 5/2-way valve, elpn., ext. control, monostable, G 1/8, 24 V AC](/web/image/product.template/284170/image_128/%5B147275%5D%20RIEGLER%205-2-way%20valve%2C%20elpn.%2C%20ext.%20control%2C%20monostable%2C%20G%201-8%2C%2024%20V%20AC?unique=f615e39)
|
Typennummer: 517.52.18.E.M.24A |
79.67 € | |
![[147263] RIEGLER 5/2-way valve, elpn., ext. control, monostable, G 1/8, 24 V DC](/web/image/product.template/284158/image_128/%5B147263%5D%20RIEGLER%205-2-way%20valve%2C%20elpn.%2C%20ext.%20control%2C%20monostable%2C%20G%201-8%2C%2024%20V%20DC?unique=bd088b1)
|
Typennummer: 517.52.18.E.M.24D |
79.67 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[106604] RIEGLER Mounting bracket set for way valves, Height 120 mm, G 1/8](/web/image/product.template/175661/image_128/%5B106604%5D%20RIEGLER%20Mounting%20bracket%20set%20for%20way%20valves%2C%20Height%20120%20mm%2C%20G%201-8?unique=c07cdef)
|
Type number: 518.120-18 |
16.81 € | |
![[106605] RIEGLER Mounting bracket set for way valves, Height 60 mm, G 1/8](/web/image/product.template/175662/image_128/%5B106605%5D%20RIEGLER%20Mounting%20bracket%20set%20for%20way%20valves%2C%20Height%2060%20mm%2C%20G%201-8?unique=920d1eb)
|
Type number: 518.60-18 |
15.40 € | |

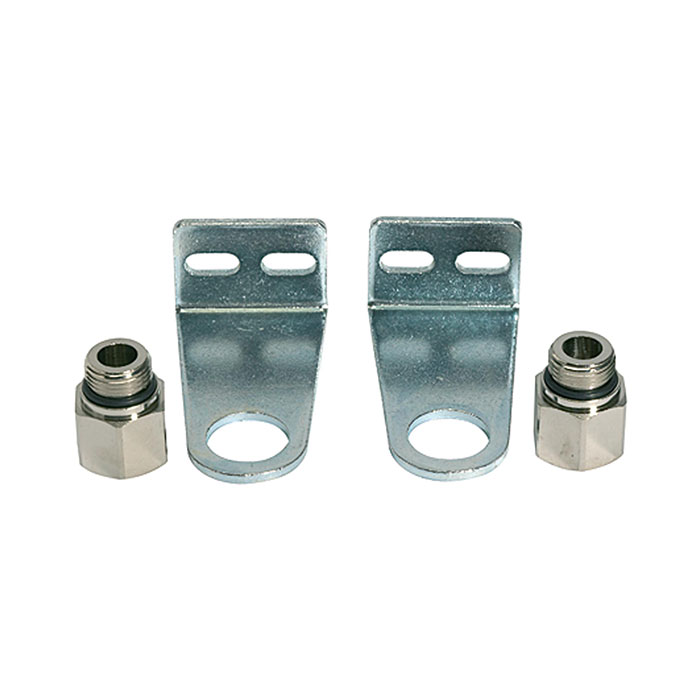

![[106606] RIEGLER Mounting bracket set for way valves, Height 30 mm, G 1/8](/web/image/product.template/175663/image_128/%5B106606%5D%20RIEGLER%20Mounting%20bracket%20set%20for%20way%20valves%2C%20Height%2030%20mm%2C%20G%201-8?unique=cd52e59)
|
Type number: 518.30-18 |
15.40 € | |

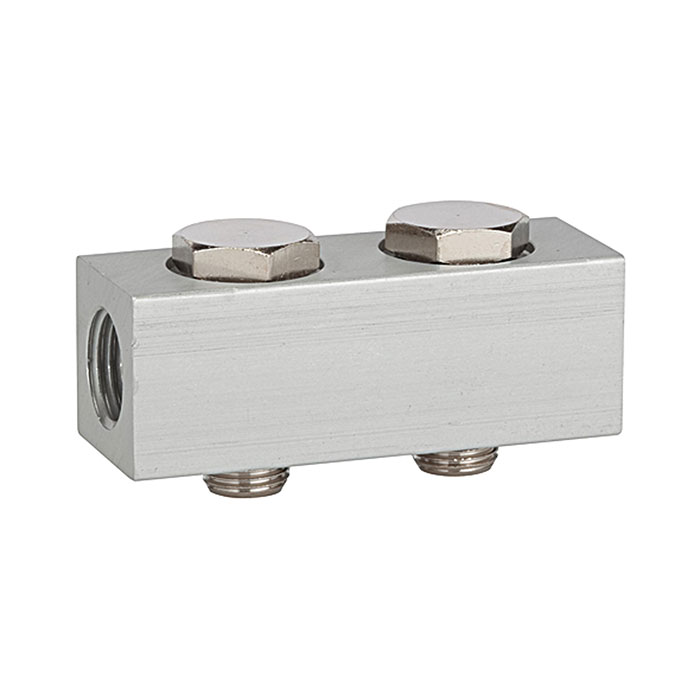

![[106610] RIEGLER Supply strip for the way valves, with 2 valve positions, G 1/8](/web/image/product.template/175667/image_128/%5B106610%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%202%20valve%20positions%2C%20G%201-8?unique=4758217)
|
Type number: 518.02-18 |
14.66 € | |
![[106611] RIEGLER Supply strip for the way valves, with 3 valve positions, G 1/8](/web/image/product.template/175668/image_128/%5B106611%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%203%20valve%20positions%2C%20G%201-8?unique=545bbe3)
|
Type number: 518.03-18 |
20.06 € | |

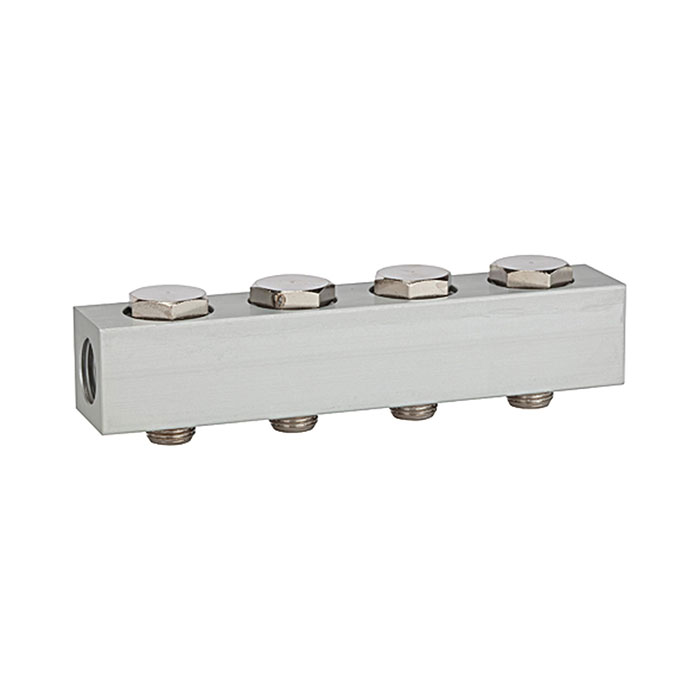

![[106612] RIEGLER Supply strip for the way valves, with 4 valve positions, G 1/8](/web/image/product.template/175669/image_128/%5B106612%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%204%20valve%20positions%2C%20G%201-8?unique=a68f6ca)
|
Type number: 518.04-18 |
24.69 € | |

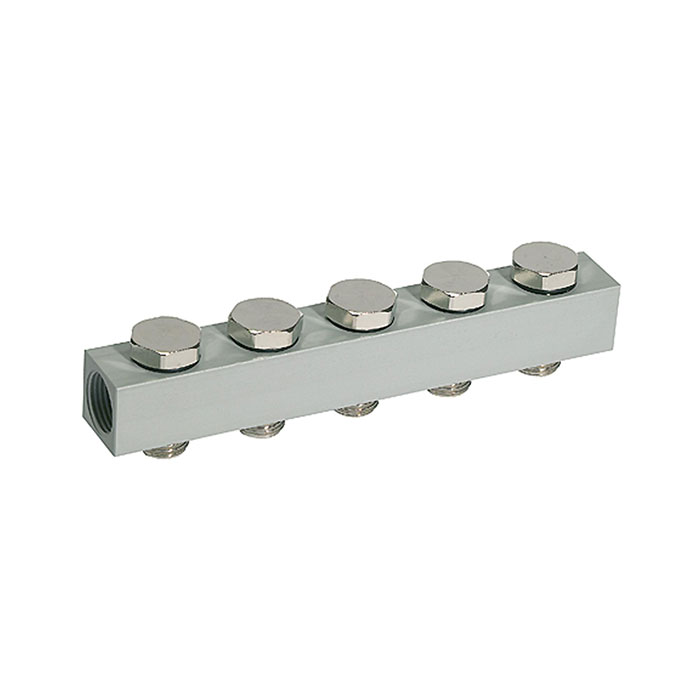

![[106613] RIEGLER Supply strip for the way valves, with 5 valve positions, G 1/8](/web/image/product.template/175670/image_128/%5B106613%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%205%20valve%20positions%2C%20G%201-8?unique=a71b33e)
|
Type number: 518.05-18 |
29.94 € | |

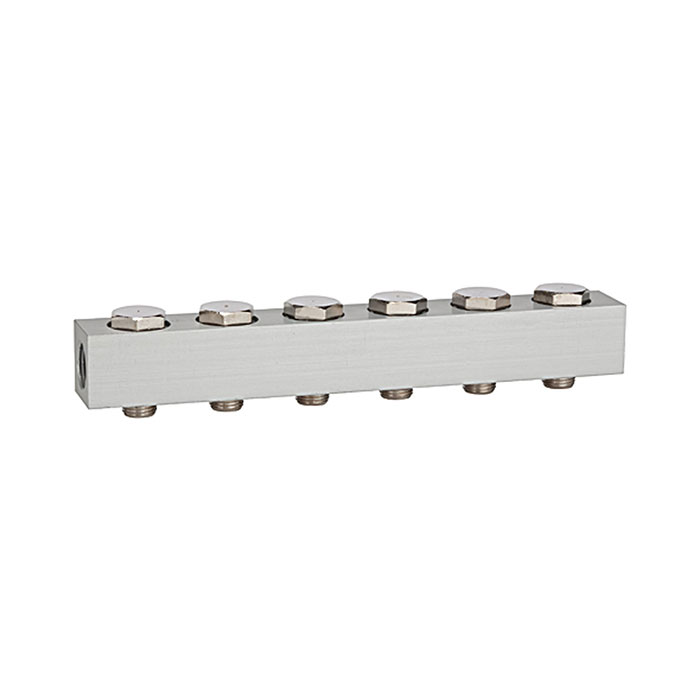

![[106614] RIEGLER Supply strip for the way valves, with 6 valve positions, G 1/8](/web/image/product.template/175671/image_128/%5B106614%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%206%20valve%20positions%2C%20G%201-8?unique=0180b66)
|
Type number: 518.06-18 |
38.00 € | |

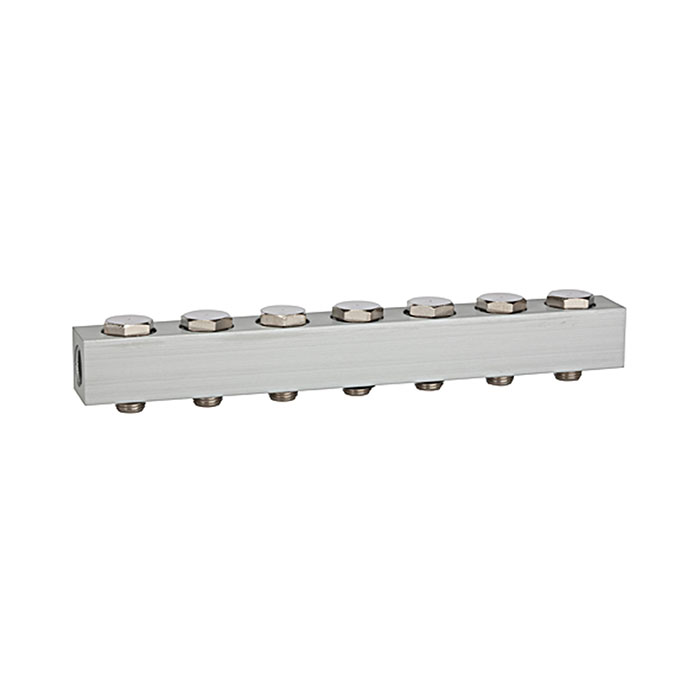

![[106615] RIEGLER Supply strip for the way valves, with 7 valve positions, G 1/8](/web/image/product.template/175672/image_128/%5B106615%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%207%20valve%20positions%2C%20G%201-8?unique=021d4c7)
|
Type number: 518.07-18 |
47.09 € | |

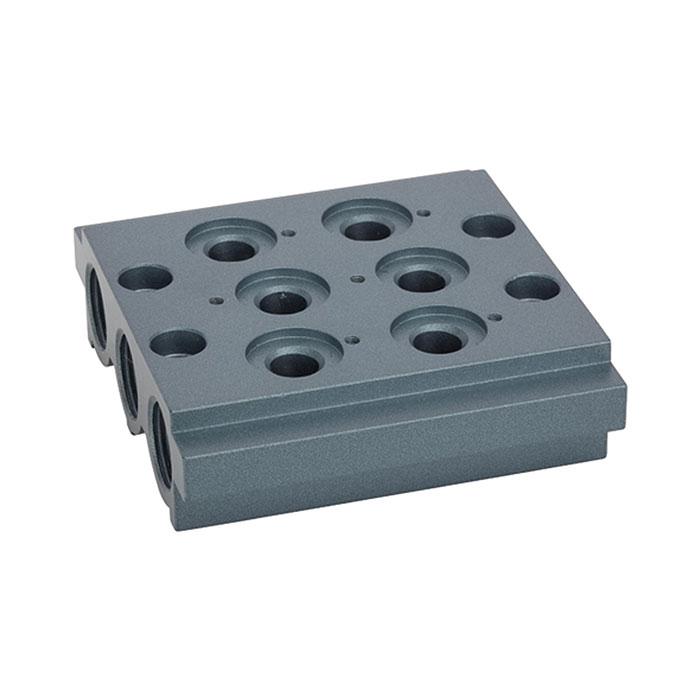

![[106622] RIEGLER Multi-base plate for the way valves, 2 valve positions, G 1/8](/web/image/product.template/175679/image_128/%5B106622%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%202%20valve%20positions%2C%20G%201-8?unique=80bd4c3)
|
Type number: 520.02-18 |
46.54 € | |

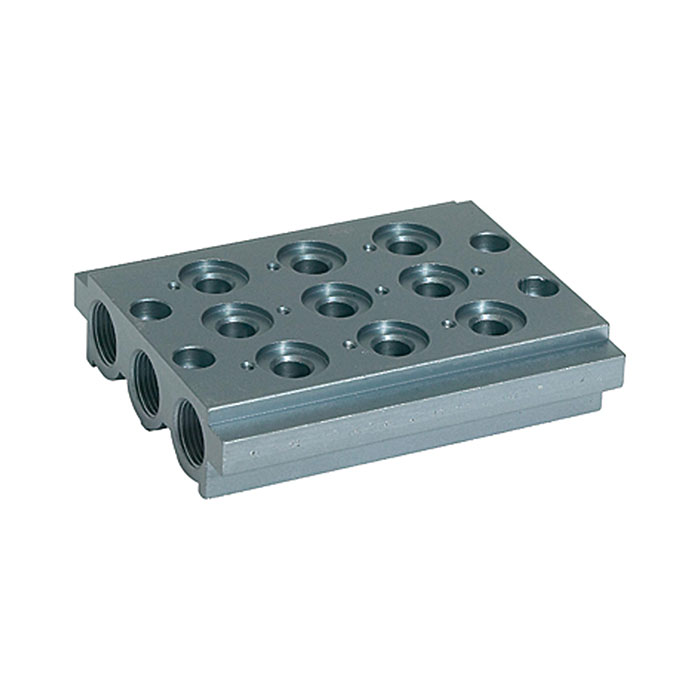

![[106623] RIEGLER Multi-base plate for the way valves, 3 valve positions, G 1/8](/web/image/product.template/175680/image_128/%5B106623%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%203%20valve%20positions%2C%20G%201-8?unique=7c60de4)
|
Type number: 520.03-18 |
57.17 € | |
![[106624] RIEGLER Multi-base plate for the way valves, 4 valve positions, G 1/8](/web/image/product.template/175681/image_128/%5B106624%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%204%20valve%20positions%2C%20G%201-8?unique=26aeb4a)
|
Type number: 520.04-18 |
68.00 € | |

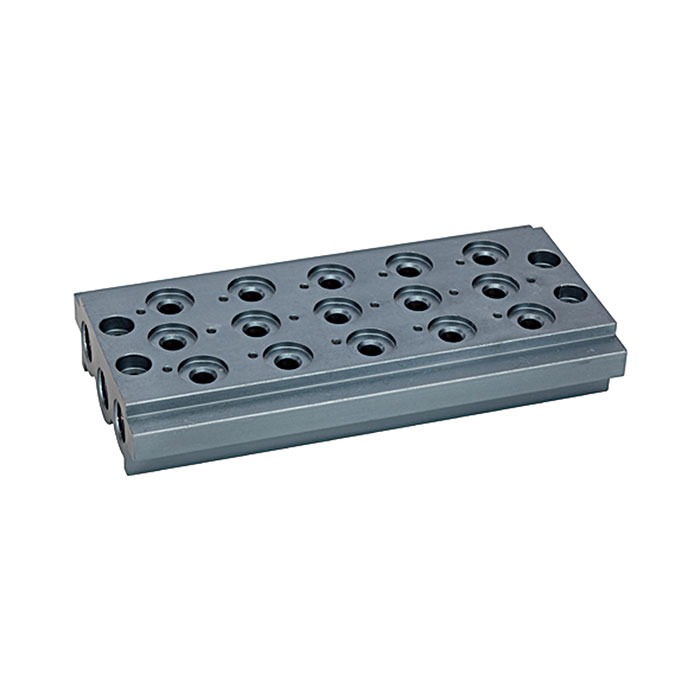

![[106625] RIEGLER Multi-base plate for the way valves, 5 valve positions, G 1/8](/web/image/product.template/175682/image_128/%5B106625%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%205%20valve%20positions%2C%20G%201-8?unique=a909ad5)
|
Type number: 520.05-18 |
77.43 € | |
![[106626] RIEGLER Multi-base plate for the way valves, 6 valve positions, G 1/8](/web/image/product.template/175683/image_128/%5B106626%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%206%20valve%20positions%2C%20G%201-8?unique=4e439d9)
|
Type number: 520.06-18 |
92.87 € | |

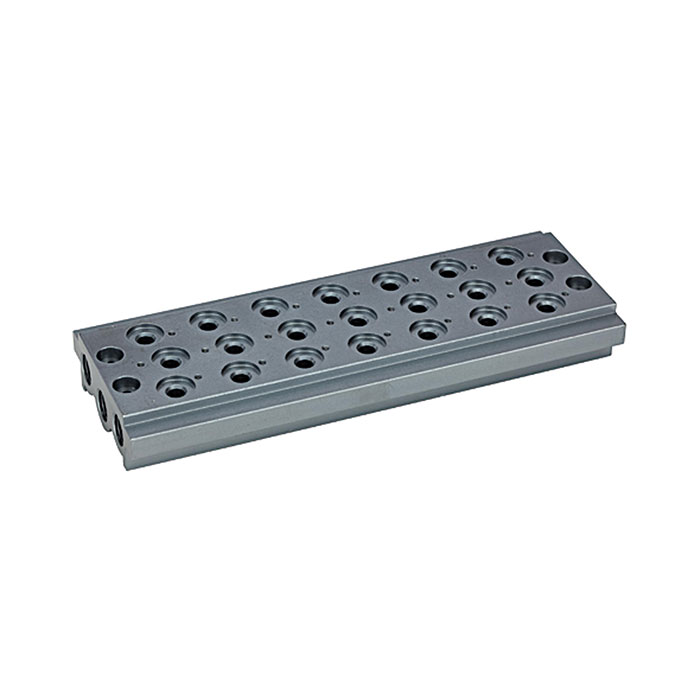

![[106627] RIEGLER Multi-base plate for the way valves, 7 valve positions, G 1/8](/web/image/product.template/175684/image_128/%5B106627%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%207%20valve%20positions%2C%20G%201-8?unique=b3b10ef)
|
Type number: 520.07-18 |
101.44 € | |

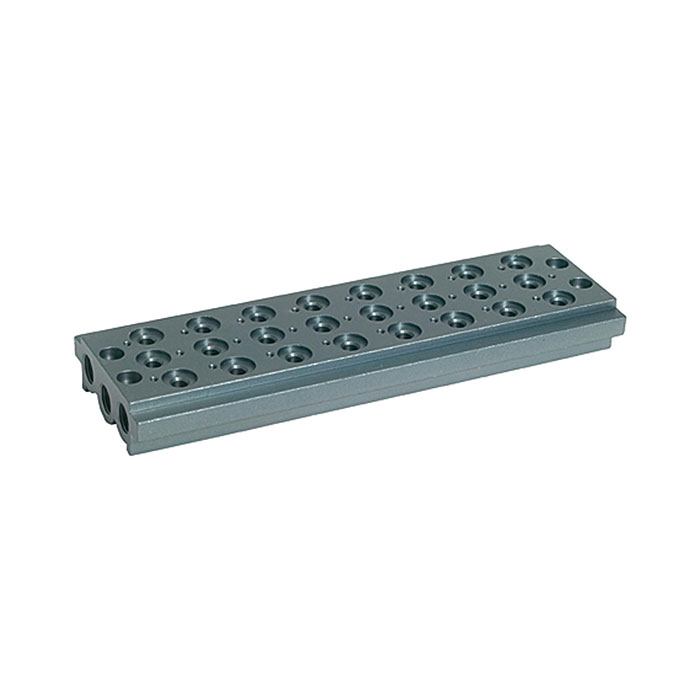

![[106628] RIEGLER Multi-base plate for the way valves, 8 valve positions, G 1/8](/web/image/product.template/175685/image_128/%5B106628%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%208%20valve%20positions%2C%20G%201-8?unique=ed6f9a6)
|
Type number: 520.08-18 |
116.42 € | |

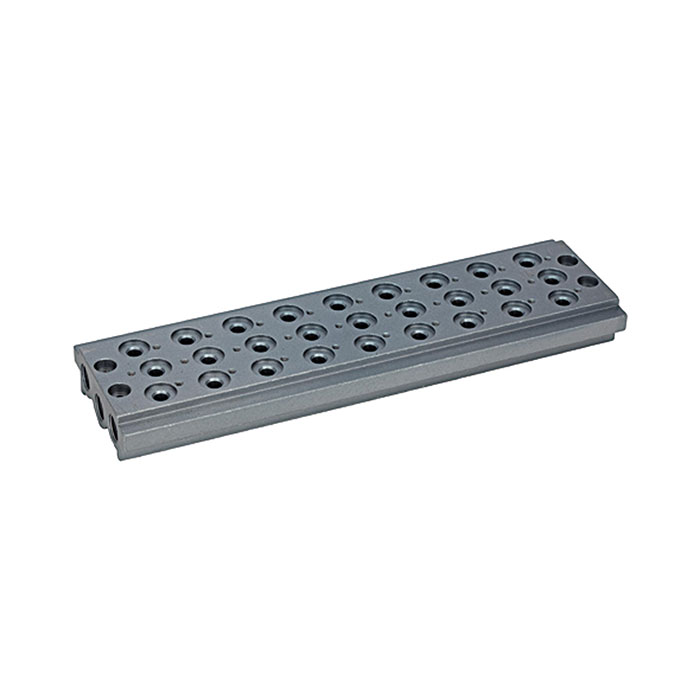

![[106629] RIEGLER Multi-base plate for the way valves, 9 valve positions, G 1/8](/web/image/product.template/175686/image_128/%5B106629%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%209%20valve%20positions%2C%20G%201-8?unique=6ba311e)
|
Type number: 520.09-18 |
139.68 € | |

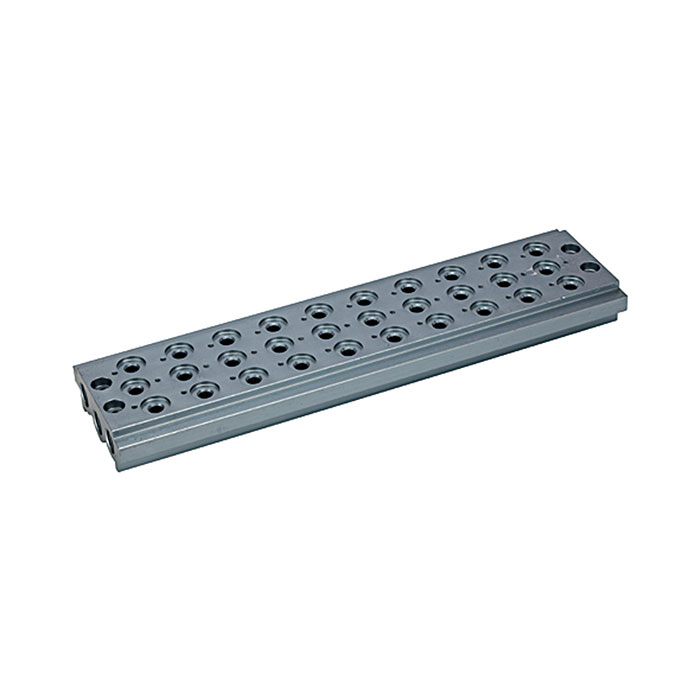

![[106630] RIEGLER Multi-base plate for the way valves, 10 valve positions, G 1/8](/web/image/product.template/175687/image_128/%5B106630%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%2010%20valve%20positions%2C%20G%201-8?unique=1dd01f3)
|
Type number: 520.10-18 |
174.50 € | |

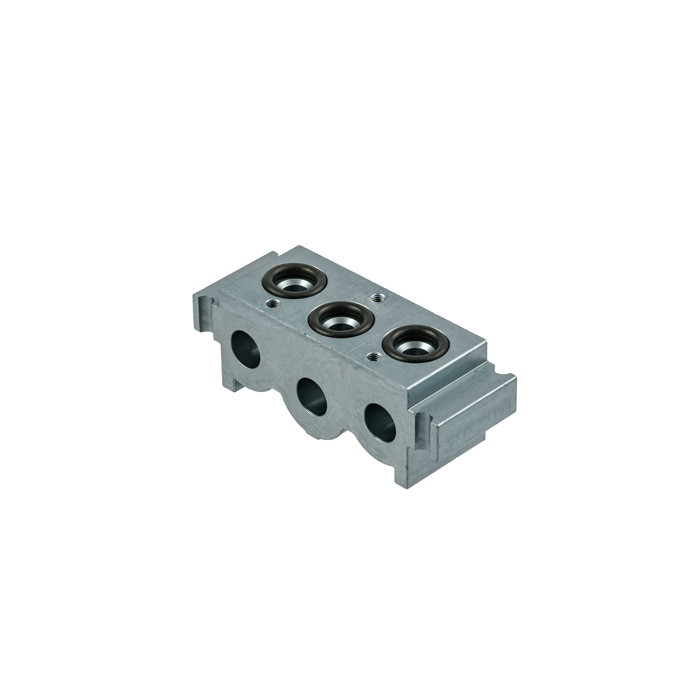

![[146733] RIEGLER Modular base plate for valves G 1/8, base plate system](/web/image/product.template/275984/image_128/%5B146733%5D%20RIEGLER%20Modular%20base%20plate%20for%20valves%20G%201-8%2C%20base%20plate%20system?unique=d75980e)
|
Typennummer: 0226004150 |
15.86 € | |
![[146734] RIEGLER Outlet plate without seals, G 1/8, base plate system](/web/image/product.template/275985/image_128/%5B146734%5D%20RIEGLER%20Outlet%20plate%20without%20seals%2C%20G%201-8%2C%20base%20plate%20system?unique=0a011b5)
|
Typennummer: 0226004201 |
11.52 € | |

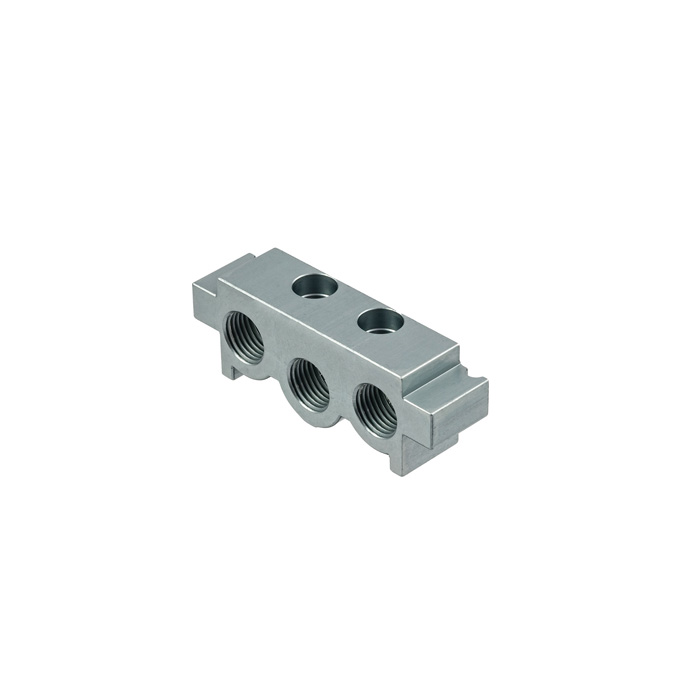

![[146735] RIEGLER Inlet plate with seals, G 1/8, base plate system](/web/image/product.template/275986/image_128/%5B146735%5D%20RIEGLER%20Inlet%20plate%20with%20seals%2C%20G%201-8%2C%20base%20plate%20system?unique=142ecce)
|
Typennummer: 0226004200 |
14.92 € | |

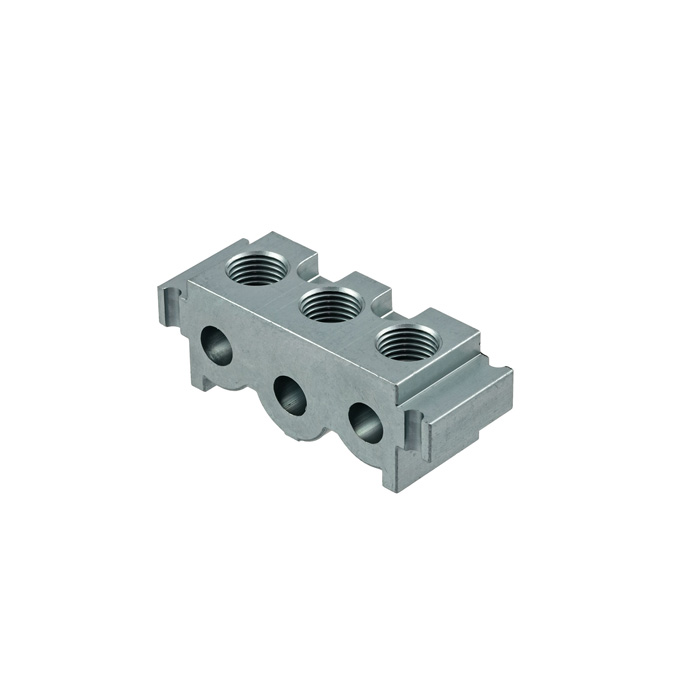

![[146736] RIEGLER Intermediate plate, G 1/8, base plate system](/web/image/product.template/275987/image_128/%5B146736%5D%20RIEGLER%20Intermediate%20plate%2C%20G%201-8%2C%20base%20plate%20system?unique=efb8e26)
|
