RIEGLER Pneumatically piloted stop valve, G 1/8, G 1/8 i., M5
Type number: 63.018-18
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pneumatic pilot operated check valve made of nickel-plated brass, for industrial systems - Type 63.018-18
The RIEGLER pneumatic pilot operated non-return valve, G 1/8, G 1/8 i., M5 regulates or blocks the flow of media in industrial pipelines. The housing is made of nickel-plated brass with NBR seals. The operating pressure range is 0.3 bar to 10 bar. The permissible medium temperature is between -10 °C and 60 °C. M5 connection thread - suitable for common industry standards. Reliable media control.
Field of application
Typical areas of application: Compressed air, gases and liquids.
| Sealing material | NBR |
| Operating pressure min. | 0.3 bar |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Material | Nickel-plated brass |
| Installation position | any, position ring piece before tightening |
| Connection | G 1/8 |
| Connection | G 1/8 |
| Connection | M5 |

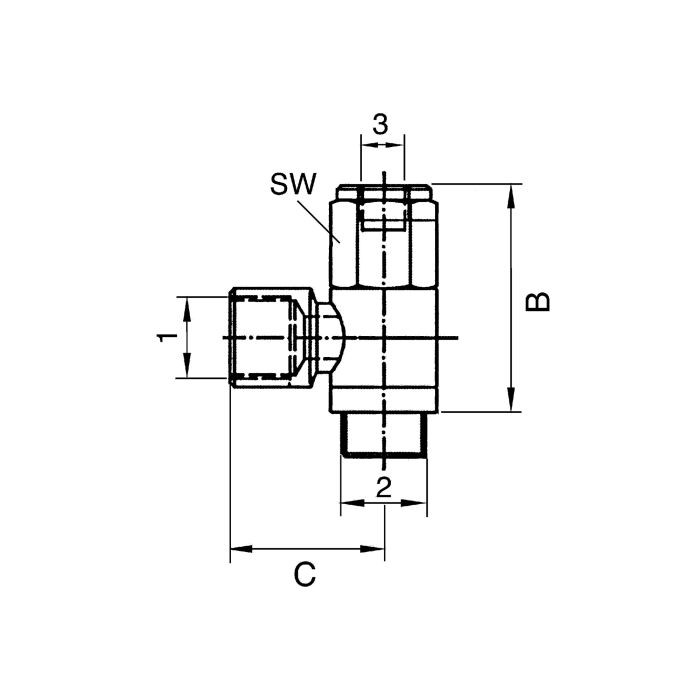

| B | 38 mm |
| C | 21.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[107060] RIEGLER Pneumatically piloted stop valve, G 1/2, G 1/2 i., G 1/8](/web/image/product.template/176117/image_128/%5B107060%5D%20RIEGLER%20Pneumatically%20piloted%20stop%20valve%2C%20G%201-2%2C%20G%201-2%20i.%2C%20G%201-8?unique=1c32ed5)
|
Type number: 63.012-12 |
89.62 € | |
![[107058] RIEGLER Pneumatically piloted stop valve, G 1/4, G 1/4 i., G 1/8](/web/image/product.template/176115/image_128/%5B107058%5D%20RIEGLER%20Pneumatically%20piloted%20stop%20valve%2C%20G%201-4%2C%20G%201-4%20i.%2C%20G%201-8?unique=d342345)
|
Type number: 63.014-14 |
47.28 € | |

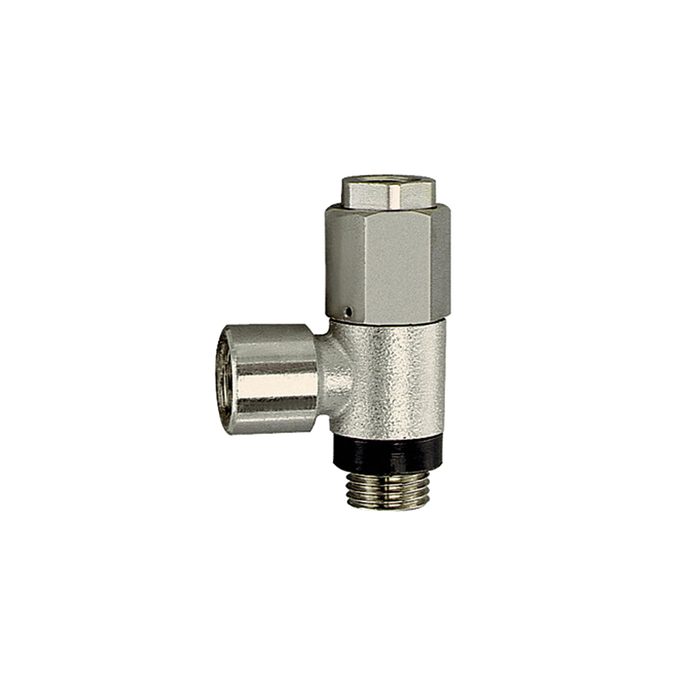

![[107059] RIEGLER Pneumatically piloted stop valve, G 3/8, G 3/8 i., G 1/8](/web/image/product.template/176116/image_128/%5B107059%5D%20RIEGLER%20Pneumatically%20piloted%20stop%20valve%2C%20G%203-8%2C%20G%203-8%20i.%2C%20G%201-8?unique=5dbb547)
|
