RIEGLER Pneumatically piloted stop valve, G 1/4, G 1/4 i., G 1/8
Type number: 63.014-14
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.

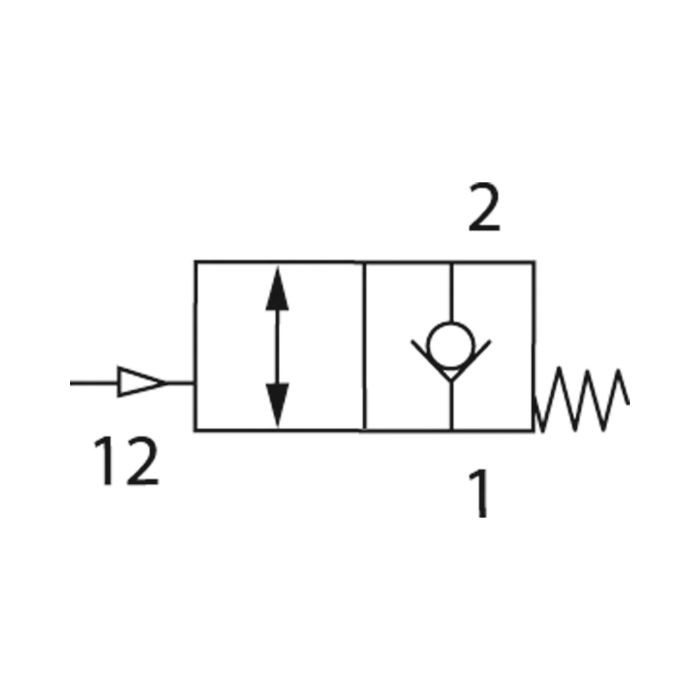

Pneumatic pilot operated check valve G 1/4, G 1/4 i., G 1/8, working pressure 0.3-10 bar, temp. -10°C to 60°C, MS nickel-plated.
| Sealing material | NBR |
| Operating pressure min. | 0.3 bar |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Material | Nickel-plated brass |
| Installation position | any, position ring piece before tightening |
| Connection | G 1/4 |
| Connection | G 1/4 |
| Connection | G 1/8 |

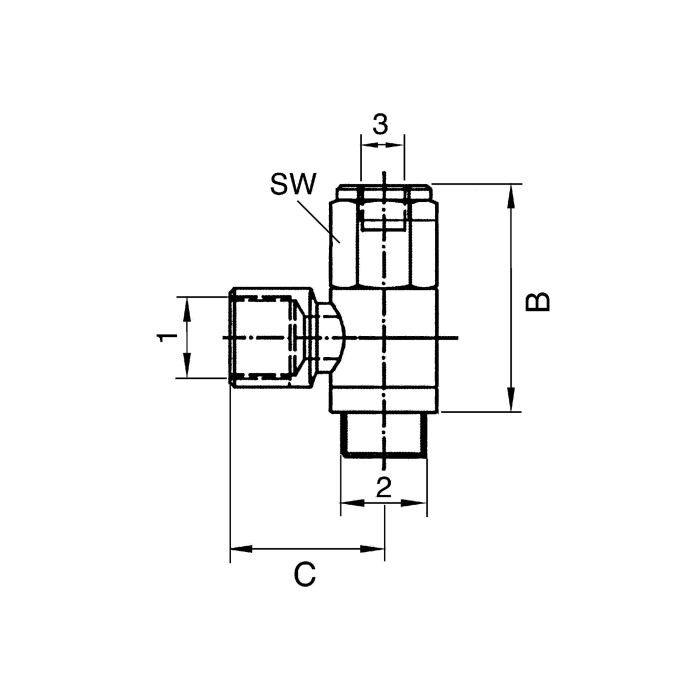

| B | 43 mm |
| C | 25.4 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[107060] RIEGLER Pneumatically piloted stop valve, G 1/2, G 1/2 i., G 1/8](/web/image/product.template/176117/image_128/%5B107060%5D%20RIEGLER%20Pneumatically%20piloted%20stop%20valve%2C%20G%201-2%2C%20G%201-2%20i.%2C%20G%201-8?unique=91be16d)
|
Type number: 63.012-12 |
90.86 € | |
![[107057] RIEGLER Pneumatically piloted stop valve, G 1/8, G 1/8 i., M5](/web/image/product.template/176114/image_128/%5B107057%5D%20RIEGLER%20Pneumatically%20piloted%20stop%20valve%2C%20G%201-8%2C%20G%201-8%20i.%2C%20M5?unique=33001c3)
|
Type number: 63.018-18 |
40.77 € | |

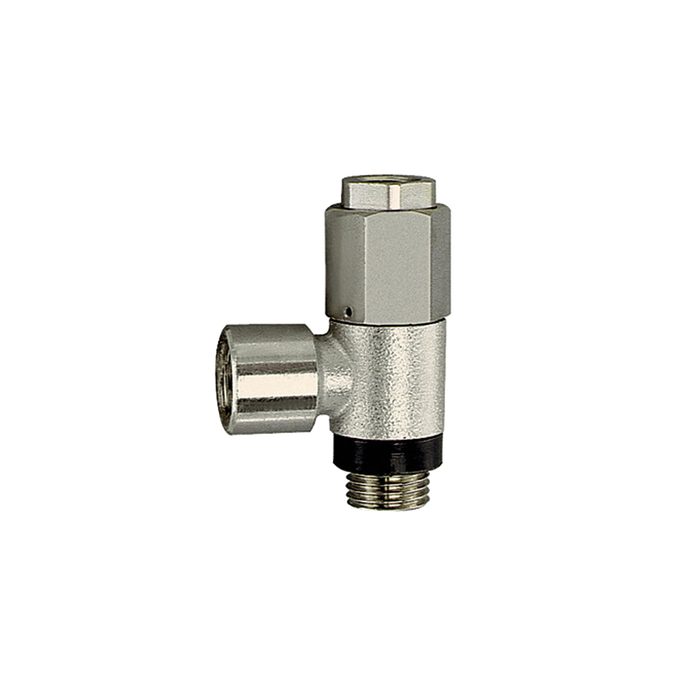

![[107059] RIEGLER Pneumatically piloted stop valve, G 3/8, G 3/8 i., G 1/8](/web/image/product.template/176116/image_128/%5B107059%5D%20RIEGLER%20Pneumatically%20piloted%20stop%20valve%2C%20G%203-8%2C%20G%203-8%20i.%2C%20G%201-8?unique=f022d48)
|
