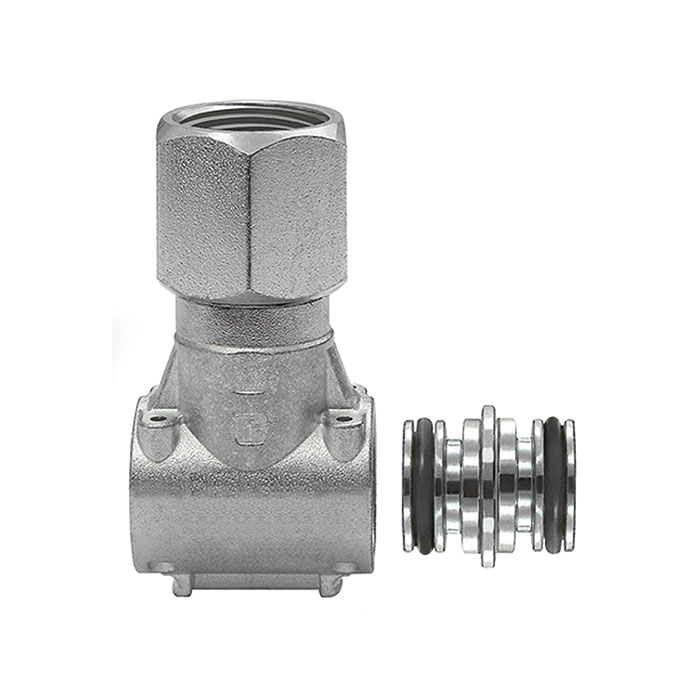

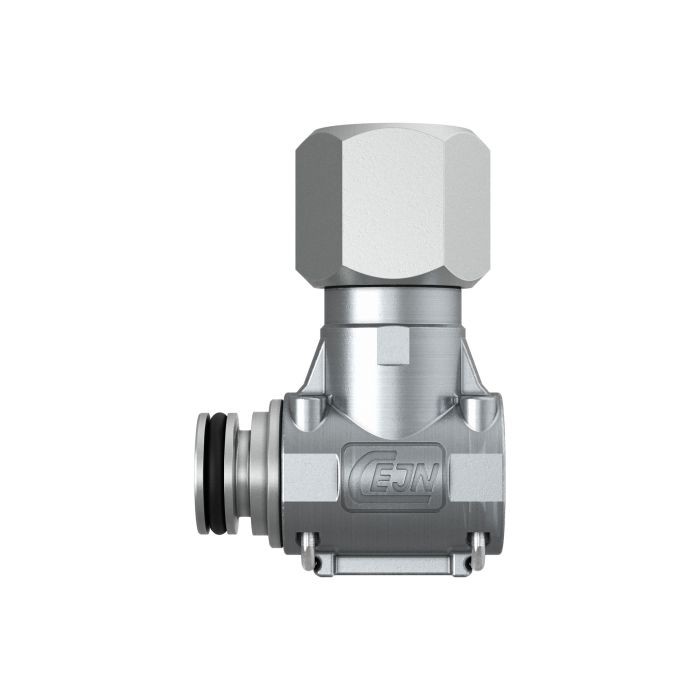

RIEGLER Intermediate segment »Multi-Link«, Segment G 1/2, Removal unit 1

Price:

37.70 €

English (US)
  2. Shop
  3. Compressed Air Distributor System »Multi-Link«
  4. RIEGLER Intermediate segment »Multi-Link«, Segment G 1/2, Removal unit 1
RIEGLER Intermediate segment »Multi-Link«, Safety coupling I.D. 7.6
RIEGLER Intermediate segment »Multi-Link«, Safety coupling I.D. 7.6
55.37 € 55.37 €
RIEGLER Compressed air distributor »Multi-Link«, without coupling, 1 unit
RIEGLER Compressed air distributor »Multi-Link«, without coupling, 1 unit
79.50 € 79.50 €

RIEGLER Intermediate segment »Multi-Link«, Segment G 1/2, Removal unit 1

https://www.filcom-technik.de/web/image/product.template/191317/image_1920?unique=6b62897

Type number: ZS-12

37.70 € 37.7 EUR 37.70 € VAT Included

44.00 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

107403

EAN :

4047322350969

Category :

Compressed Air Distributor System »Multi-Link«

Weight :

0.14 kg

RIEGLER Intermediate segment "Multi-Link" made of galvanized steel / brass, for pipeline construction - type ZS-12

The RIEGLER intermediate segment "Multi-Link", segment G 1/2, tapping unit 1 branches a compressed air line to several outlets. The housing is made of galvanized steel / brass with NBR seals. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 100 °C. Connection thread segment G 1/2 - suitable for common industry standards. Suitable for compressed air, non-aggressive gases. Uniform supply of several consumers.

Field of application

Typical areas of application: Compressed air distribution on machines and systems.

Temperature range min. -20 °C
Temperature range max. 100 °C
Medium Compressed air, non-aggressive gases
Connection thread G 1/2 inside
Sealing material NBR
Max. operating pressure 16 bar
Material Galvanized steel / brass
Withdrawal units 1
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
Connection Segment G 1/2
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification CW614N
Theme shop SAFETY
Class name MAX

Variants / Alternatives

Product Price

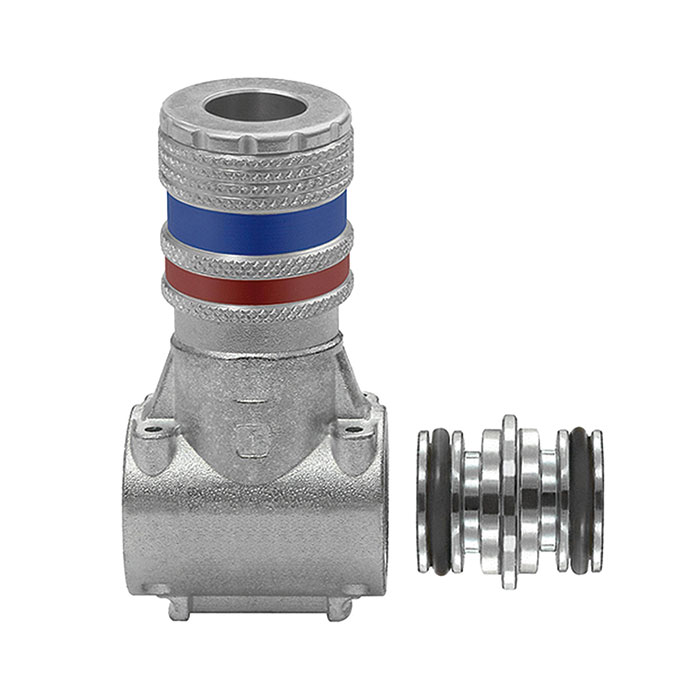

[107405] RIEGLER Intermediate segment »Multi-Link«, Safety coupling I.D. 7.6

Type number: ZS-KS

 55.37 €
