RIEGLER Intermediate segment »Multi-Link«, Safety coupling I.D. 7.6

Price:

55.37 €

English (US)
  2. Shop
  3. Compressed Air Distributor System »Multi-Link«
  4. RIEGLER Intermediate segment »Multi-Link«, Safety coupling I.D. 7.6
RIEGLER Distributor pipe, 2 outlets, Input 2x3/4, Output 2x1/2 IT, Brass
RIEGLER Distributor pipe, 2 outlets, Input 2x3/4, Output 2x1/2 IT, Brass
10.19 € 10.19 €
RIEGLER Intermediate segment »Multi-Link«, Segment G 1/2, Removal unit 1
RIEGLER Intermediate segment »Multi-Link«, Segment G 1/2, Removal unit 1
37.70 € 37.70 €

RIEGLER Intermediate segment »Multi-Link«, Safety coupling I.D. 7.6

https://www.filcom-technik.de/web/image/product.template/191319/image_1920?unique=cc153b0

Type number: ZS-KS

55.37 € 55.370000000000005 EUR 55.37 € VAT Included

64.63 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

107405

EAN :

4047322351478

Category :

Compressed Air Distributor System »Multi-Link«

Weight :

0.17 kg

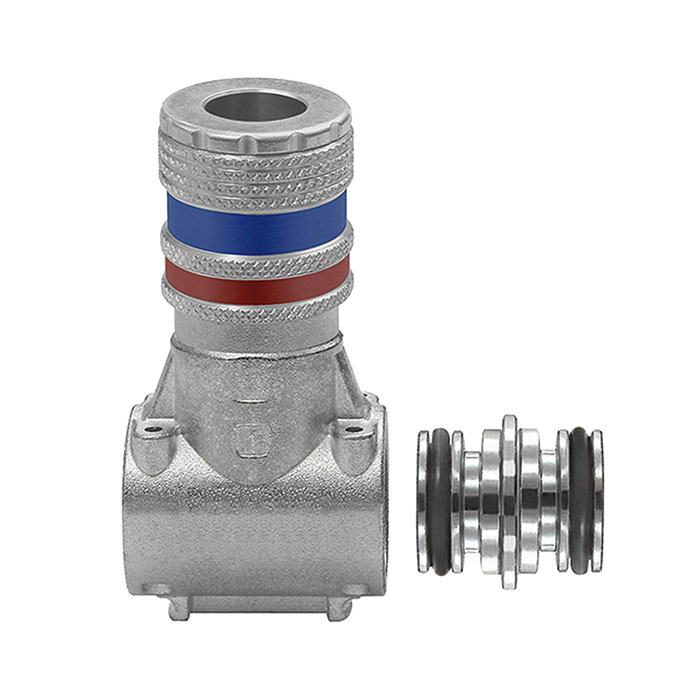

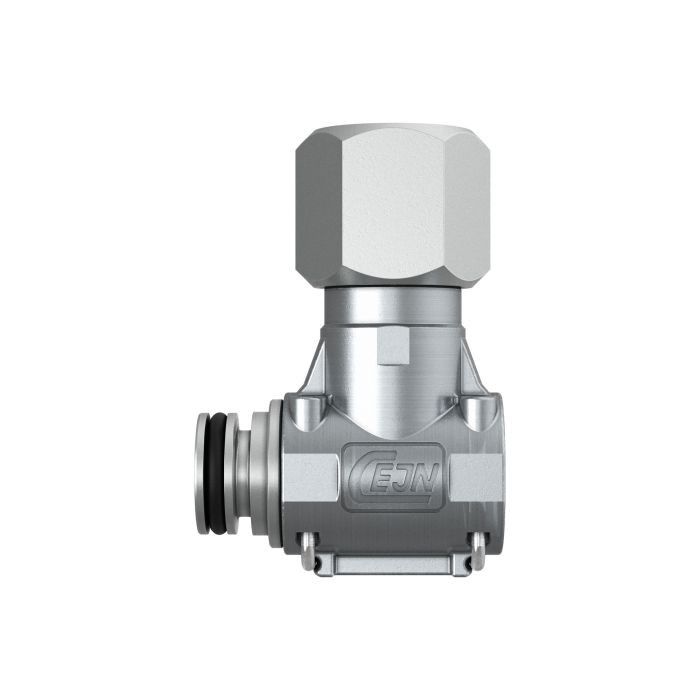

RIEGLER Intermediate segment "Multi-Link" made of galvanized steel / brass, for pipeline construction - type ZS-KS

The RIEGLER intermediate segment "Multi-Link", 1 safety coupling NW 7.6 branches a compressed air line to several outlets. The housing is made of galvanized steel / brass with NBR seals. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 80 °C. Connection thread segment safety coupling NW 7.6 - suitable for common industry standards. Suitable for compressed air, non-aggressive gases. Uniform supply of several consumers.

Field of application

Typical areas of application: Compressed air distribution on machines and systems.

Temperature range min. -20 °C
Temperature range max. 80 °C
Medium Compressed air, non-aggressive gases
Connection thread G 1/2 inside
Sealing material NBR
Max. operating pressure 16 bar
Material Galvanized steel / brass
Withdrawal units 1
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
Connection Segment safety coupling NW 7.6
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification CW614N
Theme shop SAFETY
Class name MAX

Variants / Alternatives

Product Price

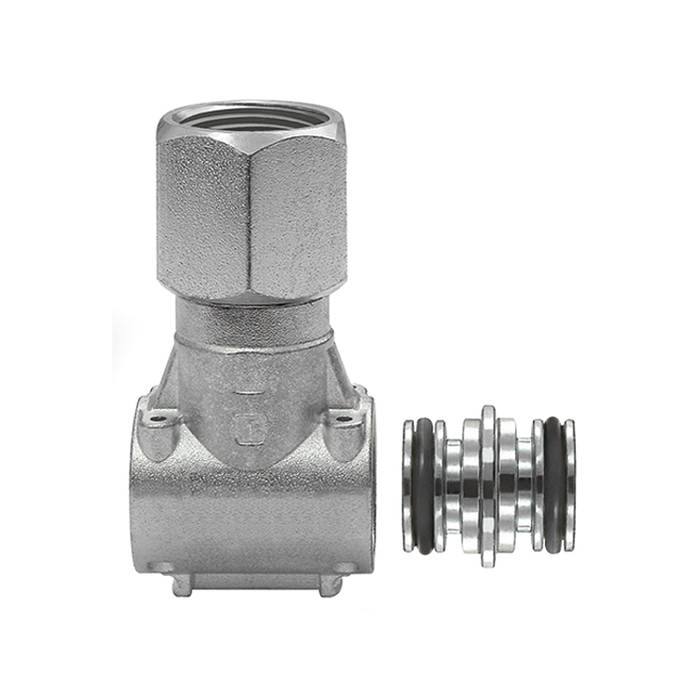

[107403] RIEGLER Intermediate segment »Multi-Link«, Segment G 1/2, Removal unit 1

Type number: ZS-12

 37.70 €
