RIEGLER Hydraulic coupling lock on both sides, 1.4305, G 1/4 IT, I.D. 6.3
Type number: 246.12
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Hydraulic coupling, shut-off on both sides, made of stainless steel 1.4305, for compressed air supply - Type 246.12
The RIEGLER hydraulic coupling, shut-off on both sides, ES 1.4305, G 1/4 IG NW 6.3 connects and disconnects compressed air hoses quickly and safely. The housing is made of stainless steel 1.4305 with FKM seals. Designed for a maximum operating pressure of 250 bar. The permissible medium temperature is between -15 °C and 200 °C. Connection thread G 1/4 IG - suitable for common industry standards. Quick coupling and uncoupling without tools.
Field of application
Typical areas of application: Workshop, production and mobile compressed air supply.
| Housing | Stainless steel 1.4305 |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Max. operating pressure | 250 bar |
| Medium temperature min. | -15 °C |
| Medium temperature max. | 200 °C |
| Ambient temperature min. | -15 °C |
| Ambient temperature max. | 200 °C |
| Ball | Stainless steel 1.4401 |
| Spring | Stainless steel 1.4310 |
| Sleeve | Stainless steel 1.4305 |
| Valve | Stainless steel 1.4305 |
| Operating pressure | Based on 50 °C medium temperature (static operating pressure) |
| Flow rate (air) | 840 l/min |
| SW | 19 mm |
| NW | 6.3 |
| Length | 57.6 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 FEMALE THREAD |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

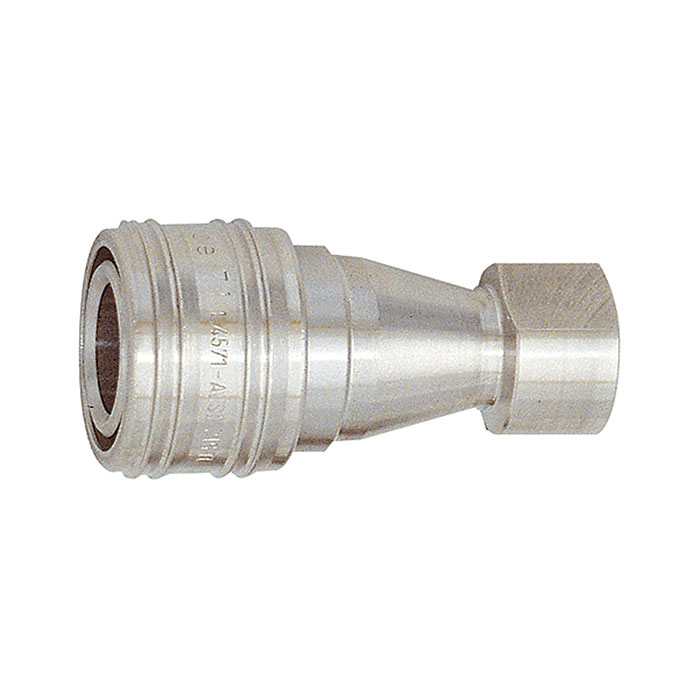

![[107706] RIEGLER Hydraulic coupling lock on both sides, 1.4305, G 1/2 IT, I.D. 11](/web/image/product.template/191607/image_128/%5B107706%5D%20RIEGLER%20Hydraulic%20coupling%20lock%20on%20both%20sides%2C%201.4305%2C%20G%201-2%20IT%2C%20I.D.%2011?unique=508b8de)
|
Type number: 246.14 |
173.59 € | |
![[107703] RIEGLER Hydraulic coupling lock on both sides, 1.4305, G 1/8 IT, I.D. 4.3](/web/image/product.template/191604/image_128/%5B107703%5D%20RIEGLER%20Hydraulic%20coupling%20lock%20on%20both%20sides%2C%201.4305%2C%20G%201-8%20IT%2C%20I.D.%204.3?unique=dd4e16b)
|
Type number: 246.11 |
82.00 € | |
![[107707] RIEGLER Hydraulic coupling lock on both sides, 1.4305, G 3/4 IT, I.D. 13](/web/image/product.template/191608/image_128/%5B107707%5D%20RIEGLER%20Hydraulic%20coupling%20lock%20on%20both%20sides%2C%201.4305%2C%20G%203-4%20IT%2C%20I.D.%2013?unique=ae80cb3)
|
Type number: 246.15 |
350.15 € | |
![[107705] RIEGLER Hydraulic coupling lock on both sides, 1.4305, G 3/8 IT, I.D. 7.5](/web/image/product.template/191606/image_128/%5B107705%5D%20RIEGLER%20Hydraulic%20coupling%20lock%20on%20both%20sides%2C%201.4305%2C%20G%203-8%20IT%2C%20I.D.%207.5?unique=cd5d7dd)
|
Type number: 246.13 |
127.44 € | |
