RIEGLER Hydraulic coupling, Series B, Steel, G 3/4 IT, I.D. 19
Type number: 242.04 B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Hydraulic coupling made of steel, for compressed air supply, max. 300 bar - Type 242.04 B
The RIEGLER hydraulic coupling, series B, steel, G 3/4 IG, NW 19 connects and disconnects compressed air hoses quickly and safely. The housing is made of steel with NBR seals. Designed for a maximum operating pressure of 300 bar. The operating temperature is between -30 °C and 100 °C. Connection thread G 3/4 IG - suitable for common industry standards. Quick coupling and uncoupling without tools.
Field of application
Typical areas of application: Workshop, production and mobile compressed air supply.
| Housing | Steel |
| Sealing material | NBR |
| Max. operating pressure | 300 bar |
| Ball | stainless steel |
| Operating temperature min. | -30 °C |
| Operating temperature max. | 100 °C |
| Spring | stainless steel |
| Unlocking sleeve | Steel |
| Valve | Brass |
| Plug nipple | Steel |
| SW | 46 mm |
| NW | 19 |
| Length | 81 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 3/4 IG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Flow rate (oil) | 75 l/min |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[107730] RIEGLER Hydraulic coupling, Series B, nickel-plated brass, G 1/2 IT](/web/image/product.template/191631/image_128/%5B107730%5D%20RIEGLER%20Hydraulic%20coupling%2C%20Series%20B%2C%20nickel-plated%20brass%2C%20G%201-2%20IT?unique=6d51acb)
|
Type number: 242.03 B |
44.70 € | |
![[107728] RIEGLER Hydraulic coupling, Series B, nickel-plated brass, G 1/4 IT](/web/image/product.template/191629/image_128/%5B107728%5D%20RIEGLER%20Hydraulic%20coupling%2C%20Series%20B%2C%20nickel-plated%20brass%2C%20G%201-4%20IT?unique=fcd9f2e)
|
Type number: 242.01 B |
28.21 € | |

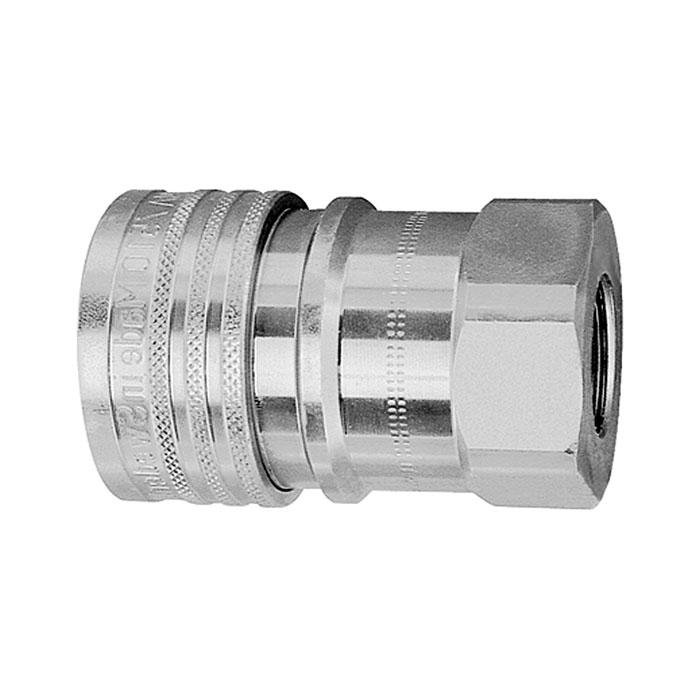

![[107729] RIEGLER Hydraulic coupling, Series B, nickel-plated brass, G 3/8 IT](/web/image/product.template/191630/image_128/%5B107729%5D%20RIEGLER%20Hydraulic%20coupling%2C%20Series%20B%2C%20nickel-plated%20brass%2C%20G%203-8%20IT?unique=5383cb4)
|
