RIEGLER Hydraulic coupling, Series B, Steel, G 1 IT, I.D. 20
Type number: 242.05 B
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Hydraulic coupling, Series B, Steel, G 1 IT, I.D. 20, Operating pressure max. 300 bar, Operating temp. -30 °C to 100 °C
| Housing | Steel |
| Sealing material | NBR |
| Max. operating pressure | 300 bar |
| Ball | stainless steel |
| Operating temperature min. | -30 °C |
| Operating temperature max. | 100 °C |
| Spring | stainless steel |
| Unlocking sleeve | Steel |
| Valve | Brass |
| Plug nipple | Steel |
| SW | 50 mm |
| NW | 20 |
| Length | 94 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1 IG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Flow rate (oil) | 100 l/min |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[107730] RIEGLER Hydraulic coupling, Series B, nickel-plated brass, G 1/2 IT](/web/image/product.template/191631/image_128/%5B107730%5D%20RIEGLER%20Hydraulic%20coupling%2C%20Series%20B%2C%20nickel-plated%20brass%2C%20G%201-2%20IT?unique=7f333db)
|
Type number: 242.03 B |
45.32 € | |
![[107728] RIEGLER Hydraulic coupling, Series B, nickel-plated brass, G 1/4 IT](/web/image/product.template/191629/image_128/%5B107728%5D%20RIEGLER%20Hydraulic%20coupling%2C%20Series%20B%2C%20nickel-plated%20brass%2C%20G%201-4%20IT?unique=36738d8)
|
Type number: 242.01 B |
28.21 € | |

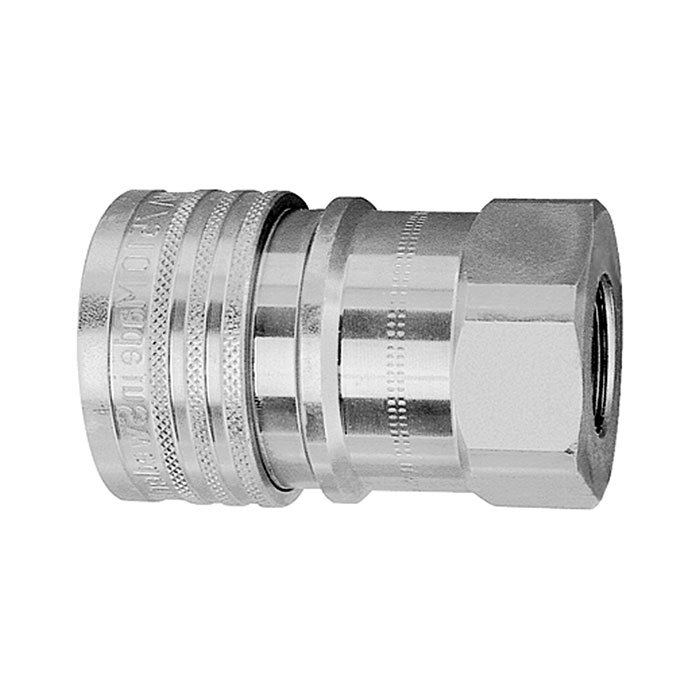

![[107729] RIEGLER Hydraulic coupling, Series B, nickel-plated brass, G 3/8 IT](/web/image/product.template/191630/image_128/%5B107729%5D%20RIEGLER%20Hydraulic%20coupling%2C%20Series%20B%2C%20nickel-plated%20brass%2C%20G%203-8%20IT?unique=e2e8869)
|
