RIEGLER Plug nipple without pressure eliminator, Series B, G 3/8 IT
Type number: 242.52 B
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Stecknippel ohne Druckeliminator, Serie B, Stahl geh., verz., G 3/8 IG, NW 10, PN max. 320 bar, Betriebstemp. -30 °C bis 100 °C
| Sealing material | NBR |
| Max. operating pressure | 320 bar |
| Ball | stainless steel |
| Operating temperature min. | -30 °C |
| Operating temperature max. | 100 °C |
| Spring | stainless steel |
| Valve | Brass |
| Plug nipple | Steel |
| SW | 22 mm |
| NW | 10 |
| Length | 42 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | G 3/8 IG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

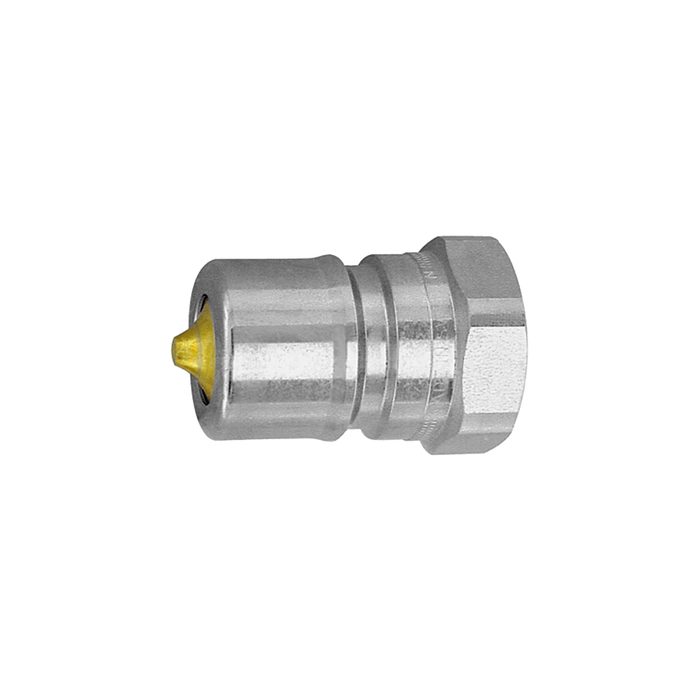

![[107735] RIEGLER Plug nipple without pressure eliminator, Series B, G 1/2 IT](/web/image/product.template/191636/image_128/%5B107735%5D%20RIEGLER%20Plug%20nipple%20without%20pressure%20eliminator%2C%20Series%20B%2C%20G%201-2%20IT?unique=a781639)
|
