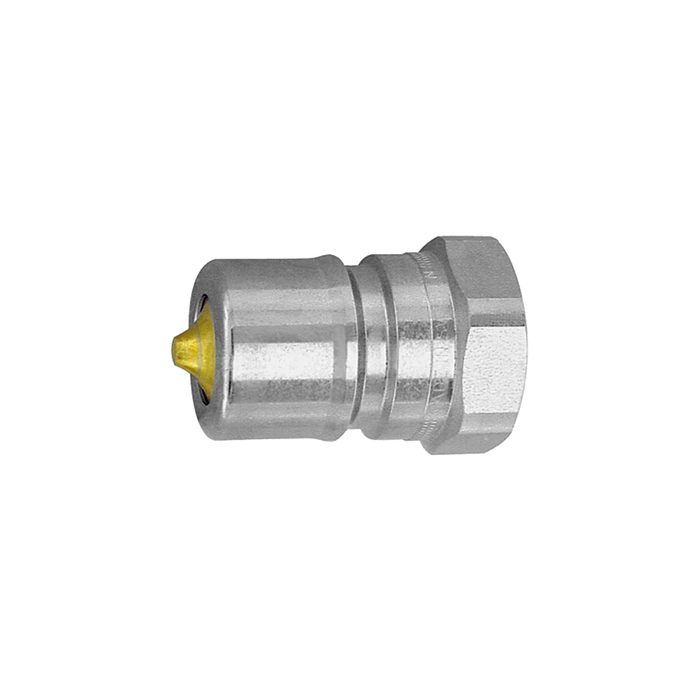

RIEGLER Plug nipple without pressure eliminator, Series B, G 1/2 IT
Type number: 242.53 B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Push-in nipple without pressure eliminator for compressed air supply, max. 300 bar, G 1/2 female thread - Type 242.53 B
The RIEGLER plug-in nipple without pressure eliminator, Series B, NW 12.5, G 1/2 female thread connects and disconnects compressed air hoses quickly and safely. with NBR seals. Designed for a maximum operating pressure of 300 bar. The operating temperature is between -30 °C and 100 °C. Connection thread G 1/2 IG - suitable for common industry standards. Quick coupling and uncoupling without tools.
Field of application
Typical areas of application: Workshop, production and mobile compressed air supply.
| Sealing material | NBR |
| Max. operating pressure | 300 bar |
| Ball | stainless steel |
| Operating temperature min. | -30 °C |
| Operating temperature max. | 100 °C |
| Spring | stainless steel |
| Valve | Brass |
| Plug nipple | Steel |
| SW | 27 mm |
| NW | 12.5 |
| Length | 46 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | G 1/2 IG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[107733] RIEGLER Plug nipple without pressure eliminator, Series B, G 1/4 IT](/web/image/product.template/191634/image_128/%5B107733%5D%20RIEGLER%20Plug%20nipple%20without%20pressure%20eliminator%2C%20Series%20B%2C%20G%201-4%20IT?unique=95cc33c)
|
Type number: 242.51 B |
16.58 € | |
![[107737] RIEGLER Plug nipple without pressure eliminator, Series B, G 1 IT](/web/image/product.template/191638/image_128/%5B107737%5D%20RIEGLER%20Plug%20nipple%20without%20pressure%20eliminator%2C%20Series%20B%2C%20G%201%20IT?unique=95cc33c)
|
Type number: 242.55 B |
54.66 € | |
![[107736] RIEGLER Plug nipple without pressure eliminator, Series B, G 3/4 IT](/web/image/product.template/191637/image_128/%5B107736%5D%20RIEGLER%20Plug%20nipple%20without%20pressure%20eliminator%2C%20Series%20B%2C%20G%203-4%20IT?unique=95cc33c)
|
Type number: 242.54 B |
36.52 € | |
![[107734] RIEGLER Plug nipple without pressure eliminator, Series B, G 3/8 IT](/web/image/product.template/191635/image_128/%5B107734%5D%20RIEGLER%20Plug%20nipple%20without%20pressure%20eliminator%2C%20Series%20B%2C%20G%203-8%20IT?unique=95cc33c)
|
Type number: 242.52 B |
20.44 € | |
