RIEGLER GEKA angled hose piece, 360° rotating, bright brass, I.D. 13
Type number: K 301
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER GEKA elbow hose section for compressed air supply, max. 40 bar, LW 13 - type K 301
The RIEGLER GEKA elbow hose section, 360° rotatable, blank brass, LW 13 connects water and compressed air hoses according to the GEKA system. with NBR seals. Designed for a maximum operating pressure of 40 bar. The permissible medium temperature is between -10 °C and 90 °C. Connection thread LW 13 - suitable for common industry standards. Proven system with universal compatibility.
Field of application
Typical areas of application: Garden, construction site, agriculture and industry.
| Sealing material | NBR |
| Max. operating pressure | 40 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 90 °C |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | LW 13 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

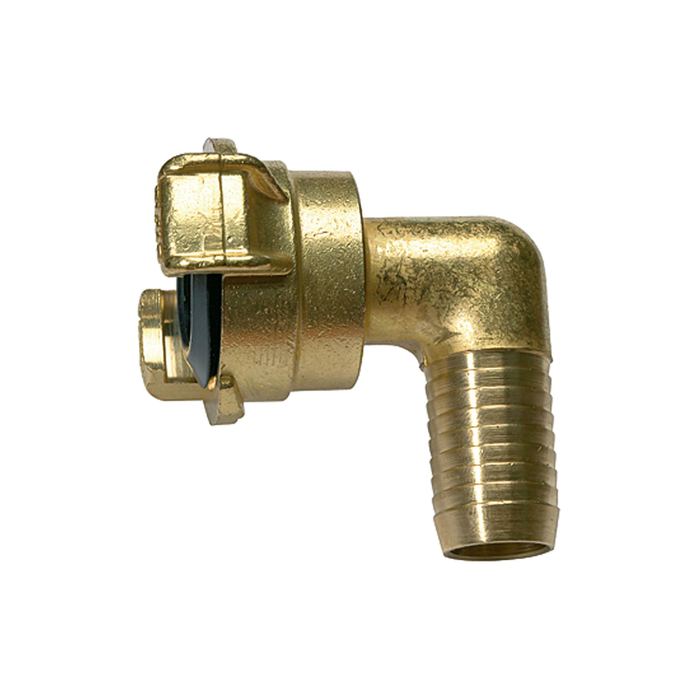

![[107781] RIEGLER GEKA angled hose piece, 360° rotating, bright brass, I.D. 19](/web/image/product.template/191682/image_128/%5B107781%5D%20RIEGLER%20GEKA%20angled%20hose%20piece%2C%20360%C2%B0%20rotating%2C%20bright%20brass%2C%20I.D.%2019?unique=1ce499b)
|
Type number: K 303 |
17.90 € | |
![[107782] RIEGLER GEKA angled hose piece, 360° rotating, bright brass, I.D. 25](/web/image/product.template/191683/image_128/%5B107782%5D%20RIEGLER%20GEKA%20angled%20hose%20piece%2C%20360%C2%B0%20rotating%2C%20bright%20brass%2C%20I.D.%2025?unique=1e6516e)
|
Type number: K 304 |
22.12 € | |

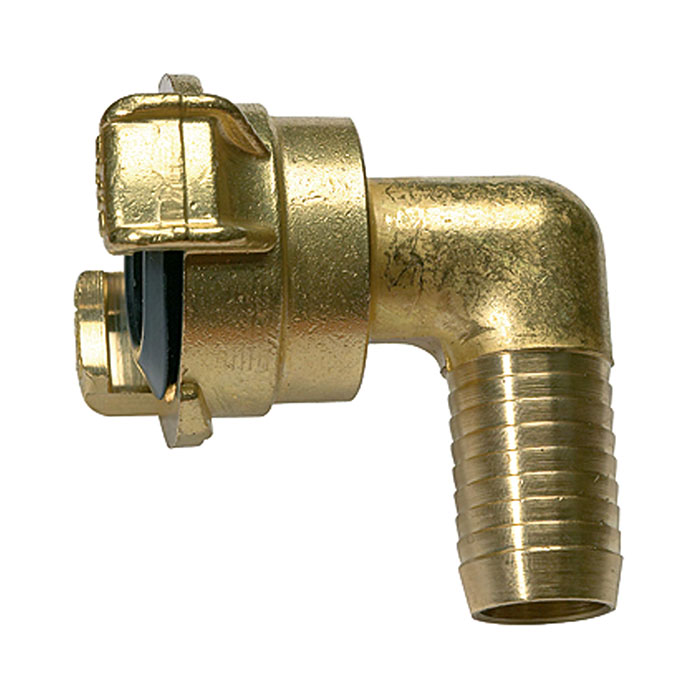

![[107783] RIEGLER GEKA angled hose piece, 360° rotating, bright brass, I.D. 32](/web/image/product.template/191684/image_128/%5B107783%5D%20RIEGLER%20GEKA%20angled%20hose%20piece%2C%20360%C2%B0%20rotating%2C%20bright%20brass%2C%20I.D.%2032?unique=9ee4bf2)
|
Type number: K 306 |
34.90 € | |
