RIEGLER GEKA angled hose piece, 360° rotating, bright brass, I.D. 32
Type number: K 306
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
GEKA angled hose piece, 360° rotating, bright brass, I.D. 32, Operating pressure max. 40 bar, Medium/ambient temp. -10 °C to 90 °C
| Sealing material | NBR |
| Max. operating pressure | 40 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 90 °C |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | LW 32 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[107780] RIEGLER GEKA angled hose piece, 360° rotating, bright brass, I.D. 13](/web/image/product.template/191681/image_128/%5B107780%5D%20RIEGLER%20GEKA%20angled%20hose%20piece%2C%20360%C2%B0%20rotating%2C%20bright%20brass%2C%20I.D.%2013?unique=5616a9b)
|
Type number: K 301 |
16.77 € | |

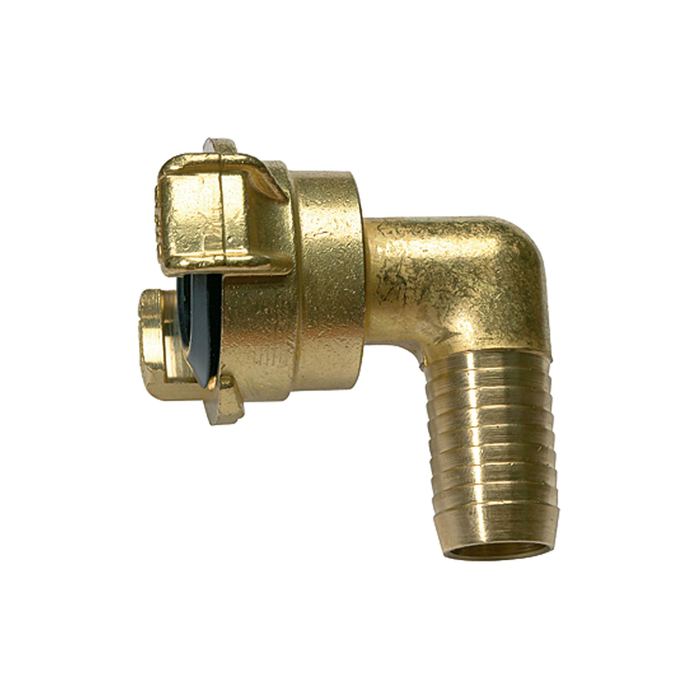

![[107781] RIEGLER GEKA angled hose piece, 360° rotating, bright brass, I.D. 19](/web/image/product.template/191682/image_128/%5B107781%5D%20RIEGLER%20GEKA%20angled%20hose%20piece%2C%20360%C2%B0%20rotating%2C%20bright%20brass%2C%20I.D.%2019?unique=6d302ee)
|
Type number: K 303 |
18.20 € | |

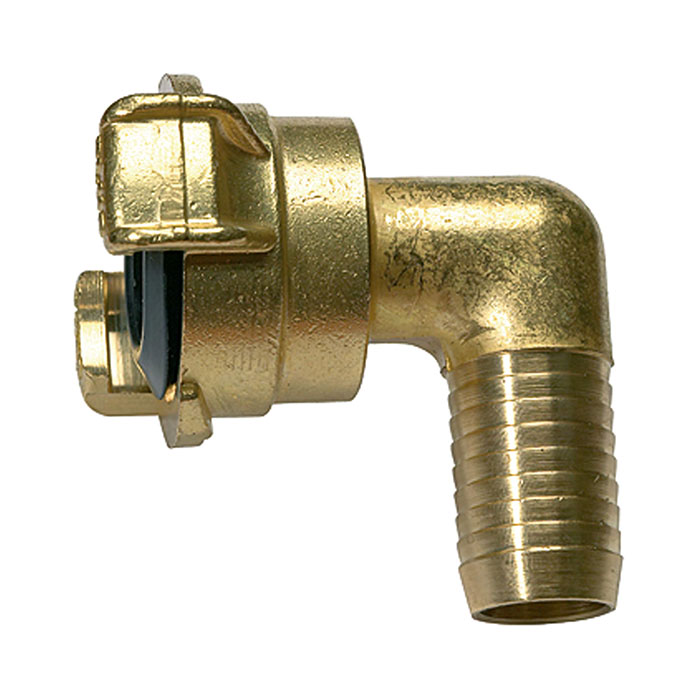

![[107782] RIEGLER GEKA angled hose piece, 360° rotating, bright brass, I.D. 25](/web/image/product.template/191683/image_128/%5B107782%5D%20RIEGLER%20GEKA%20angled%20hose%20piece%2C%20360%C2%B0%20rotating%2C%20bright%20brass%2C%20I.D.%2025?unique=c9d4430)
|
Type number: K 304 |
22.12 € | |
