RIEGLER Jaw coupling, I.D. 13 (1/2"), DN 10, with safety collar, rotating
Type number: KT 13 SBD
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Malleable cast iron claw coupling, galvanized and yellow passivated, for compressed air supply - type KT 13 SBD
The RIEGLER claw coupling, LW 13 (1/2), DN 10, with locking collar, rotatable connects compressed air lines positively and robustly. The housing is made of galvanized malleable iron and yellow passivated with NBR seals. Designed for a maximum operating pressure of 10 bar. The operating temperature is between -40 °C and 95 °C. Form-fit connection for high loads.
Field of application
Typical areas of application: Compressor connections and stationary lines.
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Material | Malleable iron galvanized and yellow passivated |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 95 °C |
| Claw distance | 42 mm |
| DN | 10 |
| for inner hose Ø | 13 (1/2") |
| Safety collar | 24 |
| L | 96 mm |
| H | 63 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[107869] RIEGLER Jaw coupling, I.D. 19 (3/4"), DN 15, with safety collar, rotating](/web/image/product.template/191770/image_128/%5B107869%5D%20RIEGLER%20Jaw%20coupling%2C%20I.D.%2019%20%283-4%22%29%2C%20DN%2015%2C%20with%20safety%20collar%2C%20rotating?unique=1b84b2f)
|
Type number: KT 19 SBD |
20.67 € | |

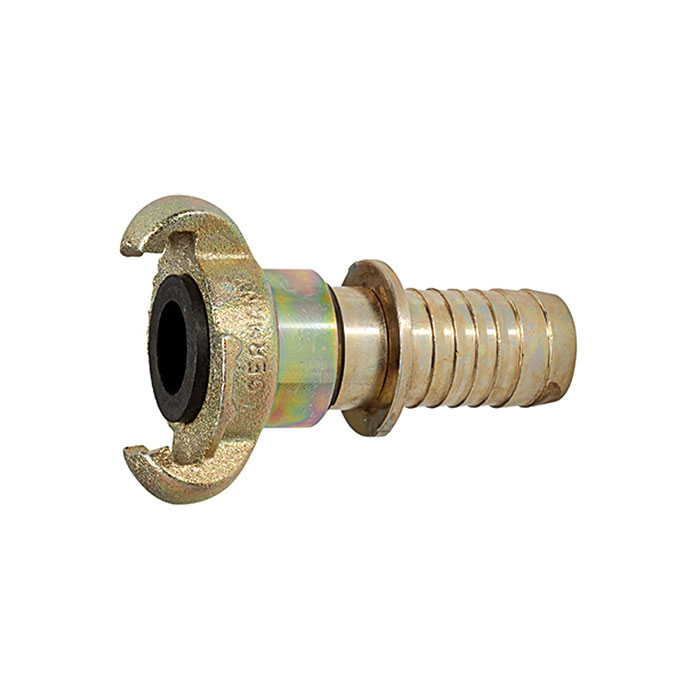

![[107870] RIEGLER Jaw coupling, I.D. 25 (1"), DN 19, with safety collar, rotating](/web/image/product.template/191771/image_128/%5B107870%5D%20RIEGLER%20Jaw%20coupling%2C%20I.D.%2025%20%281%22%29%2C%20DN%2019%2C%20with%20safety%20collar%2C%20rotating?unique=2e6d903)
|
