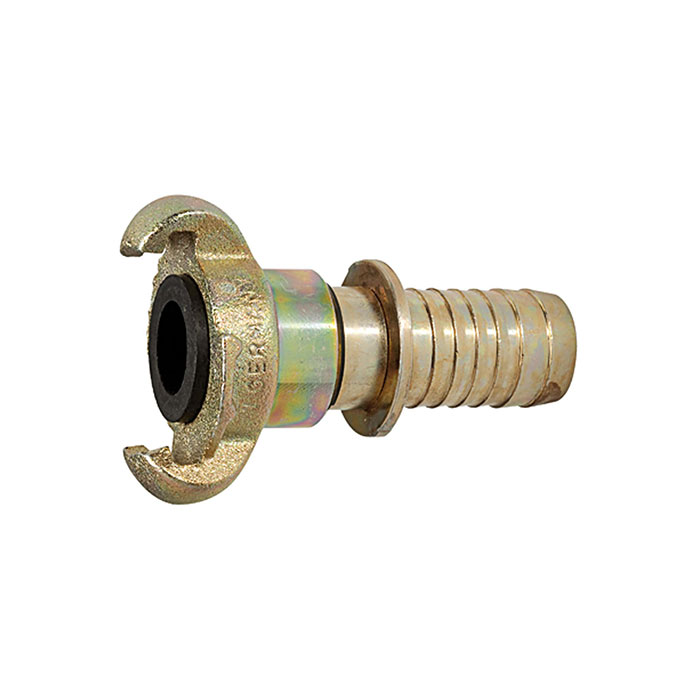

RIEGLER Jaw coupling, I.D. 19 (3/4"), DN 15, with safety collar, rotating
Type number: KT 19 SBD
EAN: 4047322259224
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Claw coupling with hose connection, LW 19 (3/4"), locking collar, rotatable, malleable cast iron, zinc-plated and yellow passivated, PN max. 10 bar
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Material | Malleable iron galvanized and yellow passivated |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 95 °C |
| Claw distance | 42 mm |
| DN | 15 |
| for inner hose Ø | 19 (3/4") |
| Safety collar | 34 |
| L | 97 mm |
| H | 63 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
