RIEGLER Kamlok quick-connect socket with ET, B type, Aluminium, R 2
Type number: 1113.20
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
108038EAN :
4047322403184Category :
KAMLOK Hose Couplings & AccessoriesWeight :
0.32 kgRIEGLER Kamlok quick coupling socket with male thread for compressed air supply, max. 16 bar, R 2 - Type 1113.20
The RIEGLER Kamlok quick coupling socket with AG, type B, aluminum, R 2 enables quick connection according to the Kamlock system. with seals made of NBR, oil and petrol resistant. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 68 °C. Connection thread R 2 - suitable for common industry standards. Quick coupling for a wide range of media.
Field of application
Typical areas of application: Chemicals, tank technology and food industry.
| Temperature range min. | -20 °C |
| Temperature range max. | 68 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| Thread | R 2 |
| for plug Ø | 63 mm |
| A | 97 mm |
| C | 77 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108035] RIEGLER Kamlok quick-connect socket with ET, B type, Aluminium, R 1](/web/image/product.template/191933/image_128/%5B108035%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20ET%2C%20B%20type%2C%20Aluminium%2C%20R%201?unique=0b5d11f)
|
Type number: 1113.10 |
6.19 € | |
![[108037] RIEGLER Kamlok quick-connect socket with ET, B type, Aluminium, R 1 1/2](/web/image/product.template/191935/image_128/%5B108037%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20ET%2C%20B%20type%2C%20Aluminium%2C%20R%201%201-2?unique=16c736e)
|
Type number: 1113.112 |
8.63 € | |
![[108036] RIEGLER Kamlok quick-connect socket with ET, B type, Aluminium, R 1 1/4](/web/image/product.template/191934/image_128/%5B108036%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20ET%2C%20B%20type%2C%20Aluminium%2C%20R%201%201-4?unique=9b45b0d)
|
Type number: 1113.114 |
8.22 € | |
![[108039] RIEGLER Kamlok quick-connect socket with ET, B type, Aluminium, R 2 1/2](/web/image/product.template/191937/image_128/%5B108039%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20ET%2C%20B%20type%2C%20Aluminium%2C%20R%202%201-2?unique=93dc3a3)
|
Type number: 1113.212 |
12.98 € | |

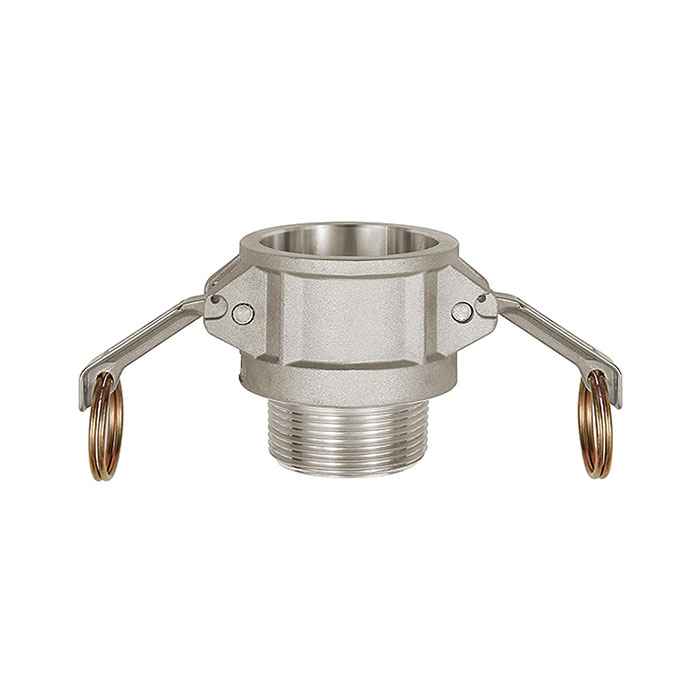

![[108040] RIEGLER Kamlok quick-connect socket with ET, B type, Aluminium, R 3](/web/image/product.template/191938/image_128/%5B108040%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20ET%2C%20B%20type%2C%20Aluminium%2C%20R%203?unique=a906d02)
|
