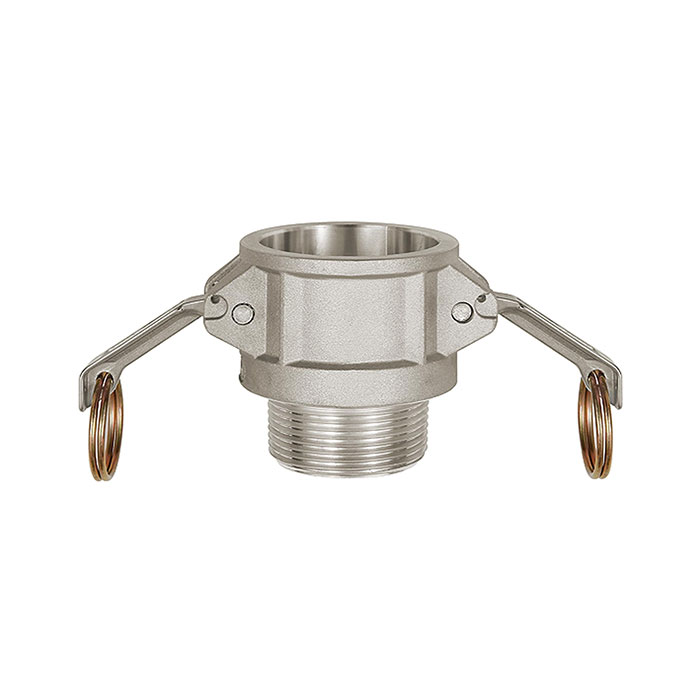

RIEGLER Kamlok quick-connect socket with ET, B type, Aluminium, R 3
Type number: 1113.30
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
108040EAN :
4047322403207Category :
KAMLOK Hose Couplings & AccessoriesWeight :
0.55 kgRIEGLER Kamlok quick coupling socket with male thread for compressed air supply, max. 16 bar, R 3 - type 1113.30
The RIEGLER Kamlok quick coupling socket with AG, type B, aluminum, R 3 enables quick connection according to the Kamlock system. with seals made of NBR, oil and petrol resistant. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 68 °C. Connection thread R 3 - suitable for common industry standards. Quick coupling for a wide range of media.
Field of application
Typical areas of application: Chemicals, tank technology and food industry.
| Temperature range min. | -20 °C |
| Temperature range max. | 68 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| Thread | R 3 |
| for plug Ø | 92 mm |
| A | 131.8 mm |
| C | 89.5 mm |
| Class name | FLEX |
