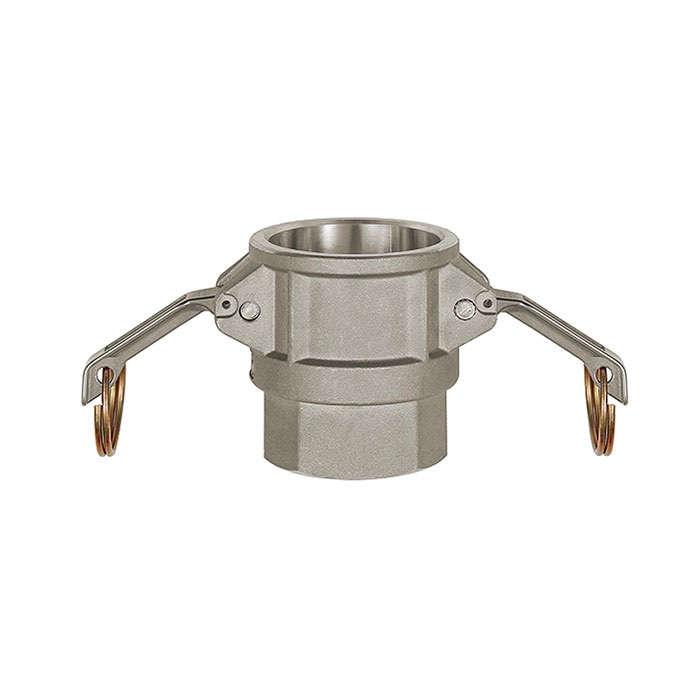

RIEGLER Kamlok quick-connect socket with IT, D type, Aluminium, G 1 1/4
Type number: 1114.114
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
108044EAN :
4047322403245Category :
KAMLOK hose couplings & accessoriesWeight :
0.24 kgKamlok quick coupling socket with female thread, type D, aluminum, G 1 1/4, for plug Ø 45 mm, max. pressure 16 bar, max. temp. 68 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 68 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| Thread | G 1 1/4 |
| for plug Ø | 45 mm |
| A | 79.7 mm |
| C | 67.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108043] RIEGLER Kamlok quick-connect socket with IT, D type, Aluminium, G 1](/web/image/product.template/191941/image_128/%5B108043%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20IT%2C%20D%20type%2C%20Aluminium%2C%20G%201?unique=cc6f65b)
|
Type number: 1114.10 |
6.43 € | |

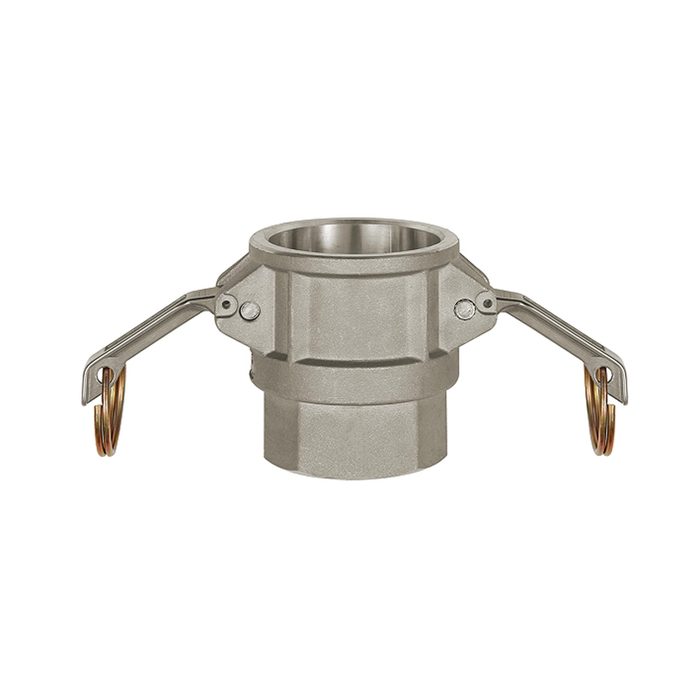

![[108045] RIEGLER Kamlok quick-connect socket with IT, D type, Aluminium, G 1 1/2](/web/image/product.template/191943/image_128/%5B108045%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20IT%2C%20D%20type%2C%20Aluminium%2C%20G%201%201-2?unique=4b42a2f)
|
Type number: 1114.112 |
9.22 € | |
![[108046] RIEGLER Kamlok quick-connect socket with IT, D type, Aluminium, G 2](/web/image/product.template/191944/image_128/%5B108046%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20IT%2C%20D%20type%2C%20Aluminium%2C%20G%202?unique=1a0c557)
|
Type number: 1114.20 |
10.88 € | |
![[108047] RIEGLER Kamlok quick-connect socket with IT, D type, Aluminium, G 2 1/2](/web/image/product.template/191945/image_128/%5B108047%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20IT%2C%20D%20type%2C%20Aluminium%2C%20G%202%201-2?unique=33b3b10)
|
Type number: 1114.212 |
13.29 € | |
![[108048] RIEGLER Kamlok quick-connect socket with IT, D type, Aluminium, G 3](/web/image/product.template/191946/image_128/%5B108048%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20IT%2C%20D%20type%2C%20Aluminium%2C%20G%203?unique=44874b7)
|
Type number: 1114.30 |
18.09 € | |
![[108042] RIEGLER Kamlok quick-connect socket with IT, D type, Aluminium, G 3/4](/web/image/product.template/191940/image_128/%5B108042%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20IT%2C%20D%20type%2C%20Aluminium%2C%20G%203-4?unique=fab3af4)
|
Type number: 1114.34 |
5.43 € | |
![[108049] RIEGLER Kamlok quick-connect socket with IT, D type, Aluminium, G 4](/web/image/product.template/191947/image_128/%5B108049%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20IT%2C%20D%20type%2C%20Aluminium%2C%20G%204?unique=998b24a)
|
Type number: 1114.40 |
24.67 € | |
