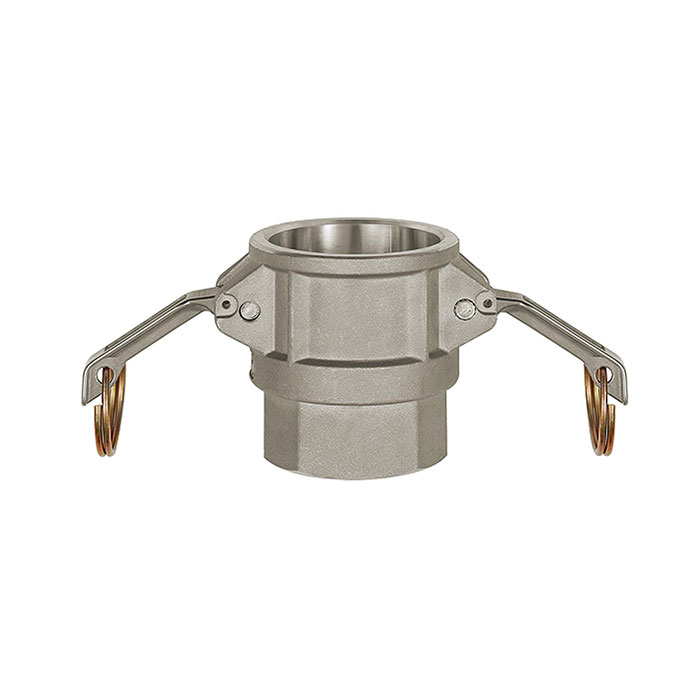

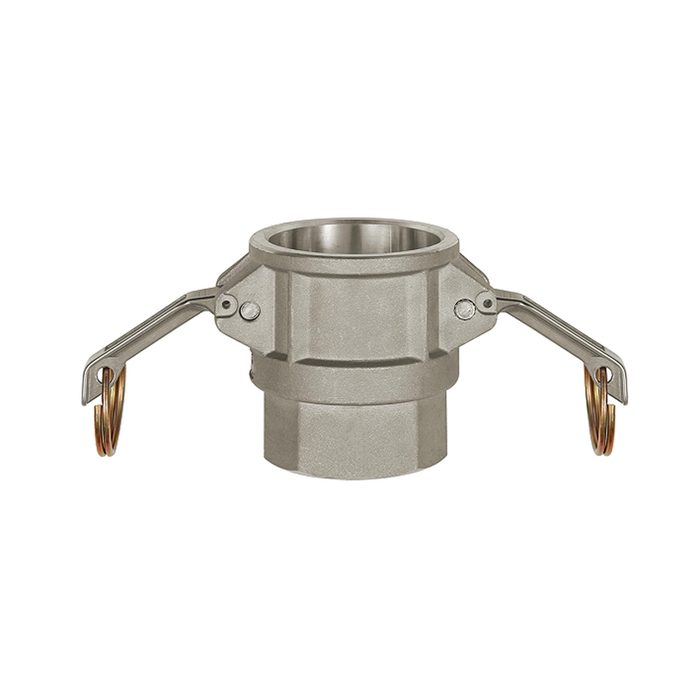

RIEGLER Kamlok quick-connect socket with IT, D type, Aluminium, G 3
Type number: 1114.30
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
108048EAN :
4047322403283Category :
KAMLOK hose couplings & accessoriesWeight :
0.57 kgKamlok quick coupling socket with female thread, type D, aluminum, G 3, for plug Ø 92 mm, max. pressure 16 bar, max. temp. 68 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 68 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| Thread | G 3 |
| for plug Ø | 92 mm |
| A | 131.8 mm |
| C | 89.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | FLEX |
