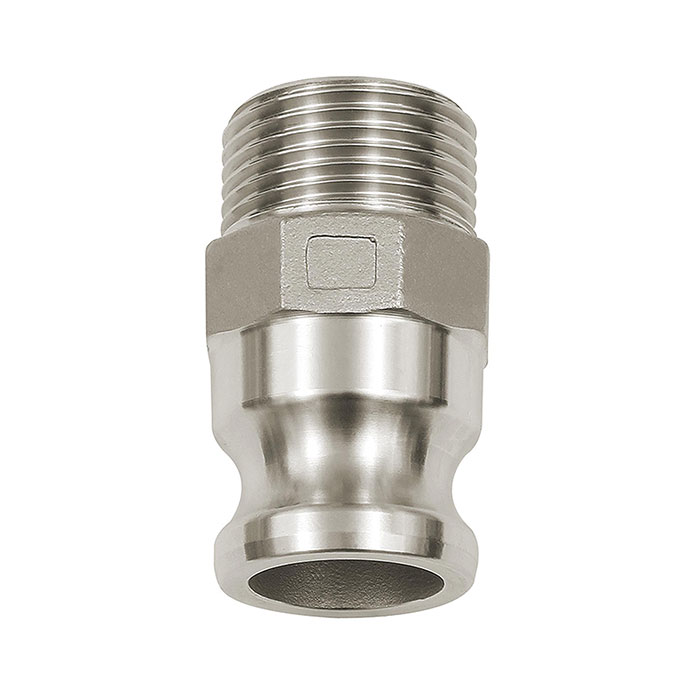

RIEGLER Kamlok quick-connect plug, Exterior thread, F type, Alu, R 2
Type number: 1116.20
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
108062EAN :
4047322403504Category :
KAMLOK Hose Couplings & AccessoriesWeight :
0.24 kgRIEGLER Kamlok quick coupling plug with male thread for compressed air supply, max. 16 bar, R 2 - type 1116.20
The RIEGLER Kamlok quick coupling plug with AG, type F, aluminum, R 2 enables quick connection according to the Kamlock system. with NBR seals, oil and petrol resistant. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 68 °C. Connection thread R 2 - suitable for common industry standards. Quick coupling for a wide range of media.
Field of application
Typical areas of application: Chemicals, tank technology and food industry.
| Temperature range min. | -20 °C |
| Temperature range max. | 68 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| Thread | R 2 |
| Plug Ø | 63 mm |
| L | 83.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | FLEX |
