RIEGLER Kamlok quick-connect plug, Exterior thread, F type, Alu, R 4
Type number: 1116.40
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
108065EAN :
4047322403535Category :
KAMLOK Hose Couplings & AccessoriesWeight :
0.80 kgRIEGLER Kamlok quick coupling plug with male thread for compressed air supply, max. 16 bar, R 4 - type 1116.40
The RIEGLER Kamlok quick coupling plug with AG, type F, aluminum, R 4 enables quick connection according to the Kamlock system. with NBR seals, oil and petrol resistant. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 68 °C. Connection thread R 4 - suitable for common industry standards. Quick coupling for a wide range of media.
Field of application
Typical areas of application: Chemicals, tank technology and food industry.
| Temperature range min. | -20 °C |
| Temperature range max. | 68 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| Thread | R 4 |
| Plug Ø | 120 mm |
| L | 104.5 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108059] RIEGLER Kamlok quick-connect plug, Exterior thread, F type, Alu, R 1](/web/image/product.template/191957/image_128/%5B108059%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Exterior%20thread%2C%20F%20type%2C%20Alu%2C%20R%201?unique=1a22041)
|
Type number: 1116.10 |
3.84 € | |
![[108061] RIEGLER Kamlok quick-connect plug, Exterior thread, F type, Alu, R 1 1/2](/web/image/product.template/191959/image_128/%5B108061%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Exterior%20thread%2C%20F%20type%2C%20Alu%2C%20R%201%201-2?unique=fce0277)
|
Type number: 1116.112 |
4.77 € | |
![[108060] RIEGLER Kamlok quick-connect plug, Exterior thread, F type, Alu, R 1 1/4](/web/image/product.template/191958/image_128/%5B108060%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Exterior%20thread%2C%20F%20type%2C%20Alu%2C%20R%201%201-4?unique=2212b04)
|
Type number: 1116.114 |
4.30 € | |
![[108062] RIEGLER Kamlok quick-connect plug, Exterior thread, F type, Alu, R 2](/web/image/product.template/191960/image_128/%5B108062%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Exterior%20thread%2C%20F%20type%2C%20Alu%2C%20R%202?unique=8fa9512)
|
Type number: 1116.20 |
6.58 € | |

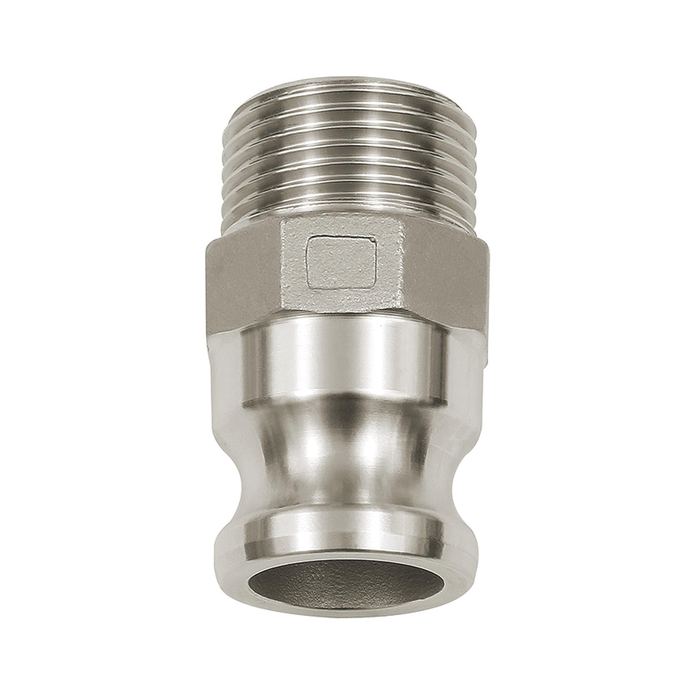

![[108063] RIEGLER Kamlok quick-connect plug, Exterior thread, F type, Alu, R 2 1/2](/web/image/product.template/191961/image_128/%5B108063%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Exterior%20thread%2C%20F%20type%2C%20Alu%2C%20R%202%201-2?unique=e3a5a6d)
|
Type number: 1116.212 |
9.57 € | |
![[108064] RIEGLER Kamlok quick-connect plug, Exterior thread, F type, Alu, R 3](/web/image/product.template/191962/image_128/%5B108064%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Exterior%20thread%2C%20F%20type%2C%20Alu%2C%20R%203?unique=5091e66)
|
Type number: 1116.30 |
12.67 € | |
![[108058] RIEGLER Kamlok quick-connect plug, Exterior thread, F type, Alu, R 3/4](/web/image/product.template/191956/image_128/%5B108058%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Exterior%20thread%2C%20F%20type%2C%20Alu%2C%20R%203-4?unique=b89e177)
|
Type number: 1116.34 |
3.00 € | |
