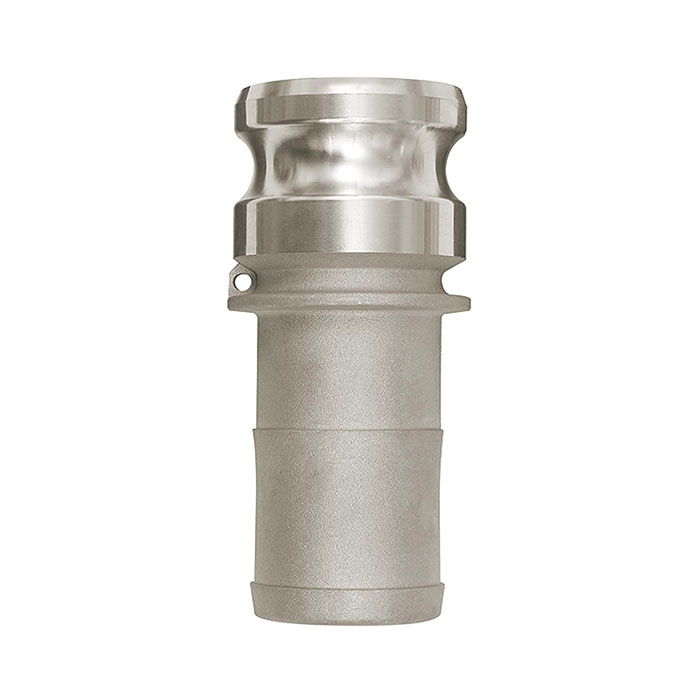

RIEGLER Kamlok quick-connect plug, Hose sleeve, E type, Alu, I.D. 38
Type number: 1118.112
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
108077EAN :
4047322403658Category :
KAMLOK Hose Couplings & AccessoriesWeight :
0.19 kgRIEGLER Kamlok quick coupling plug with grommet for compressed air supply, max. 16 bar - type 1118.112
The RIEGLER Kamlok quick coupling plug with grommet, type E, aluminum, LW 38 enables quick connection according to the Kamlock system. with NBR seals, oil and petrol resistant. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 68 °C. Quick coupling for a wide range of media.
Field of application
Typical areas of application: Chemicals, tank technology and food industry.
| Temperature range min. | -20 °C |
| Temperature range max. | 68 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| for inner hose Ø | 38 |
| Plug Ø | 53 mm |
| L | 123.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108081] RIEGLER Kamlok quick-connect plug, Hose sleeve, E type, Alu, I.D. 100](/web/image/product.template/191979/image_128/%5B108081%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Hose%20sleeve%2C%20E%20type%2C%20Alu%2C%20I.D.%20100?unique=82c2d72)
|
Type number: 1118.40 |
19.93 € | |

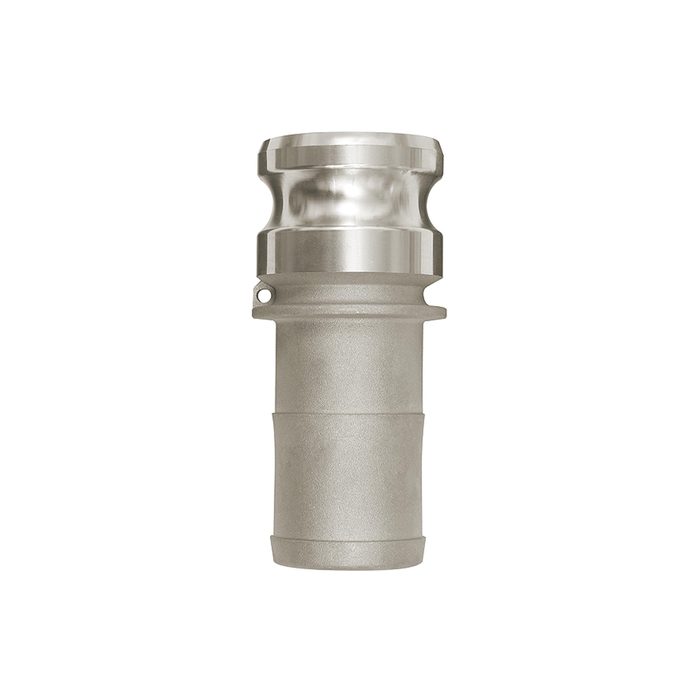

![[108074] RIEGLER Kamlok quick-connect plug, Hose sleeve, E type, Alu, I.D. 19](/web/image/product.template/191972/image_128/%5B108074%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Hose%20sleeve%2C%20E%20type%2C%20Alu%2C%20I.D.%2019?unique=d408ca8)
|
Type number: 1118.34 |
3.18 € | |
![[108075] RIEGLER Kamlok quick-connect plug, Hose sleeve, E type, Alu, I.D. 25](/web/image/product.template/191973/image_128/%5B108075%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Hose%20sleeve%2C%20E%20type%2C%20Alu%2C%20I.D.%2025?unique=d6deb3b)
|
Type number: 1118.10 |
3.99 € | |
![[108076] RIEGLER Kamlok quick-connect plug, Hose sleeve, E type, Alu, I.D. 32](/web/image/product.template/191974/image_128/%5B108076%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Hose%20sleeve%2C%20E%20type%2C%20Alu%2C%20I.D.%2032?unique=3ec3c8b)
|
Type number: 1118.114 |
4.30 € | |
![[108078] RIEGLER Kamlok quick-connect plug, Hose sleeve, E type, Alu, I.D. 50](/web/image/product.template/191976/image_128/%5B108078%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Hose%20sleeve%2C%20E%20type%2C%20Alu%2C%20I.D.%2050?unique=ed858b3)
|
Type number: 1118.20 |
7.25 € | |
![[108079] RIEGLER Kamlok quick-connect plug, Hose sleeve, E type, Alu, I.D. 63](/web/image/product.template/191977/image_128/%5B108079%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Hose%20sleeve%2C%20E%20type%2C%20Alu%2C%20I.D.%2063?unique=177615e)
|
Type number: 1118.212 |
9.63 € | |
![[108080] RIEGLER Kamlok quick-connect plug, Hose sleeve, E type, Alu, I.D. 75](/web/image/product.template/191978/image_128/%5B108080%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Hose%20sleeve%2C%20E%20type%2C%20Alu%2C%20I.D.%2075?unique=a1b9733)
|
Type number: 1118.30 |
13.19 € | |
