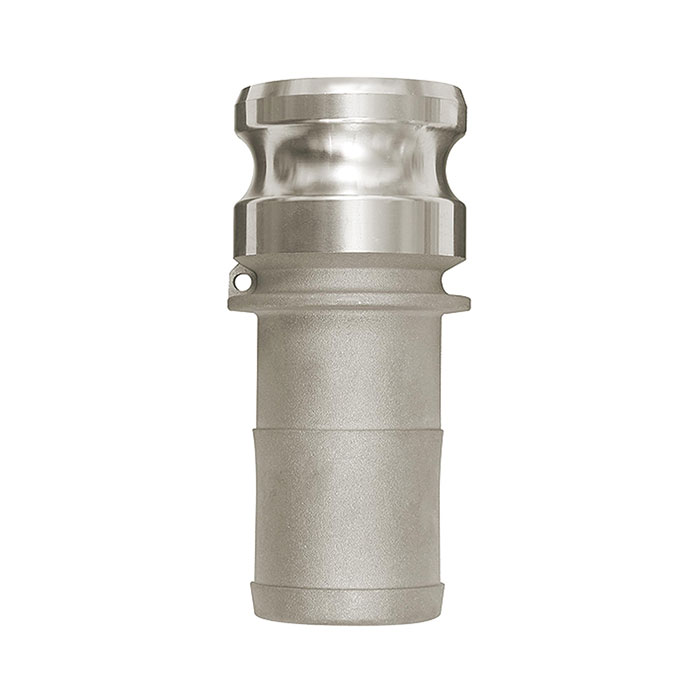

RIEGLER Kamlok quick-connect plug, Hose sleeve, E type, Alu, I.D. 100
Type number: 1118.40
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
108081EAN :
4047322403696Category :
KAMLOK hose couplings & accessoriesWeight :
0.84 kgKamlok quick coupling plug, hose nozzle, type E, aluminum, for hose LW 100, plug Ø 120 mm, PN max. 16 bar, temp. max. 68 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 68 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| for inner hose Ø | 100 |
| Plug Ø | 120 mm |
| L | 166 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

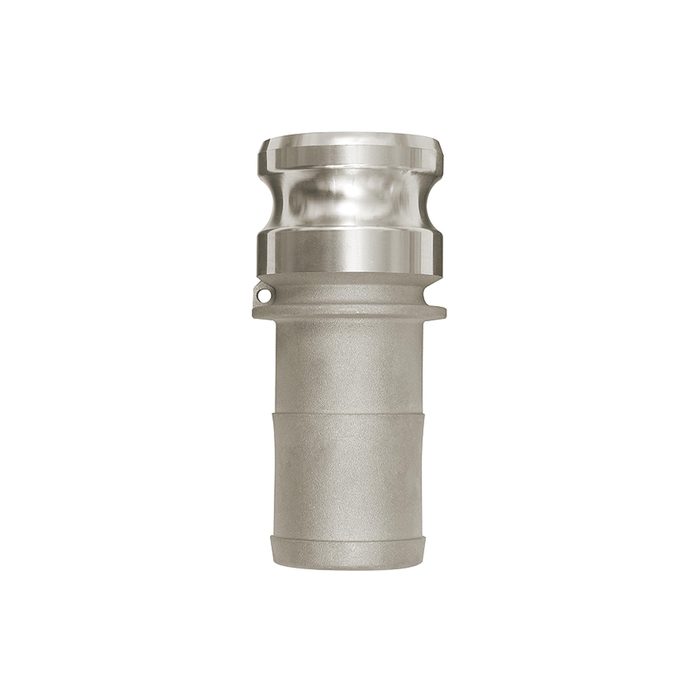

![[108074] RIEGLER Kamlok quick-connect plug, Hose sleeve, E type, Alu, I.D. 19](/web/image/product.template/191972/image_128/%5B108074%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Hose%20sleeve%2C%20E%20type%2C%20Alu%2C%20I.D.%2019?unique=271825a)
|
Type number: 1118.34 |
3.18 € | |
![[108075] RIEGLER Kamlok quick-connect plug, Hose sleeve, E type, Alu, I.D. 25](/web/image/product.template/191973/image_128/%5B108075%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Hose%20sleeve%2C%20E%20type%2C%20Alu%2C%20I.D.%2025?unique=71f4ed2)
|
Type number: 1118.10 |
3.99 € | |
![[108076] RIEGLER Kamlok quick-connect plug, Hose sleeve, E type, Alu, I.D. 32](/web/image/product.template/191974/image_128/%5B108076%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Hose%20sleeve%2C%20E%20type%2C%20Alu%2C%20I.D.%2032?unique=c3c4ad1)
|
Type number: 1118.114 |
4.30 € | |
![[108077] RIEGLER Kamlok quick-connect plug, Hose sleeve, E type, Alu, I.D. 38](/web/image/product.template/191975/image_128/%5B108077%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Hose%20sleeve%2C%20E%20type%2C%20Alu%2C%20I.D.%2038?unique=3688cbf)
|
Type number: 1118.112 |
5.08 € | |
![[108078] RIEGLER Kamlok quick-connect plug, Hose sleeve, E type, Alu, I.D. 50](/web/image/product.template/191976/image_128/%5B108078%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Hose%20sleeve%2C%20E%20type%2C%20Alu%2C%20I.D.%2050?unique=9e2b535)
|
Type number: 1118.20 |
7.25 € | |
![[108079] RIEGLER Kamlok quick-connect plug, Hose sleeve, E type, Alu, I.D. 63](/web/image/product.template/191977/image_128/%5B108079%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Hose%20sleeve%2C%20E%20type%2C%20Alu%2C%20I.D.%2063?unique=a387130)
|
Type number: 1118.212 |
9.63 € | |
![[108080] RIEGLER Kamlok quick-connect plug, Hose sleeve, E type, Alu, I.D. 75](/web/image/product.template/191978/image_128/%5B108080%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Hose%20sleeve%2C%20E%20type%2C%20Alu%2C%20I.D.%2075?unique=72b7442)
|
Type number: 1118.30 |
13.19 € | |
