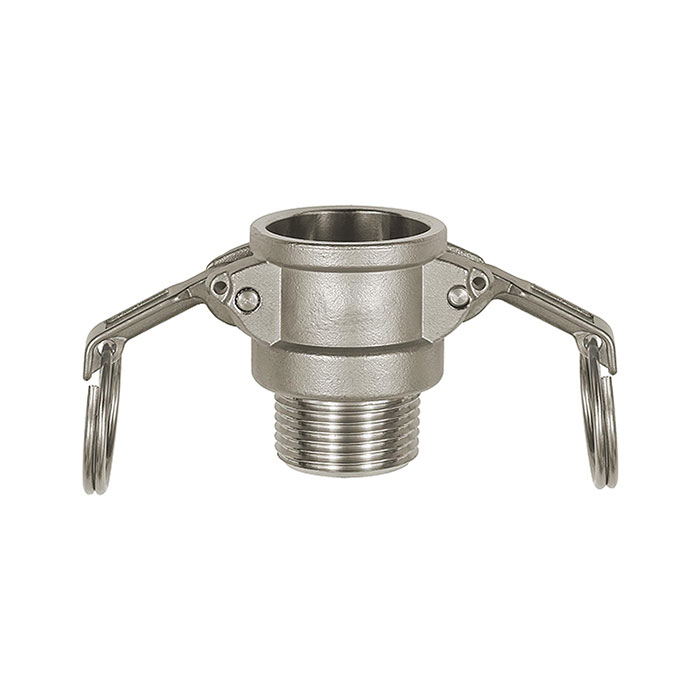

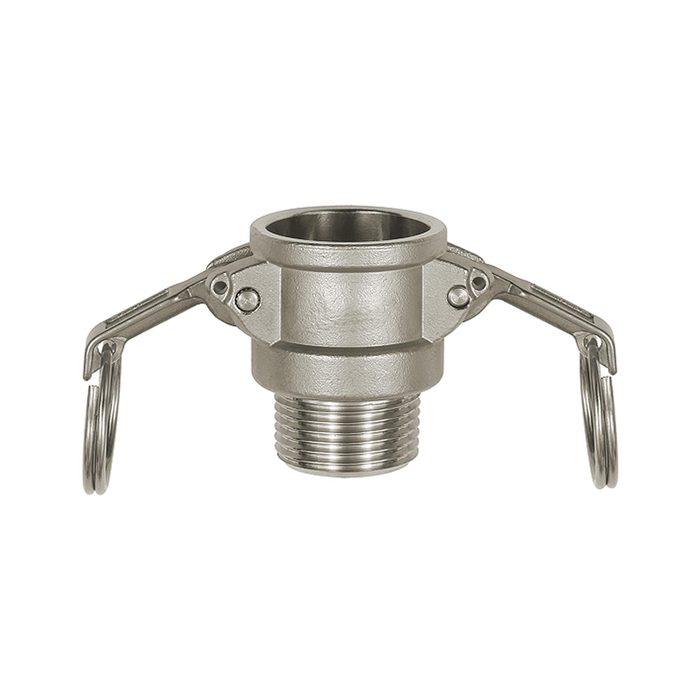

RIEGLER Kamlok quick-connect socket with ET, B type, 1.4401, R 2 1/2
Type number: 1113.212-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
108112EAN :
4047322404440Category :
KAMLOK Hose Couplings & AccessoriesWeight :
0.83 kgRIEGLER Kamlok quick coupling socket with male thread for compressed air supply, max. 16 bar, R 2 1/2 - Type 1113.212-ES
The RIEGLER Kamlok quick coupling socket with AG, type B, ES 1.4401, R 2 1/2 enables quick connection according to the Kamlock system. with NBR seals, oil and petrol resistant. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 95 °C. Connection thread R 2 1/2 - suitable for common industry standards. Quick coupling for a wide range of media.
Field of application
Typical areas of application: Chemicals, tank technology and food industry.
| Temperature range min. | -20 °C |
| Temperature range max. | 95 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| Thread | R 2 1/2 |
| for plug Ø | 76.5 mm |
| A | 109.5 mm |
| C | 85.5 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108108] RIEGLER Kamlok quick-connect socket with ET, B type, 1.4401, R 1](/web/image/product.template/192006/image_128/%5B108108%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20ET%2C%20B%20type%2C%201.4401%2C%20R%201?unique=f3108e9)
|
Type number: 1113.10-ES |
16.95 € | |
![[108110] RIEGLER Kamlok quick-connect socket with ET, B type, 1.4401, R 1 1/2](/web/image/product.template/192008/image_128/%5B108110%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20ET%2C%20B%20type%2C%201.4401%2C%20R%201%201-2?unique=839e05c)
|
Type number: 1113.112-ES |
27.05 € | |
![[108109] RIEGLER Kamlok quick-connect socket with ET, B type, 1.4401, R 1 1/4](/web/image/product.template/192007/image_128/%5B108109%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20ET%2C%20B%20type%2C%201.4401%2C%20R%201%201-4?unique=6b8c903)
|
Type number: 1113.114-ES |
24.17 € | |
![[108111] RIEGLER Kamlok quick-connect socket with ET, B type, 1.4401, R 2](/web/image/product.template/192009/image_128/%5B108111%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20ET%2C%20B%20type%2C%201.4401%2C%20R%202?unique=80ee174)
|
Type number: 1113.20-ES |
37.31 € | |
![[108113] RIEGLER Kamlok quick-connect socket with ET, B type, 1.4401, R 3](/web/image/product.template/192011/image_128/%5B108113%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20ET%2C%20B%20type%2C%201.4401%2C%20R%203?unique=1d78056)
|
Type number: 1113.30-ES |
67.21 € | |
![[108107] RIEGLER Kamlok quick-connect socket with ET, B type, 1.4401, R 3/4](/web/image/product.template/192005/image_128/%5B108107%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20ET%2C%20B%20type%2C%201.4401%2C%20R%203-4?unique=2d67c7e)
|
Type number: 1113.34-ES |
12.71 € | |
![[108114] RIEGLER Kamlok quick-connect socket with ET, B type, 1.4401, R 4](/web/image/product.template/192012/image_128/%5B108114%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20ET%2C%20B%20type%2C%201.4401%2C%20R%204?unique=4d41c64)
|
Type number: 1113.40-ES |
87.06 € | |
