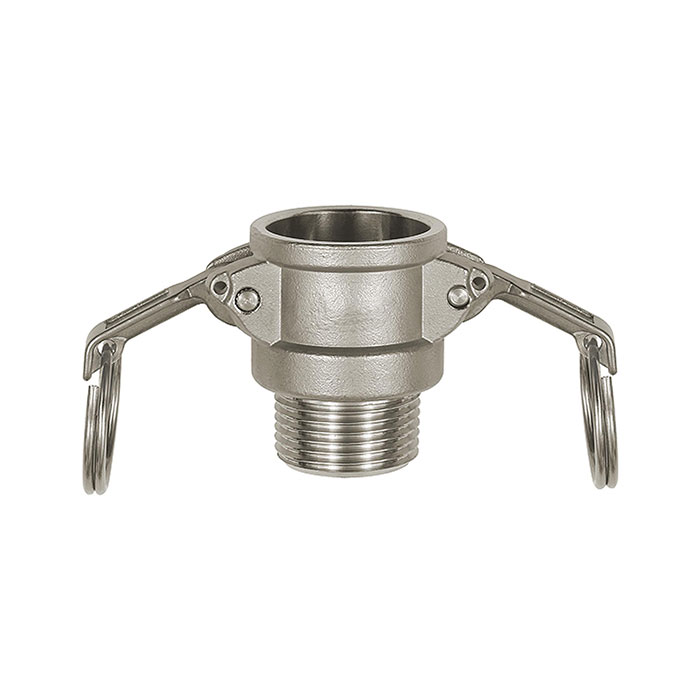

RIEGLER Kamlok quick-connect socket with ET, B type, 1.4401, R 4
Type number: 1113.40-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
108114EAN :
4047322404464Category :
KAMLOK Hose Couplings & AccessoriesWeight :
1.42 kgRIEGLER Kamlok quick coupling socket with male thread for compressed air supply, max. 16 bar, R 4 - type 1113.40-ES
The RIEGLER Kamlok quick coupling socket with male thread, type B, ES 1.4401, R 4 enables quick connection according to the Kamlock system. with NBR seals, oil and petrol resistant. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 95 °C. Connection thread R 4 - suitable for common industry standards. Quick coupling for a wide range of media.
Field of application
Typical areas of application: Chemicals, tank technology and food industry.
| Temperature range min. | -20 °C |
| Temperature range max. | 95 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| Thread | R 4 |
| for plug Ø | 120 mm |
| A | 159.9 mm |
| C | 88.5 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

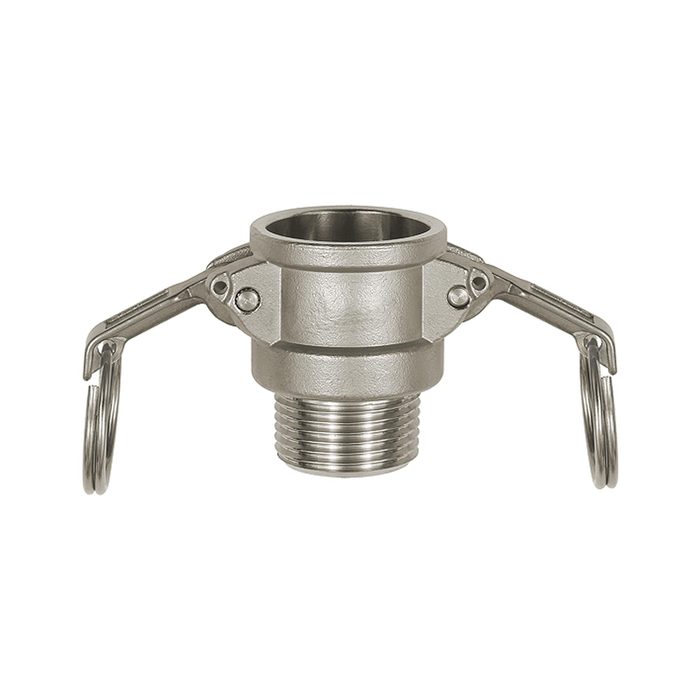

![[108108] RIEGLER Kamlok quick-connect socket with ET, B type, 1.4401, R 1](/web/image/product.template/192006/image_128/%5B108108%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20ET%2C%20B%20type%2C%201.4401%2C%20R%201?unique=f3108e9)
|
