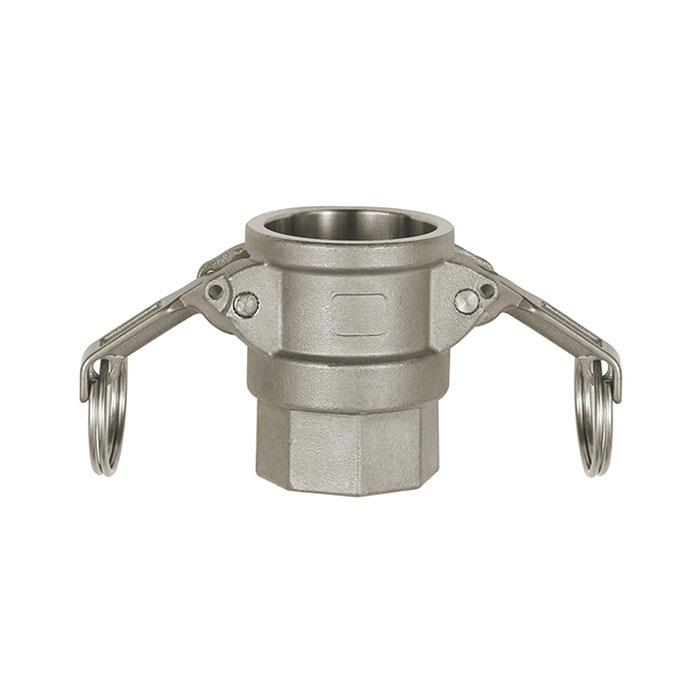

RIEGLER Kamlok quick-connect socket with IT, D type, 1.4401, G 1
Type number: 1114.10-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
108116EAN :
4047322404488Category :
KAMLOK Hose Couplings & AccessoriesWeight :
0.24 kgRIEGLER Kamlok quick coupling socket with female thread for compressed air supply, max. 16 bar, G 1 - type 1114.10-ES
The RIEGLER Kamlok quick coupling socket with female thread, type D, ES 1.4401, G 1 enables quick connection according to the Kamlock system. with NBR seals, oil and petrol resistant. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 95 °C. G 1 connection thread - suitable for common industry standards. Quick coupling for a wide range of media.
Field of application
Typical areas of application: Chemicals, tank technology and food industry.
| Temperature range min. | -20 °C |
| Temperature range max. | 95 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| Thread | G 1 |
| for plug Ø | 37 mm |
| A | 68.2 mm |
| C | 55 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108118] RIEGLER Kamlok quick-connect socket with IT, D type, 1.4401, G 1 1/2](/web/image/product.template/192016/image_128/%5B108118%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20IT%2C%20D%20type%2C%201.4401%2C%20G%201%201-2?unique=405ab87)
|
Type number: 1114.112-ES |
27.05 € | |
![[108117] RIEGLER Kamlok quick-connect socket with IT, D type, 1.4401, G 1 1/4](/web/image/product.template/192015/image_128/%5B108117%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20IT%2C%20D%20type%2C%201.4401%2C%20G%201%201-4?unique=79c8ac3)
|
Type number: 1114.114-ES |
22.36 € | |
![[108119] RIEGLER Kamlok quick-connect socket with IT, D type, 1.4401, G 2](/web/image/product.template/192017/image_128/%5B108119%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20IT%2C%20D%20type%2C%201.4401%2C%20G%202?unique=bdf5ef1)
|
Type number: 1114.20-ES |
35.12 € | |
![[108120] RIEGLER Kamlok quick-connect socket with IT, D type, 1.4401, G 2 1/2](/web/image/product.template/192018/image_128/%5B108120%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20IT%2C%20D%20type%2C%201.4401%2C%20G%202%201-2?unique=a45f966)
|
Type number: 1114.212-ES |
51.16 € | |
![[108121] RIEGLER Kamlok quick-connect socket with IT, D type, 1.4401, G 3](/web/image/product.template/192019/image_128/%5B108121%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20IT%2C%20D%20type%2C%201.4401%2C%20G%203?unique=4736f2b)
|
Type number: 1114.30-ES |
66.75 € | |

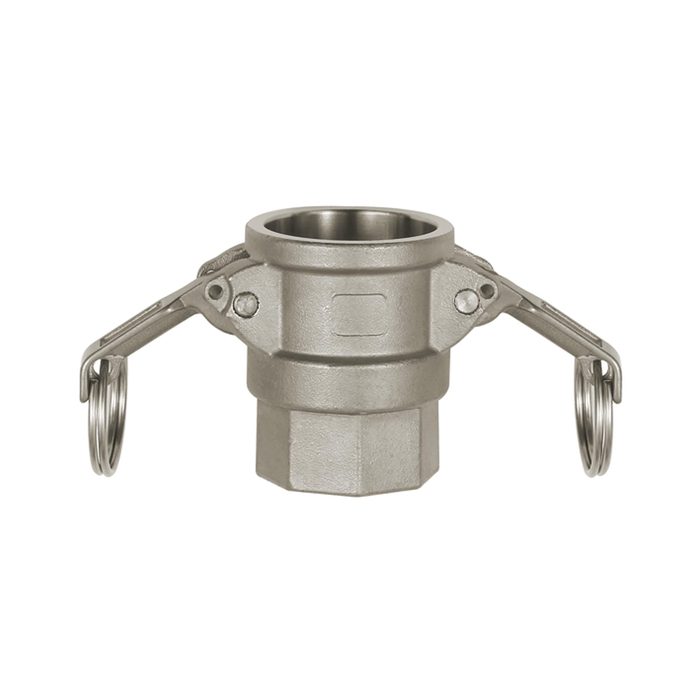

![[108115] RIEGLER Kamlok quick-connect socket with IT, D type, 1.4401, G 3/4](/web/image/product.template/192013/image_128/%5B108115%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20IT%2C%20D%20type%2C%201.4401%2C%20G%203-4?unique=4a76bd1)
|
Type number: 1114.34-ES |
12.95 € | |
![[108122] RIEGLER Kamlok quick-connect socket with IT, D type, 1.4401, G 4](/web/image/product.template/192020/image_128/%5B108122%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20IT%2C%20D%20type%2C%201.4401%2C%20G%204?unique=d8ec965)
|
Type number: 1114.40-ES |
98.12 € | |
