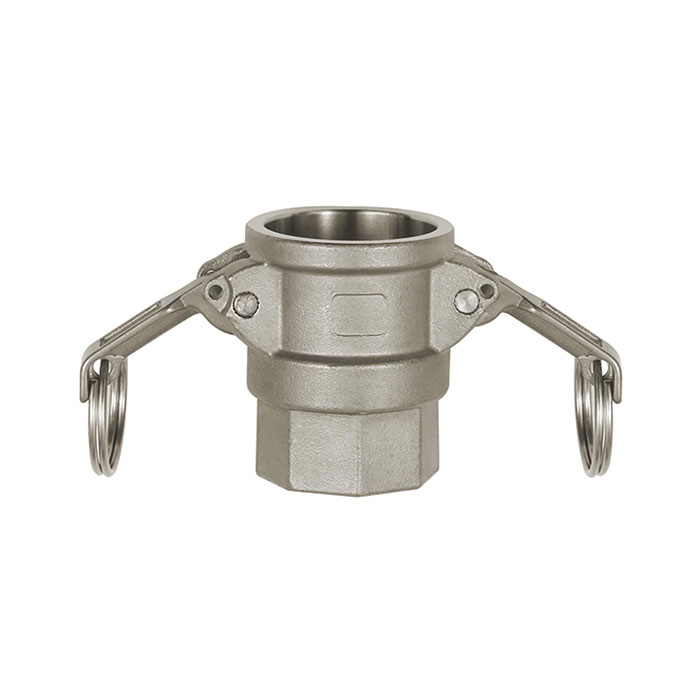

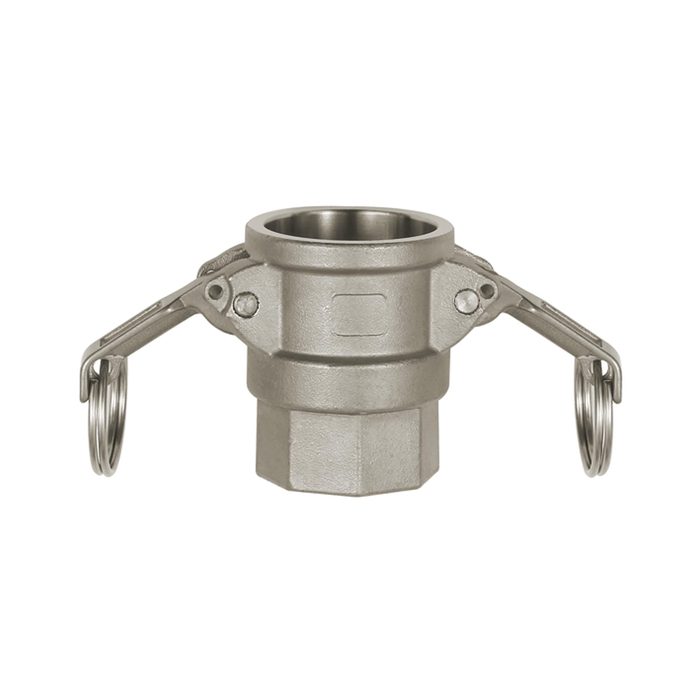

RIEGLER Kamlok quick-connect socket with IT, D type, 1.4401, G 3
Type number: 1114.30-ES
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
108121EAN :
4047322404556Category :
KAMLOK hose couplings & accessoriesWeight :
0.94 kgKamlok quick-connect socket with interior thread, D type, Stainless steel 1.4401, G 3, for plug Ø 92 mm, Pressure max. 16 bar
| Temperature range min. | -20 °C |
| Temperature range max. | 95 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| Thread | G 3 |
| for plug Ø | 92 mm |
| A | 131.8 mm |
| C | 84 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108116] RIEGLER Kamlok quick-connect socket with IT, D type, 1.4401, G 1](/web/image/product.template/192014/image_128/%5B108116%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20IT%2C%20D%20type%2C%201.4401%2C%20G%201?unique=814ff58)
|
Type number: 1114.10-ES |
17.65 € | |
![[108118] RIEGLER Kamlok quick-connect socket with IT, D type, 1.4401, G 1 1/2](/web/image/product.template/192016/image_128/%5B108118%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20IT%2C%20D%20type%2C%201.4401%2C%20G%201%201-2?unique=4ae6aed)
|
Type number: 1114.112-ES |
27.05 € | |
![[108117] RIEGLER Kamlok quick-connect socket with IT, D type, 1.4401, G 1 1/4](/web/image/product.template/192015/image_128/%5B108117%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20IT%2C%20D%20type%2C%201.4401%2C%20G%201%201-4?unique=274c749)
|
Type number: 1114.114-ES |
22.73 € | |
![[108119] RIEGLER Kamlok quick-connect socket with IT, D type, 1.4401, G 2](/web/image/product.template/192017/image_128/%5B108119%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20IT%2C%20D%20type%2C%201.4401%2C%20G%202?unique=7f7c590)
|
Type number: 1114.20-ES |
35.69 € | |
![[108120] RIEGLER Kamlok quick-connect socket with IT, D type, 1.4401, G 2 1/2](/web/image/product.template/192018/image_128/%5B108120%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20IT%2C%20D%20type%2C%201.4401%2C%20G%202%201-2?unique=e56a73e)
|
Type number: 1114.212-ES |
52.00 € | |
![[108115] RIEGLER Kamlok quick-connect socket with IT, D type, 1.4401, G 3/4](/web/image/product.template/192013/image_128/%5B108115%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20IT%2C%20D%20type%2C%201.4401%2C%20G%203-4?unique=cf100f7)
|
Type number: 1114.34-ES |
12.95 € | |
![[108122] RIEGLER Kamlok quick-connect socket with IT, D type, 1.4401, G 4](/web/image/product.template/192020/image_128/%5B108122%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%20with%20IT%2C%20D%20type%2C%201.4401%2C%20G%204?unique=bf8f75c)
|
Type number: 1114.40-ES |
98.13 € | |
