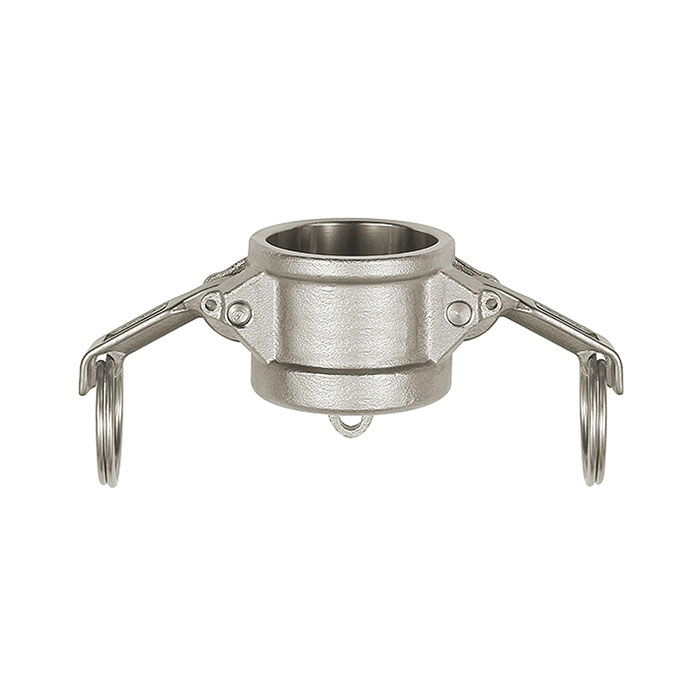

RIEGLER Kamlok closing cap, DC type, 1.4401, Size 3/4, for plug Ø 32
Type number: 1115.34-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
108123EAN :
4047322404570Category :
KAMLOK Hose Couplings & AccessoriesWeight :
0.14 kgRIEGLER Kamlok sealing cap for compressed air supply, max. 16 bar - Type 1115.34-ES
The RIEGLER Kamlok sealing cap, type DC, ES 1.4401, for plug Ø 32 mm enables quick connection using the Kamlock system. with NBR seals, oil and petrol resistant. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 95 °C. Quick coupling for a wide range of media.
Field of application
Typical areas of application: Chemicals, tank technology and food industry.
| Temperature range min. | -20 °C |
| Temperature range max. | 95 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| for plug Ø | 32 mm |
| BG | 45385 |
| A | 61.3 mm |
| C | 40 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108126] RIEGLER Kamlok closing cap, DC type, 1.4401, Size 1 1/2, for plug Ø 54](/web/image/product.template/192024/image_128/%5B108126%5D%20RIEGLER%20Kamlok%20closing%20cap%2C%20DC%20type%2C%201.4401%2C%20Size%201%201-2%2C%20for%20plug%20%C3%98%2054?unique=4a30cf9)
|
Type number: 1115.112-ES |
24.61 € | |

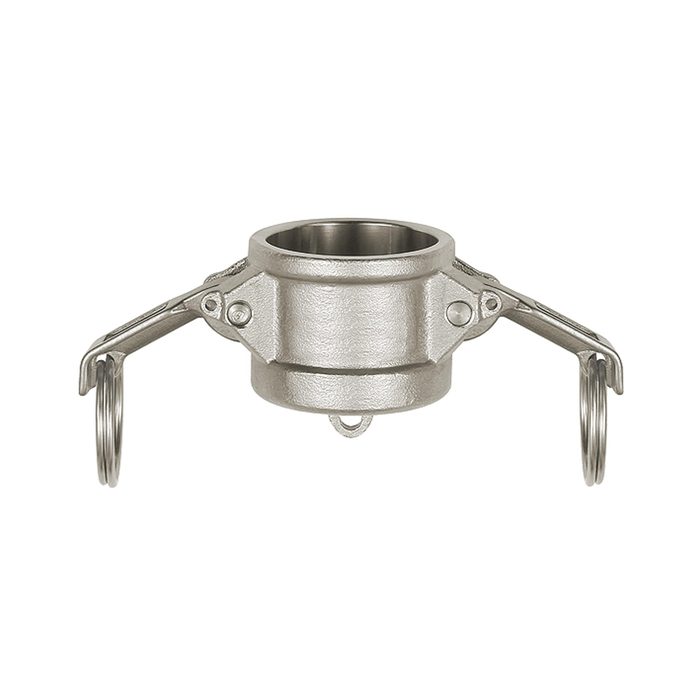

![[108125] RIEGLER Kamlok closing cap, DC type, 1.4401, Size 1 1/4, for plug Ø 46](/web/image/product.template/192023/image_128/%5B108125%5D%20RIEGLER%20Kamlok%20closing%20cap%2C%20DC%20type%2C%201.4401%2C%20Size%201%201-4%2C%20for%20plug%20%C3%98%2046?unique=d86078d)
|
