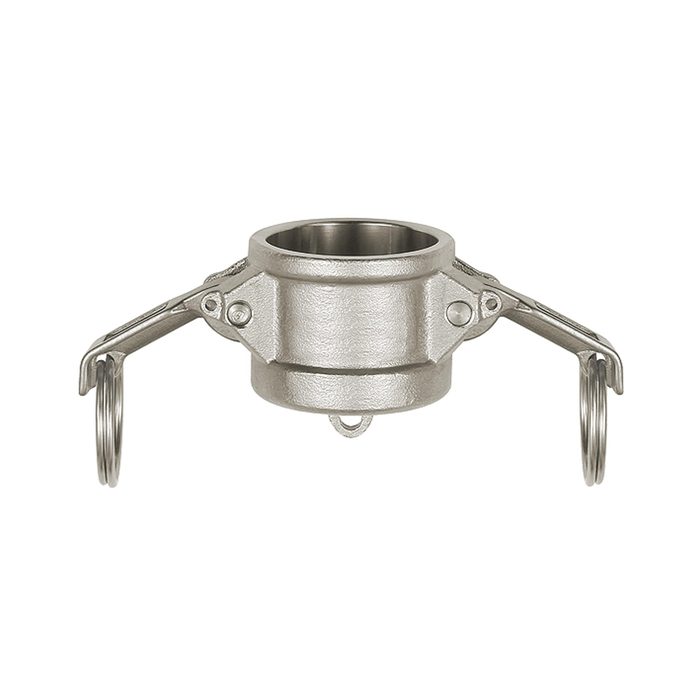

RIEGLER Kamlok closing cap, DC type, 1.4401, Size 1 1/2, for plug Ø 54
Type number: 1115.112-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
108126EAN :
4047322404600Category :
KAMLOK Hose Couplings & AccessoriesWeight :
0.43 kgRIEGLER Kamlok sealing cap for compressed air supply, max. 16 bar - Type 1115.112-ES
The RIEGLER Kamlok sealing cap, type DC, ES 1.4401, for plug Ø 54 mm enables quick connection using the Kamlock system. with NBR seals, oil and petrol resistant. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 95 °C. Quick coupling for a wide range of media.
Field of application
Typical areas of application: Chemicals, tank technology and food industry.
| Temperature range min. | -20 °C |
| Temperature range max. | 95 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| for plug Ø | 54 mm |
| BG | 1,5 |
| A | 87.4 mm |
| C | 55 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108125] RIEGLER Kamlok closing cap, DC type, 1.4401, Size 1 1/4, for plug Ø 46](/web/image/product.template/192023/image_128/%5B108125%5D%20RIEGLER%20Kamlok%20closing%20cap%2C%20DC%20type%2C%201.4401%2C%20Size%201%201-4%2C%20for%20plug%20%C3%98%2046?unique=d86078d)
|
Type number: 1115.114-ES |
23.76 € | |
![[108124] RIEGLER Kamlok closing cap, DC type, 1.4401, Size 1, for plug Ø 37](/web/image/product.template/192022/image_128/%5B108124%5D%20RIEGLER%20Kamlok%20closing%20cap%2C%20DC%20type%2C%201.4401%2C%20Size%201%2C%20for%20plug%20%C3%98%2037?unique=cd8a1cf)
|
Type number: 1115.10-ES |
12.34 € | |
![[108128] RIEGLER Kamlok closing cap, DC type, 1.4401, Size 2 1/2, for plug Ø 76.5](/web/image/product.template/192026/image_128/%5B108128%5D%20RIEGLER%20Kamlok%20closing%20cap%2C%20DC%20type%2C%201.4401%2C%20Size%202%201-2%2C%20for%20plug%20%C3%98%2076.5?unique=467e317)
|
Type number: 1115.212-ES |
32.90 € | |
![[108127] RIEGLER Kamlok closing cap, DC type, 1.4401, Size 2, for plug Ø 64](/web/image/product.template/192025/image_128/%5B108127%5D%20RIEGLER%20Kamlok%20closing%20cap%2C%20DC%20type%2C%201.4401%2C%20Size%202%2C%20for%20plug%20%C3%98%2064?unique=8b5144a)
|
Type number: 1115.20-ES |
30.70 € | |

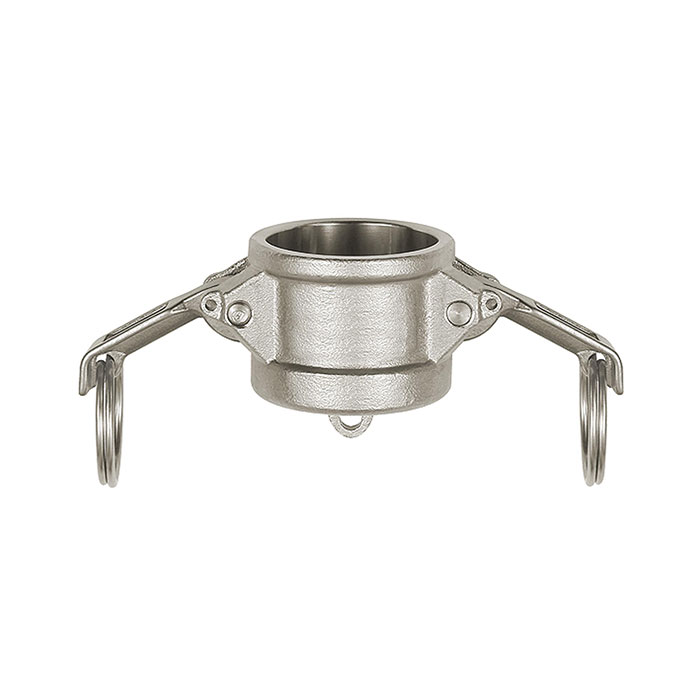

![[108123] RIEGLER Kamlok closing cap, DC type, 1.4401, Size 3/4, for plug Ø 32](/web/image/product.template/192021/image_128/%5B108123%5D%20RIEGLER%20Kamlok%20closing%20cap%2C%20DC%20type%2C%201.4401%2C%20Size%203-4%2C%20for%20plug%20%C3%98%2032?unique=26a37c1)
|
Type number: 1115.34-ES |
11.53 € | |
![[108129] RIEGLER Kamlok closing cap, DC type, 1.4401, Size 3, for plug Ø 92](/web/image/product.template/192027/image_128/%5B108129%5D%20RIEGLER%20Kamlok%20closing%20cap%2C%20DC%20type%2C%201.4401%2C%20Size%203%2C%20for%20plug%20%C3%98%2092?unique=99b6973)
|
Type number: 1115.30-ES |
49.71 € | |
![[108130] RIEGLER Kamlok closing cap, DC type, 1.4401, Size 4, for plug Ø 120](/web/image/product.template/192028/image_128/%5B108130%5D%20RIEGLER%20Kamlok%20closing%20cap%2C%20DC%20type%2C%201.4401%2C%20Size%204%2C%20for%20plug%20%C3%98%20120?unique=6e9f38e)
|
Type number: 1115.40-ES |
72.97 € | |
