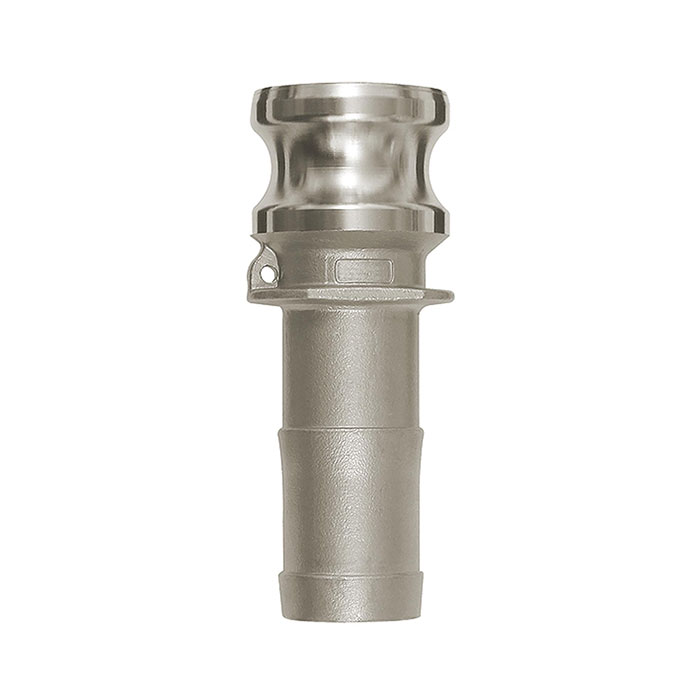

RIEGLER Kamlok quick-connect plug, Hose sleeve, E type, 1.4401, I.D. 38
Type number: 1118.112-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
108150EAN :
4047322404914Category :
KAMLOK hose couplings & accessoriesWeight :
0.33 kgKamlok quick coupling plug, hose nozzle, type E, ES 1.4401, LW 38, plug Ø 53 mm, max. pressure 16 bar, temp. -20 °C to 95 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 95 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| for inner hose Ø | 38 |
| Plug Ø | 53 mm |
| L | 112 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
