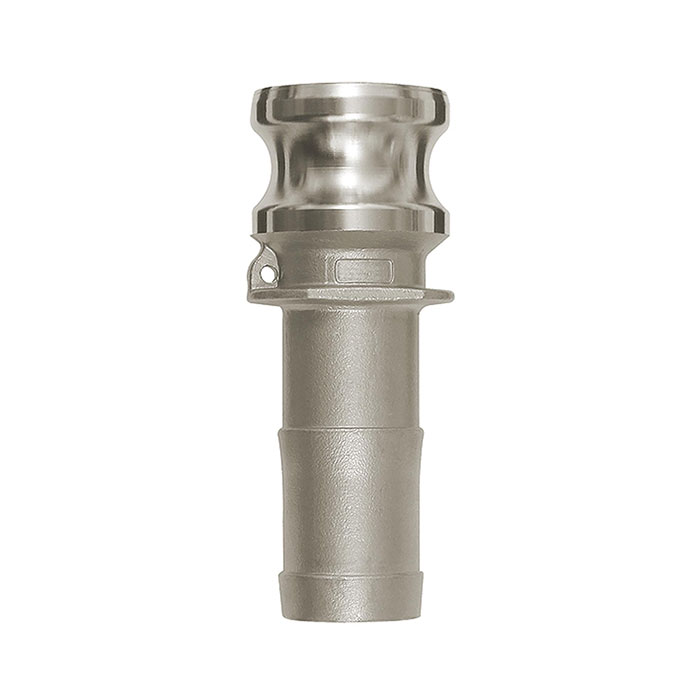

RIEGLER Kamlok quick-connect plug, Hose sleeve, E type, 1.4401, I.D. 50
Type number: 1118.20-ES
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
108151EAN :
4047322404921Category :
KAMLOK hose couplings & accessoriesWeight :
0.51 kgKamlok quick coupling plug, hose nozzle, type E, ES 1.4401, LW 50, plug Ø 63 mm, max. pressure 16 bar, temp. -20 °C to 95 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 95 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| for inner hose Ø | 50 |
| Plug Ø | 63 mm |
| L | 143 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108154] RIEGLER Kamlok quick-connect plug, Hose sleeve, E type, 1.4401, I.D. 100](/web/image/product.template/192052/image_128/%5B108154%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Hose%20sleeve%2C%20E%20type%2C%201.4401%2C%20I.D.%20100?unique=0056797)
|
Type number: 1118.40-ES |
95.33 € | |
![[108147] RIEGLER Kamlok quick-connect plug, Hose sleeve, E type, 1.4401, I.D. 19](/web/image/product.template/192045/image_128/%5B108147%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Hose%20sleeve%2C%20E%20type%2C%201.4401%2C%20I.D.%2019?unique=8304ced)
|
Type number: 1118.34-ES |
7.12 € | |
![[108148] RIEGLER Kamlok quick-connect plug, Hose sleeve, E type, 1.4401, I.D. 25](/web/image/product.template/192046/image_128/%5B108148%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Hose%20sleeve%2C%20E%20type%2C%201.4401%2C%20I.D.%2025?unique=5da38db)
|
Type number: 1118.10-ES |
9.46 € | |
![[108149] RIEGLER Kamlok quick-connect plug, Hose sleeve, E type, 1.4401, I.D. 32](/web/image/product.template/192047/image_128/%5B108149%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Hose%20sleeve%2C%20E%20type%2C%201.4401%2C%20I.D.%2032?unique=4d5fc7f)
|
Type number: 1118.114-ES |
15.80 € | |
![[108150] RIEGLER Kamlok quick-connect plug, Hose sleeve, E type, 1.4401, I.D. 38](/web/image/product.template/192048/image_128/%5B108150%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Hose%20sleeve%2C%20E%20type%2C%201.4401%2C%20I.D.%2038?unique=b9bfd0e)
|
Type number: 1118.112-ES |
19.35 € | |
![[108152] RIEGLER Kamlok quick-connect plug, Hose sleeve, E type, 1.4401, I.D. 63](/web/image/product.template/192050/image_128/%5B108152%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Hose%20sleeve%2C%20E%20type%2C%201.4401%2C%20I.D.%2063?unique=4084a5e)
|
Type number: 1118.212-ES |
42.40 € | |
![[108153] RIEGLER Kamlok quick-connect plug, Hose sleeve, E type, 1.4401, I.D. 75](/web/image/product.template/192051/image_128/%5B108153%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Hose%20sleeve%2C%20E%20type%2C%201.4401%2C%20I.D.%2075?unique=f100a17)
|
Type number: 1118.30-ES |
60.65 € | |
