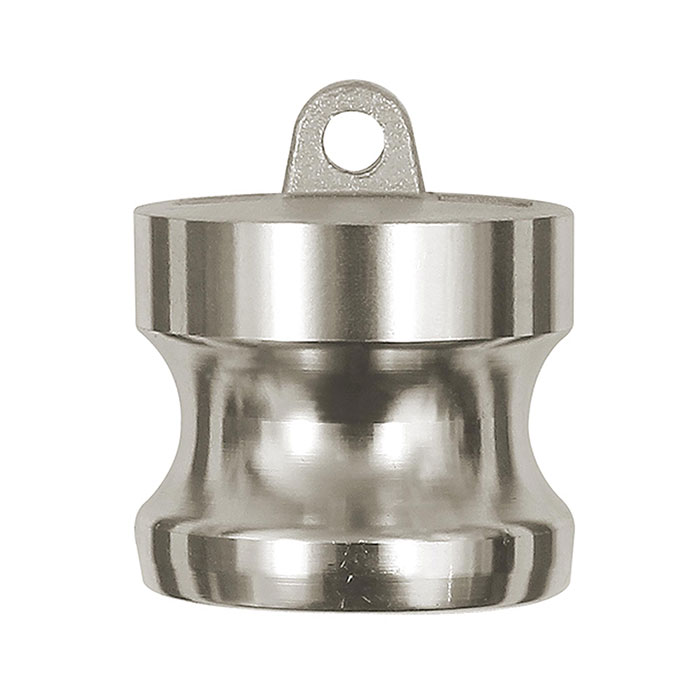

RIEGLER Kamlok cap plug, DP type, St. steel 1.4401, Size 1, Plug Ø 37
Type number: 1119.10-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
108156EAN :
4047322404976Category :
KAMLOK Hose Couplings & AccessoriesWeight :
0.09 kgRIEGLER Kamlok plug for compressed air supply, max. 16 bar - Type 1119.10-ES
The RIEGLER Kamlok plug, type DP, ES 1.4401, BG 1, plug Ø 37 enables quick connection using the Kamlock system. with NBR seals, oil and petrol resistant. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 95 °C. Quick coupling for a wide range of media.
Field of application
Typical areas of application: Chemicals, tank technology and food industry.
| Temperature range min. | -20 °C |
| Temperature range max. | 95 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| BG | 1 |
| Plug Ø | 37 mm |
| A | 36.6 mm |
| C | 42 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108158] RIEGLER Kamlok cap plug, DP type, St. steel 1.4401, Size 1 1/2, Plug Ø 53](/web/image/product.template/192056/image_128/%5B108158%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20St.%20steel%201.4401%2C%20Size%201%201-2%2C%20Plug%20%C3%98%2053?unique=4a7af26)
|
Type number: 1119.112-ES |
11.95 € | |
![[108157] RIEGLER Kamlok cap plug, DP type, St. steel 1.4401, Size 1 1/4, Plug Ø 46](/web/image/product.template/192055/image_128/%5B108157%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20St.%20steel%201.4401%2C%20Size%201%201-4%2C%20Plug%20%C3%98%2046?unique=ef6fa2a)
|
Type number: 1119.114-ES |
8.20 € | |
![[108160] RIEGLER Kamlok cap plug, DP type, St. steel 1.4401, Size 2 1/2, Plug Ø 76](/web/image/product.template/192058/image_128/%5B108160%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20St.%20steel%201.4401%2C%20Size%202%201-2%2C%20Plug%20%C3%98%2076?unique=d905d91)
|
Type number: 1119.212-ES |
24.04 € | |
![[108159] RIEGLER Kamlok cap plug, DP type, St. steel 1.4401, Size 2, Plug Ø 63](/web/image/product.template/192057/image_128/%5B108159%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20St.%20steel%201.4401%2C%20Size%202%2C%20Plug%20%C3%98%2063?unique=c2daffd)
|
Type number: 1119.20-ES |
17.65 € | |

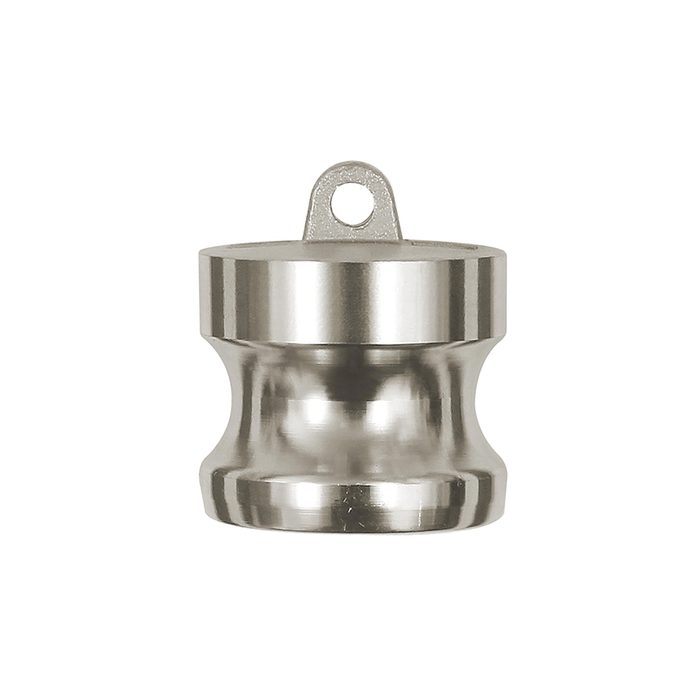

![[108155] RIEGLER Kamlok cap plug, DP type, St. steel 1.4401, Size 3/4, Plug Ø 32](/web/image/product.template/192053/image_128/%5B108155%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20St.%20steel%201.4401%2C%20Size%203-4%2C%20Plug%20%C3%98%2032?unique=b41aad3)
|
